RA Mail 3.1 impacts the deployment of the MAIL Agent 21.0.1

Products

• CA Automic Workload Automation - Automation Engine

Issue/Introduction

On a System that hosts a RA MAIL 3.1 already  (provided by partner) a MAIL Agent of the new generation gets deployed.

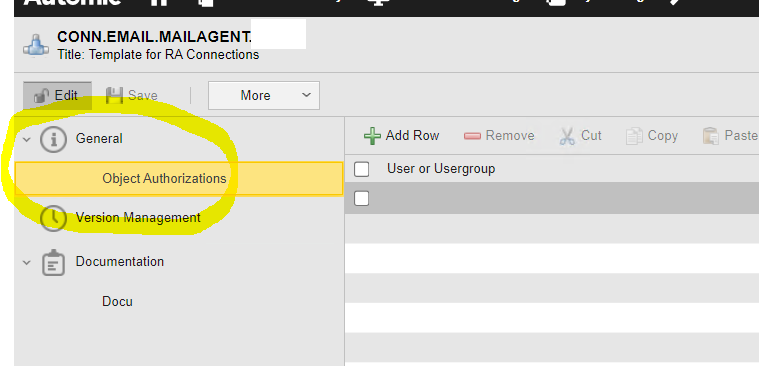

The templates of the connector of the new Mail agent 21.0.1 is corrupted. The panel with the SMTP Parameter is missing:

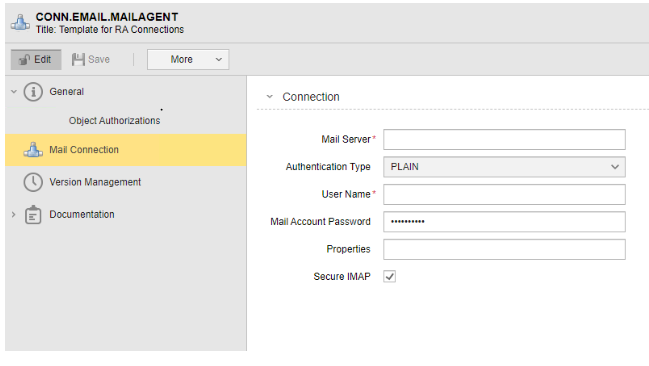

Compared to a healthy Connector Object coming with the 21.0.1 Mail Agent, that had been deployed on a virgin system


More details that can be present when this problem occur:

But on the impacted system we found only the RA 3.1 plugin in AWI listing, the equivalent plugin for 21.0.1 can be missing

The Store object UC_ECC_PLUGINS should not contain

Environment

AE 21.0.8 HF1
RA MAIL Agent 3.1
Mail Agent 21.0.1

Cause

This is a bug in the 21.0.1 Mail Agent

Resolution

This bug is fixed in version 21.0.2 of the MAIL Agent. This Module should be displayed.

Hint:

-- Before deploying this new Module it is recommend to delete manually the Entry of the 21.0.1 Agent in the UC_ECC_PLUGINS store object and to delete the template of the 21.0.1 connector object.
-- To have the AWI plugin list updated, and these changes taken into account, AWI session should be closed.

Additional Information

Related bug TIcket
Bug ID: DE584488
Bug Title: Mail Agent is missing configuration options in AWI
