Portlet Multiselect Filter Works Only When More Than One Value Is Selected

Products

• Clarity PPM On Premise
• Clarity PPM SaaS

Issue/Introduction

The filter only works when selecting 2 or more values, however fails when only one value is selected.
The NSQL uses INLINE, which is equivalent of IN in example query: select columns from table where column1 IN ('x','y')

STEPS TO REPRODUCE:

1. Create an NSQL query:

SELECT DISTINCT
  @SELECT:DIM:USER_DEF:IMPLIED:PROJECT:inv.id:KEY_ID@,
  @SELECT:DIM_PROP:USER_DEF:IMPLIED:PROJECT:inv.name:PROJECT_NAME@
FROM
  inv_investments inv
WHERE

     EXISTS (SELECT 1
             FROM PRJ_OBS_UNITS_FLAT OBSF
             INNER JOIN PRJ_OBS_ASSOCIATIONS OBSA ON OBSF.UNIT_ID = OBSA.UNIT_ID
             WHERE OBSA.TABLE_NAME = 'SRM_PROJECTS'
             AND @WHERE:PARAM:USER_DEF:INTEGER_INLINE_LIST:OBSF.BRANCH_UNIT_ID:OBS_ID@
             AND OBSA.RECORD_ID = inv.ID)
AND @FILTER@

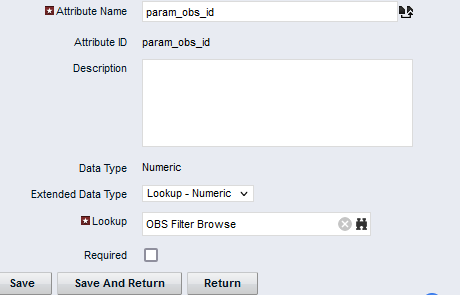

Click the Attributes tab and click on the: param_obs_id



Set extended Data Type = Lookup - Numberic

Set Lookup = OBS Filter Browse (OBS_BROWSE_FLT_ALL)

2. Create a grid portlet

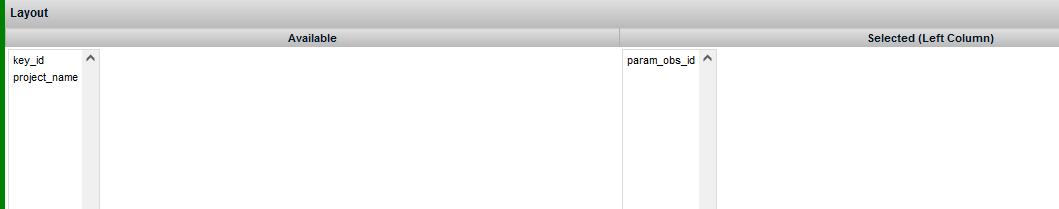

3. Configure the List  Filter > Layout  section inlcude : param_obs_id

Save and Return.


4. Configure the portlet to display and test the filtering.

5. Select only one value from the OBS Filter Browse


Expected: Result should display



Actual: Error appears

Error 500 - Internal Server Error. The server could not retrieve the document due to server-configuration or other technical problems. Contact your site administrator.

APP error appears:
ERROR 2023-12-14 20:34:09,513 [http-nio-5432-exec-4] dal.NSQLClient (clarity:user:session:npt.gridFilter) Unable to retrieve NSQL cube.  Exception was thrown.
java.lang.ClassCastException: class java.lang.Long cannot be cast to class java.lang.String (java.lang.Long and java.lang.String are in module java.base of loader 'bootstrap')

Environment

16.2.0 and below

Resolution

This is reported as DE78899 and is resolved in release 16.2.1
