How to connect to FTP server that is using non-standard port via ProxySG.

Products

• SG-S200
• ProxySG Software - SGOS

Issue/Introduction

We would like to connect from a client using FTP native connection to FTP server that is using non-standard port via ProxySG.

FTP Server: non-standard port:10080

We would like to know how to configure ?

Environment

Release : 7.3.x

Resolution

Settings are required both ProxySG and FTP client.

[ProxySG Setting on WebUI]
1.Set FTP proxy as SERVICE ACTION='Intercept'
Configuration->Proxy Services-Proxy Services->FTP

2.Set IP and port of FTP server in Forwarding Hosts
Configuration->Network->Forwarding Hosts

3.Add Forwarding rule in Forwarding Layer on Visual Policy Manager.

[Client Setting]
Example when use FFFTP.
1.Set ProxySG's IP in Firewall setting.
Option->Firewall

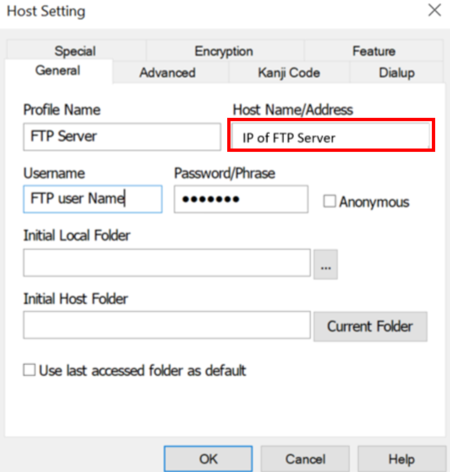

2.Set Host Setting
File->Host Setting->New Host

3.After selecting FTP Server from the Host List, press [Connect]
