Issue/Introduction

How to download maintenance with CAUNZIP.

Resolution



This is the procedure to download PTFs using CAUNZIP. In this example IDMS is being used.

1) Login to the Broadcom.com support

    portal and follow these steps:

Select My Downloads and then search for the product. In this example IDMS was selected.

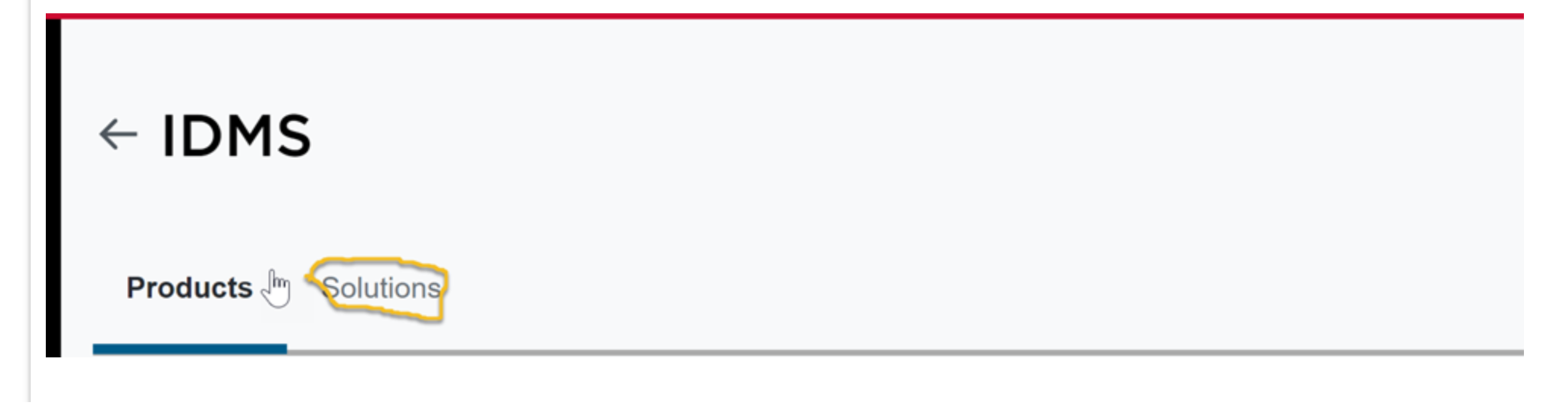

Select solutions.



Select the release.



Select "Do you want a complete package for all" if you want all pre/coreqs to be included. Optionally you can also select a date. Then Start Download.





This will download the package to your PC or FTP to the mainframe. It could also be FTP’ed from the PC to the mainframe.

Package 28016381.zip is downloaded to the PC and optionally be directly FTP'ed to the mainframe. It can also be FTP'ed from the PC to the mainframe.

This is the CAUNZIP JCL:

....... ================================ T O P =================================
 000001 //CAUNZIP  JOBCARD
 000003 //*===================================================================*
 000004 //* THIS SAMPLE JOB CAN BE USED TO EXTRACT ELEMENTS FROM THE ZIP FILE *
 000005 //* YOU DOWNLOADED FROM THE CA FTP SERVER.  BEFORE SUBMITTING:        *
 000006 //* 1. CHANGE 'CALIB' TO THE NAME OF THE LOAD LIBRARY WHERE THE       *
 000007 //*    CAUNZIP UTILITY RESIDES.                                       *
 000008 //* 2. CHANGE 'SCARTX.ZIP' TO THE ZIP FILE NAME                       *
 000009 //* 3. CHANGE '/YOUR/ZOS UNIX/PATH/' TO THE LOCATION ON YOUR SYSTEM   *
 000010 //*    THAT YOU DOWNLOADED THE ZIP FILE TO.                           *
 000011 //* 4. CHANGE '/YOUR/JAVA/PATH/' TO A VALID JAVA 5, 6, OR 7 PATH, FOR *
 000012 //*    EXAMPLE:   /USR/LPP/JAVA/J6.0/                                 *
 000013 //* 5. SUPPLY A JOB STATEMENT BEFORE THIS SAMPLE JCL.                 *
 000014 //*===================================================================*
 000015 //OUTCLASS SET OUTCLASS='*'
 000016 //CAUNZIP EXEC PGM=IKJEFT01,DYNAMNBR=10,REGION=0M
 000017 //ZIPRPT   DD SYSOUT=&OUTCLASS,RECFM=FBA
 000018 //SYSTSPRT DD SYSOUT=&OUTCLASS
 000019 //SYSPRINT DD SYSOUT=*
 000020 //TMPPTF   DD SYSOUT=*
 000021 //TMPHLD   DD SYSOUT=*
 000022 //STDOUT   DD SYSOUT=&OUTCLASS
 000023 //STDERR   DD SYSOUT=&OUTCLASS
 000024 //SYSTSIN DD *
 000025 CAUNZIP ZIPPATH(/plex/u/users/PTFS/RCVORDER/)  -
 000026 ZIPFILE(28016381.ZIP) -
 000027 JAVAPATH(/C/java/java64bt/v8r0m0/usr/lpp/java/J8.0_64)
 000028 /*
 ...... ============================= B O T T O M ==============================

Path /plex/u/users/PTFS/RCVORDER/ was pre created to store 28016381.zip therefore prior to this 28016381.zip was FTP'ed to it.

The output from the CAUNZIP will supply you with the receive JCL. This is an example:

000140 //S010   EXEC PGM=GIMSMP,PARM='PROCESS=WAIT',DYNAMNBR=120
000141 //SMPCSI   DD DISP=SHR,DSN=your.CSI
000142 //SMPOUT   DD SYSOUT=*
000143 //SMPRPT   DD SYSOUT=*
000144 //SYSPRINT DD SYSOUT=*
000145 //SMPJHOME DD PATHDISP=KEEP,
000146 //   PATH='/C/java/java64bt/v8r0m0/usr/lpp/java/J8.0_64/'
000147 //SMPNTS   DD PATHDISP=KEEP,
000148 //   PATH='/plex/u/users/PTFS/RCVORDER/28016381/28016381/'
000149 //SMPCNTL  DD *
000150    SET BOUNDARY(GLOBAL) .
000151    RECEIVE FROMNTS(SMPNTS)
000152       SYSMODS
000153       HOLDDATA
000154       DELETEPKG
000155       .
000156 /*

You only need to replace your.CSI with the actual CSI and execute it.

This was the apply check in this example for IDMS:

003101 //APPLY    EXEC PGM=GIMSMP,REGION=0M,PARM='DATE=U'
003102 //SMPLOGA  DD SYSOUT=*
003103 //SMPCSI   DD DISP=SHR,DSN=HLQ.LATEST.CSI
003104 //SMPCNTL  DD *
003105   SET BOUNDARY(CAIT18).
003106   APPLY CHECK SYSMOD
003107    FORFMID (
003110       CAGJJ00
003111       CAGJJ01 )
003135   BYPASS(HOLDSYSTEM HOLDERROR).
