Gen TISRVMSL multiple socket error messages occur under z/OS 2.5 or higher version

Products

• Gen
• Gen - Run Time Distributed

Issue/Introduction

After upgrading to z/OS 2.5 or z/OS 3.1 seeing problems with the Gen Multi Sockets CICS Listener TISRVMSL and its error handling.
After some time since the TISRVMSL was started, these symptoms may start to appear:

1. The server-side CICS MSGUSR log will contain many messages of the form:
TISRVMSL TIML TASK=######## MM/DD/YYYY HH:MM:SS START TRANSACTION FAILED FOR TRAN Gen_Server_Trancode
TISRVMSL TIML TASK=######## MM/DD/YYYY HH:MM:SS CICS ERROR, RESPONSE=00000069, RESP2=00000008

TISRVMSL TIML TASK=######## MM/DD/YYYY HH:MM:SS LISTENER TAKESOCKET BACK FAILED FOR SERVER Gen_Server_Trancode
TISRVMSL TIML TASK=######## MM/DD/YYYY HH:MM:SS SOCKET ERROR, RETCODE=-0000001, ERRNO=00001002

TISRVMSL TIML TASK=######## MM/DD/YYYY HH:MM:SS ACCEPT CALL FAILED
TISRVMSL TIML TASK=######## MM/DD/YYYY HH:MM:SS SOCKET ERROR, RETCODE=-0000001, ERRNO=00001002

NOTE: RESPONSE=00000069 means USERIDERR and RESP2=00000008 means the USERID is unknown,  thus the above error situation is for a security failure.


2. Client connections may hang/loop/spin when a security violation occurs instead of returning the expected message "TIRM621E: Error creating semaphore, can't access server"
Also, the MSGUSR log does not contain the expected message "GIVESOCKET NOT TAKEN".
(Gen EDGE Community post: Security violations behavior has changed in GUI client-server)

Environment

Gen 8.6 COBOL/CICS Distributed Process servers using TISRVMSL under z/OS 2.5 or higher version.

Cause

There is a known TISRVMSL problem that only seems to get exposed with TCP/IP changes under z/OS 2.5 or higher version.
The TISRVMSL error handling of conditions like security violations/failures does not release the current socket and eventually, the available socket pool is exhausted.

Resolution

Workaround

Recycle the TISRVMSL

Resolution

Apply Gen 8.6 PTF LU08295 ("TISRVMSL LOOPS/DOES NOT PROCESS SOCKETS WHEN HANDLING ERRORS")
NOTE: This PTF only affects TISRVMSL, as it fixes a problem with socket management handling when sending the error response. It does not impact the actual Gen servers so the PTF should be relatively easy to deploy.

When updating the TISRVMSL in required CICS region:

1. Stop the TISRVMSL listener with CICS command: EZAO,STOP,LISTENER(TRANSID)
   NOTE: The TRANSID is the transaction identifier defined for the TISRVMSL in the EZACONFG file and CICS definition per the Gen doc. page Communications and Middleware. So the value may be TIML, but it may also have been defined differently.
   The TRANSID can also be found using command: CEMT I TRAN(*) PRO(TISRVMSL)


2. Deploy the new version of TISRVMSL from SMP/E target to the correct CICS DFHRPL library (Librarydsn) and NEWCOPY it.


3. Start the TISRVMSL listener with CICS command: EZAO,START,LISTENER(TRANSID)

Additional Information

If in doubt whether the PTF has already been applied the current TISRVMSL version can be checked as follows:

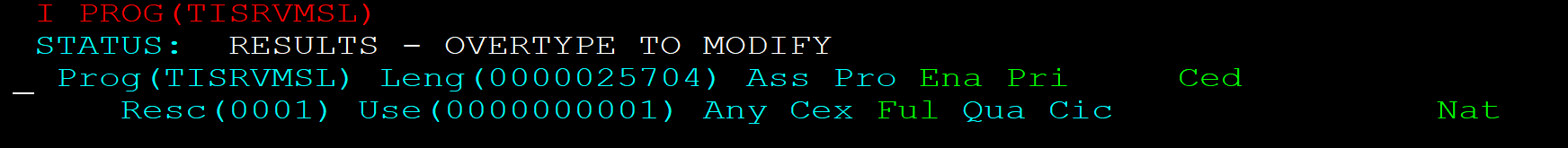

1. Locate the relevant CICS DFHRPL library using the CICS command: CEMT I PROG(TISRVMSL)

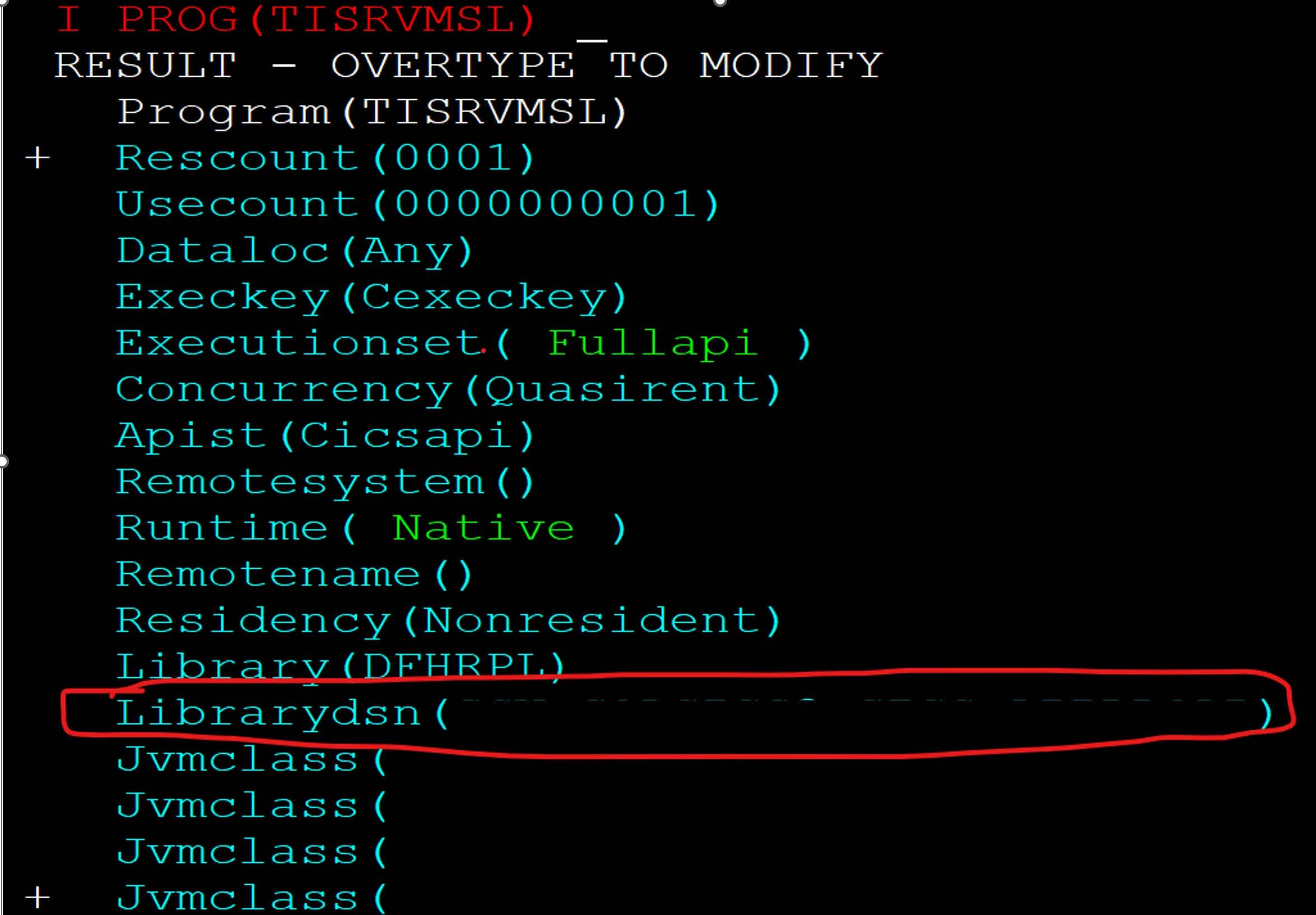

   Put cursor beside the Prog(TISRVMSL) and hit enter; scroll and find Librarydsn  e.g.

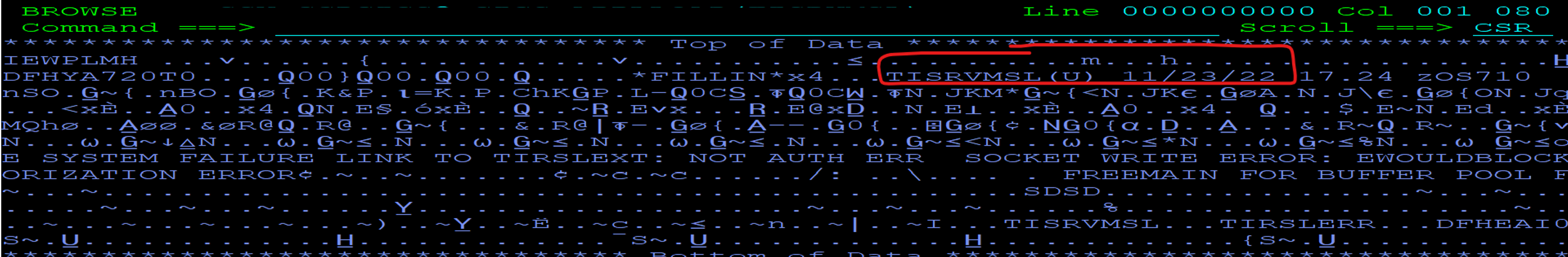

2. In Librarydsn locate the TISRVMSL load member and browse it. Look for string TISRVMSL(U) and check the date after it. If PTF LU08295 (or later PTF containing the same fix) is applied the date should be 11/23/22 or later. For example:
