Updating Domain Schema in Jaspersoft 8.1.1

Products

• Clarity PPM On Premise
• Clarity PPM SaaS

Issue/Introduction

With Jaspersoft 8.1.1 Update domain schema page - will no more be supported, alternate approach is documented in resolution section

Environment

Release : 16.1.1 onwards with Jaspersoft 8.1.1

Resolution

Alternative approach for 'Update Domain Schema' Menu Link which was available in 7.8.1 and prior release

When user tries to export and import a Report/ Dashboard from two different server below are steps to be followed:

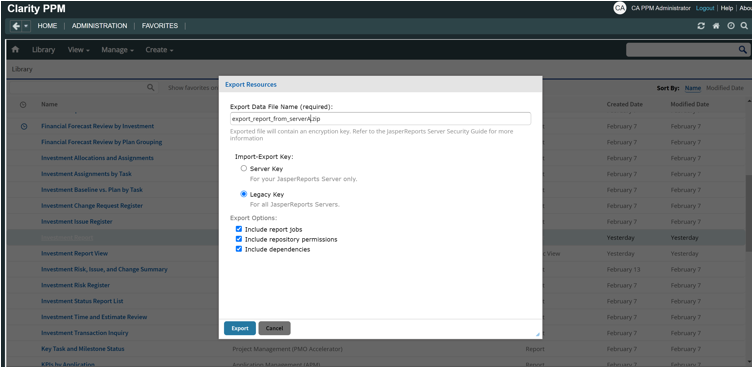

1. 1. 1. 1. From Server A, Export the Report with 'Dependencies' and using Legacy Key
            •
         2. Edit the Dependent Domain, and Export the Domain Design and Save the XML file
         3. In Server B, Navigate to Home →Manage → Organization → Import
            •
         4. Choose the Exported file in Step 1 with Legacy Key
         5. Navigate to Domains and edit the Domain
            •
            • Edit Domain shows Server A DWH schema, which is broken. Click on Confirm and Delete Items.
         6. Click on 'Import Design' and select the XML saved in the Step 2 and upload
            •
            • Upload Domain Design
            •
         7. Now Click on Save Domain
