Unable to generate policy XML for item Invalid object name 'Inv_Software_Update'.

Products

• IT Management Suite
• Patch Management Solution

Issue/Introduction

You may start experiencing a situation where security updates are failing to be created after a differential hierarchy replication is completed.  Upon investigation of the Symantec Management Platform (SMP) logs, you notice many red errors.  The following is one example of an error you may witness:

Unable to generate policy XML for item:

Invalid object name 'Inv_Software_Update'.

Environment

Release: 8.x Hierarchy Environment

Cause

Dataclass on the parent SMP was at one point deleted, and while restored, is still in the hierarchysingulartask table.  With the Data class being in the HierarchySingularTask as a Delete, every Replication cycle will cause it to be deleted as Replication tries to push changes down the hierarchy.

Resolution

In this particular situation, there was no repair of the Patch Management Solution.

NOTE: Repairing Patch Management would replace the Import / Export steps below.  Deleting rows from HierarchySingularTask needs to occur so that the replication cycle will not case the Inv_Software_Update table to be deleted on the child NSs.



To verify this issue

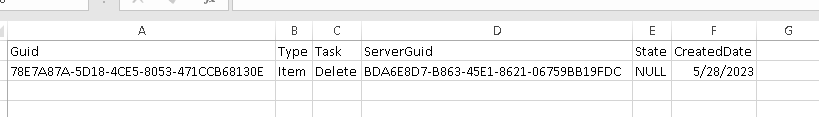

Run the following SQL query against the Parent SMP's database:  select * from HierarchySingularTask where Guid = '78e7a87a-5d18-4ce5-8053-471ccb68130e'

Notice that the Task column shows Delete.  If so, this is the problem.

To resolve this issue:

On the Parent SMP server:

• • Run the following query to remove the Deletion from happening:


    delete hst from HierarchySingularTask hst
    join vItem vi on vi.Guid = hst.Guid
    where vi.Guid is not null

  • Navigate to:  Settings > All Settings > Notification Server > Resource and Data Class Settings > Data Classes > Software Management > Patch Management > Global
    Highlighted the Software Update DataClass, right-click > Export; save the file

On the Child SMP server:

• • Imported the saved Software Update DataClass by opening the console and navigating to:  Settings > All Settings > Notification Server > Resource and Data Class Settings > Data Classes > Software Management > Patch Management > Global
  • Right-click and choose Import to import the previously exported XML file

After following these steps, when the differential hierarchy runs again, the data class will no longer be deleted on the child SMP.  It may be necessary to recreate some software update policies on the Parent.
