Not all of a field is shown when using Endevor Quick Edit with CCOLS

Products

• Endevor

Issue/Introduction

When using Endevor Quick Edit and the function CCOLS to rearrange the screen layout, the last field (at the Right) is not totally shown. A few characters get truncated. Then when scrolling the screen to the right the field is not shown so these truncated characters don't show up.

Environment

Release : 19.0

Cause

It is likely that the FIXED COLUMNS plus the last field shown is too long. In the CCOLS data it is likely that the fields you included above the line "!******FIXED COLUMNS ABOVE***********************  ",  plus the field in that is truncated is longer than the screen width.

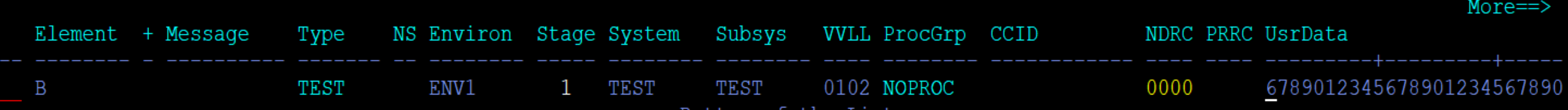

For example: (The field USER DATA is 40 Characters long)

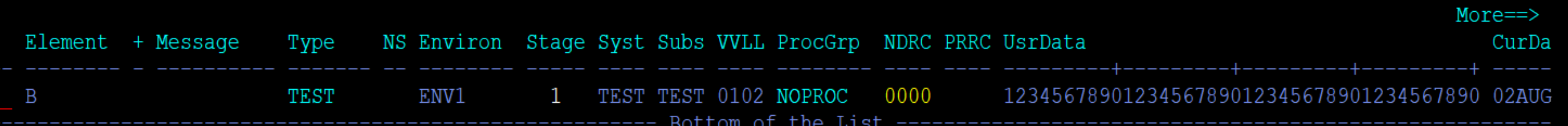

this is after a scroll right:

 The width(number of characters) of your screen depends on your screen resolution.



Resolution

This can be resolved in one of two ways:

1) Adjust the fixed portion of the screen. Ensure that the remaining characters after the fixed portion allows for the longest field(after the fixed portion) to be displayed.

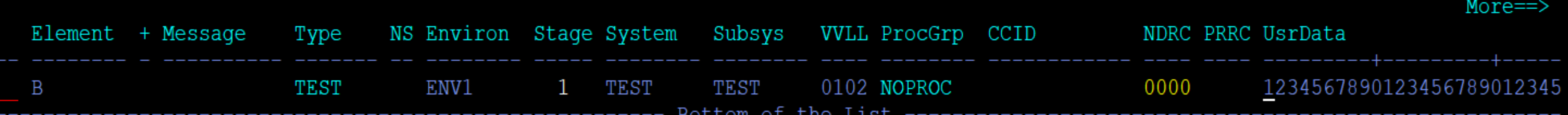

For example:



2) Scroll by field to the right. Using my example I can put my cursor on the UserData field and scroll right.(PF11).

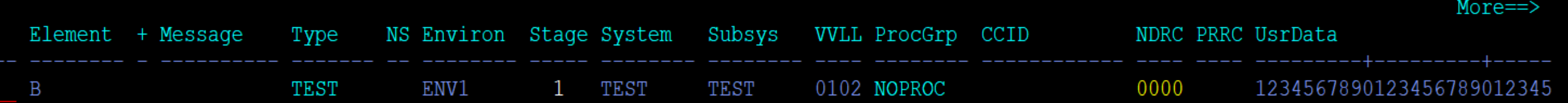

for example:

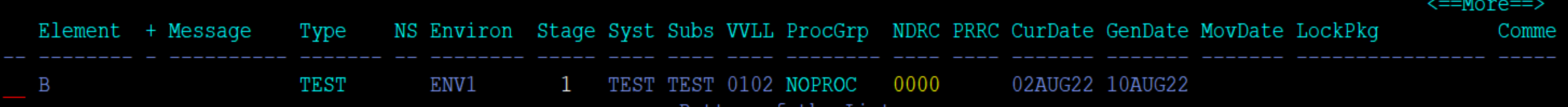

then scroll right with the cursor on the userdata field
