PAM-CMN-5360: Failed to get Azure API access token. invalid_grant

Products

• CA Privileged Access Manager (PAM)

Issue/Introduction

We want to integrate our CA PAM appliances to Azure AD for User authentications, we have tried to register a new app in Azure for this but struggling to configure this in CA PAM appliance,

The following error gets displayed in the tomcat logs for this

23-06-06T12:41:23.901+0000 SEVERE [TP1] com.ca.pam.rest.AzureConnectionService.getSubscriptions Call to Gatekeeper service controller failed: PAM-CMN-5360: Failed to get Azure API access token. invalid_grant : The user or administrator has not consented to use the application with ID '<application id>' named '<Account>'. Send an interactive authorization request for this user and resource.
Trace ID: bb7886f6-33e9-4c51-a59c-475938157702
Correlation ID: f3657d29-fd17-45ff-9ec6-8d55b16ae28f
Timestamp: 2023-06-06 12:41:23Z



Environment

Release : 4.1.3 and below

Cause

There was a documentation bug which was misleading in its meaning, so this one step was skipped

Resolution

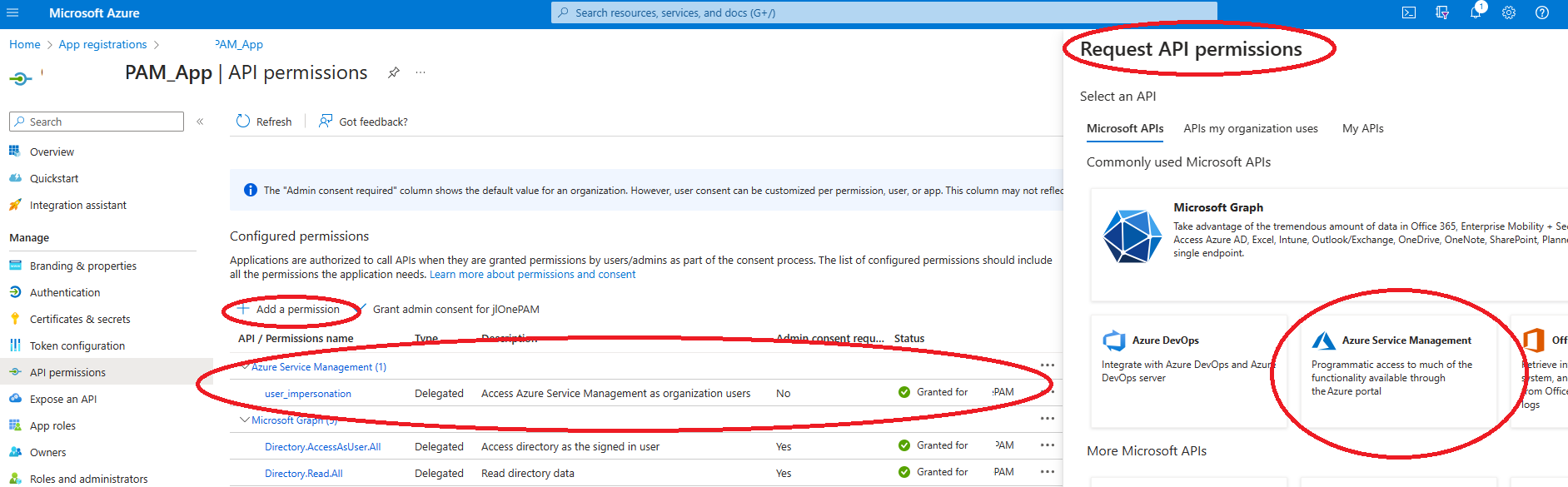

• Open the App that you created.
• In the

  Manage

   menu, select

  API Permissions

  .
• On the API Permissions panel, select

  +Add a permission

  .
• On the Request API Permissions page, select

  Azure Service Management

  .
• Select

  Delegated permissions

  .
• Under

  Select permissions

  , type to search for "directory."
• In the search results, select

  user_impersonation

   (Access Azure Service Management as organization users (preview)).
• Select

  Add Permissions

  .
• Under

  Grant consent

  , select

  Grant admin consent for [your directory]

  .
• Select

  Yes

  .
• Close

  API permissions

  .
• On the application

  Manage

  menu, select

  Authentication

  .
• Scroll down to

  Default client type

  . Select

  Yes

  .
• Select

  Save

  .
