How to tell which utilities are enabled or disabled within a utility model such as the @DEFAULT model using RC/Migrator
Article ID: 26648
Updated On:
Products
Issue/Introduction
When analyzing a RC/Migrator for Db2 for z/OS (RCM) strategy a utility model is specified, for example @DEFAULT.
This identifies the utilities (Load, Unload, Copy, Check, Reorg) that are enabled for use during strategy analysis.
The information below illustrates how to enable or disable a utility.
Resolution
Users can update the @DEFAULT model or template the @DEFAULT model to choose Fast Load by following these steps:
1. Select RC/Migrator from the DB2 Tools Main Menu
2. Select Option 0 (Profile)
3. Select Option 6 (Utility Model Services)
4. Place a 'U' by the model to be updated.
5. To select FAST LOAD place an 'X' in the CMD column next to FLOAD. The 'X' works as a toggle, only 1 LOAD utility can be enabled at a time.

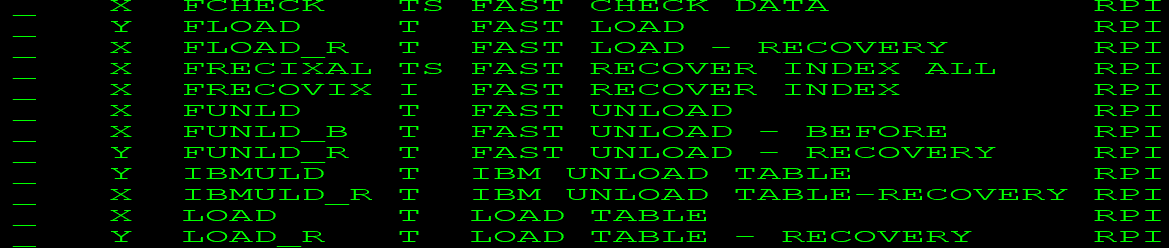

The SYM column will show a 'Y' if the utility is enabled, and an 'X' if it is disabled.
_ X FCHECK TS FAST CHECK DATA RPI
X X FLOAD T FAST LOAD RPI
_ X FLOAD_R T FAST LOAD - RECOVERY RPI
6. After placing an 'X' next to FLOAD, message RO021I confirms FLOAD is now enabled and LOAD is disabled. There is a 'Y' next to FLOAD and an 'X' next to LOAD:
RO021I Utility FLOAD activated. Utility LOAD excluded.
Additional Information
Documentation on Model Services can be found in the RC/Migrator Guide under Utility Model Services:
