The PAM processes triggered from SDM are not running after moving the PAM database and reconfigure to point to the new database server

Products

• CA Process Automation Base
• CA Service Management - Service Desk Manager
• CA Service Desk Manager
• CA Service Desk Manager

Issue/Introduction

After moving the PAM database and re-configure to point to the new database server, the processes triggered from SDM are not running.

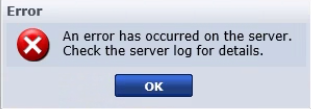

PAM UI shows the following error: An error has occurred on the server. Check the server log for details.

c2o.log shows the following:

ERROR [com.optinuity.c2o.persistence.RuntimeDBHibernateSessionHandler] [eportingManager] Failed to create Hibernate session
org.hibernate.InvalidMappingException: Could not parse mapping document from resource C2OTelemetryCustomerDetails.hbm.xml
    at org.hibernate.cfg.Configuration.addResource(Configuration.java:569)
    at com.optinuity.c2o.persistence.RuntimeDBHibernateSessionHandler.<init>(RuntimeDBHibernateSessionHandler.java:162)
    at com.optinuity.c2o.persistence.RuntimeDBHibernateSessionHandler.getInstance(RuntimeDBHibernateSessionHandler.java:221)
    at com.optinuity.c2o.reporting.ReportingManager.processQueryStoreData(ReportingManager.java:1245)
    at com.optinuity.c2o.reporting.ReportingManager.startReporterProcess(ReportingManager.java:1012)
    at com.optinuity.c2o.reporting.ReportingManager.access$500(ReportingManager.java:91)
    at com.optinuity.c2o.reporting.ReportingManager$2.run(ReportingManager.java:307)
Caused by: org.hibernate.PropertyNotFoundException: field [segmentIdentified] not found on com.optinuity.c2o.bean.telemetry.C2OTelemetryCustomerDetails
    at org.hibernate.property.DirectPropertyAccessor.getField(DirectPropertyAccessor.java:112)
    at org.hibernate.property.DirectPropertyAccessor.getField(DirectPropertyAccessor.java:104)
    at org.hibernate.property.DirectPropertyAccessor.getGetter(DirectPropertyAccessor.java:127)
    at org.hibernate.util.ReflectHelper.getter(ReflectHelper.java:83)
    at org.hibernate.util.ReflectHelper.reflectedPropertyClass(ReflectHelper.java:71)
    at org.hibernate.mapping.SimpleValue.setTypeUsingReflection(SimpleValue.java:276)
    at org.hibernate.cfg.HbmBinder.createProperty(HbmBinder.java:2164)
    at org.hibernate.cfg.HbmBinder.createClassProperties(HbmBinder.java:2141)
    at org.hibernate.cfg.HbmBinder.createClassProperties(HbmBinder.java:2031)
    at org.hibernate.cfg.HbmBinder.bindRootPersistentClassCommonValues(HbmBinder.java:359)
    at org.hibernate.cfg.HbmBinder.bindRootClass(HbmBinder.java:273)
    at org.hibernate.cfg.HbmBinder.bindRoot(HbmBinder.java:144)
    at org.hibernate.cfg.Configuration.add(Configuration.java:669)
    at org.hibernate.cfg.Configuration.addInputStream(Configuration.java:504)
    at org.hibernate.cfg.Configuration.addResource(Configuration.java:566)
    ... 6 more



Environment

Release: PAM 4.3.05 CP04

Cause

The re-configure updated the environment to a previous version, not the current that is 4.3 SP5 CP04

Resolution

Re-install CP04 (which is the original version before reconfiguring using 4.3 SP5 files) after reconfiguring. See the steps and considerations to install CP04 here.
