CA API Gateway - OTK OpenID Connect BCP Test Client for RS256 Signing Algo and new Private Key
Article ID: 266319
Updated On:
Products
Issue/Introduction
This KB Article describes configuring an OpenID oAuth Flow for Grant type: Authorization code with OpenID Connect with a new Private Key (other than default_ssl_key) and RS256 Signing Algorithm (Changed from Default HS256)
Environment
Gateway 10.x. 11.x with OTK 4.5, 4.6 +
Test Endpoint Sample URL: https://YourGatewayHostname:8443/oauth/v2/client/bcp
Resolution
Ensure that the oAuth Toolkit is configured and functioning correctly
Create a Private Key:

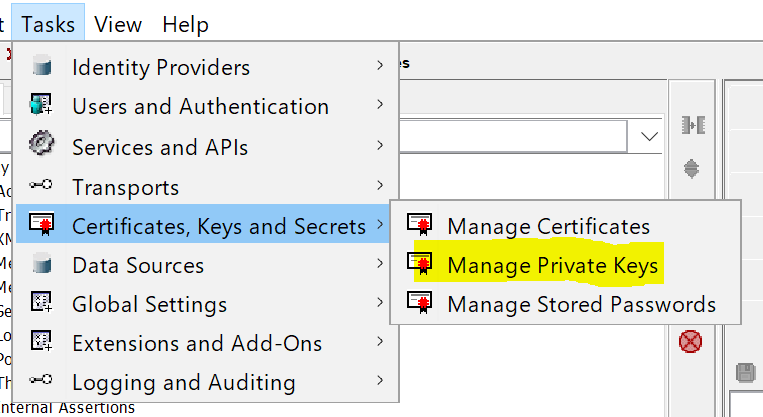

From the Gateway Policy Got to Manager Private Keys

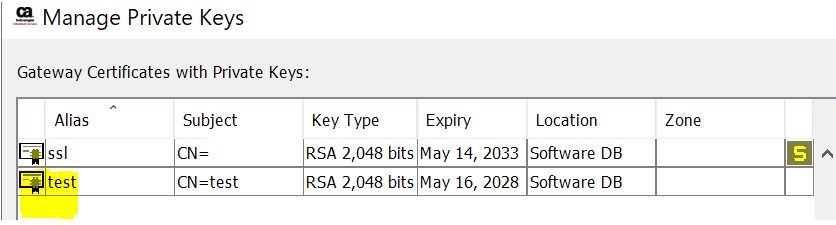

Create a New Private Key - See Example here:

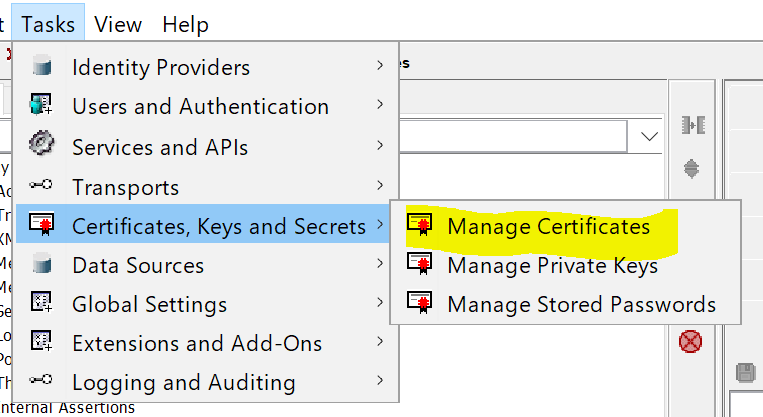

After creating the Private Key go into Manage Certificates as such:

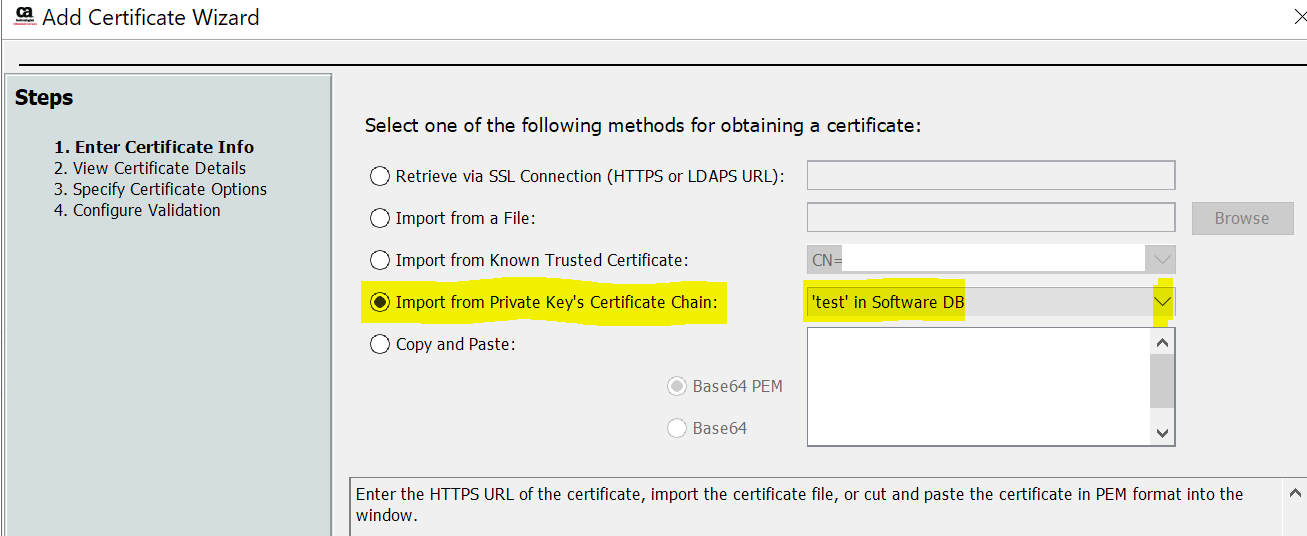

Click Add and import the Certificate from the Import From Private Key's Certificate Chain selection:

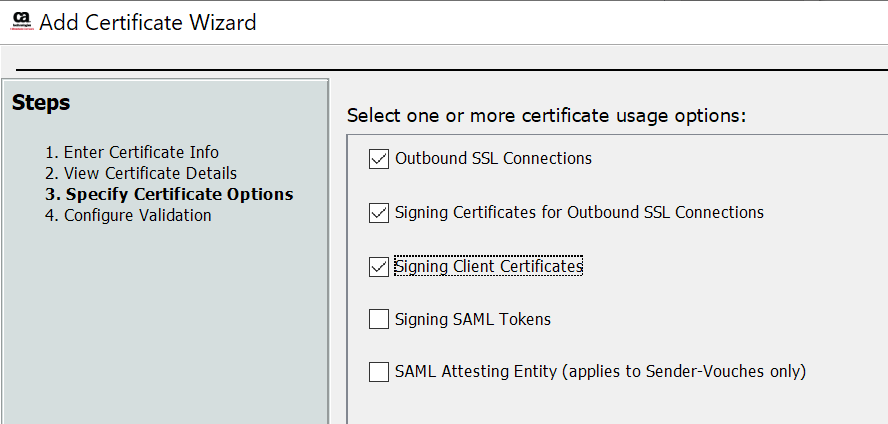

Click next into the Certificate Options Section and select the first three options as such:

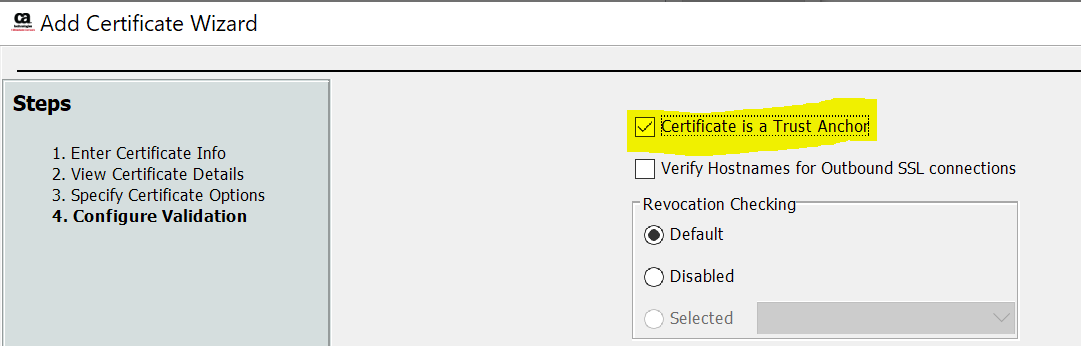

Click next and set as Trust Anchor
Now Set your Signing Algorithm to RS256 in Tasks --> Global Settings --> Manage Clusterwide Properties
Now let's edit some OTK Policies
Policy Name: OTK openid jwks_endpoint Configuration
Add your Private Key name (in this case called test) to the Create JSON Web Key assertion as such:
Policy Name: OTK id_token Signing Algorithm - CUSTOM

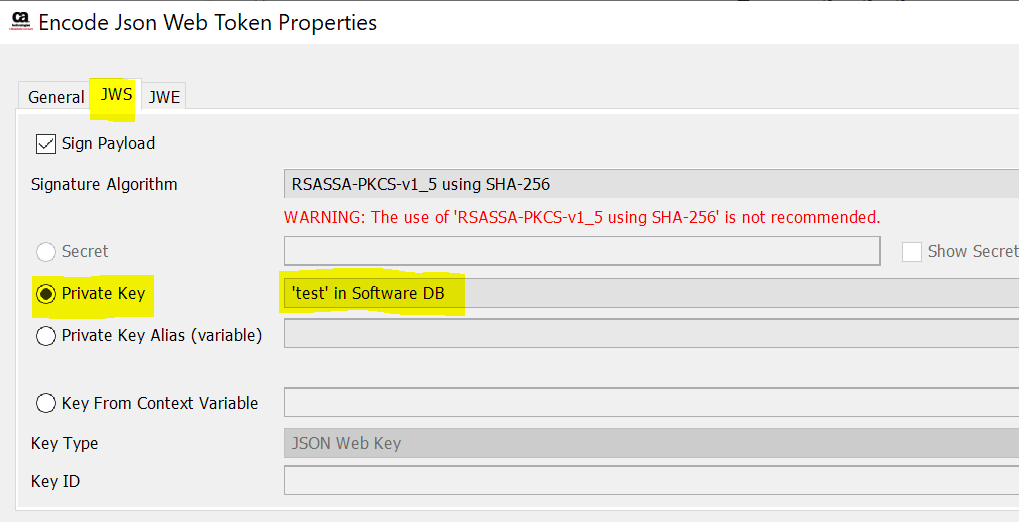

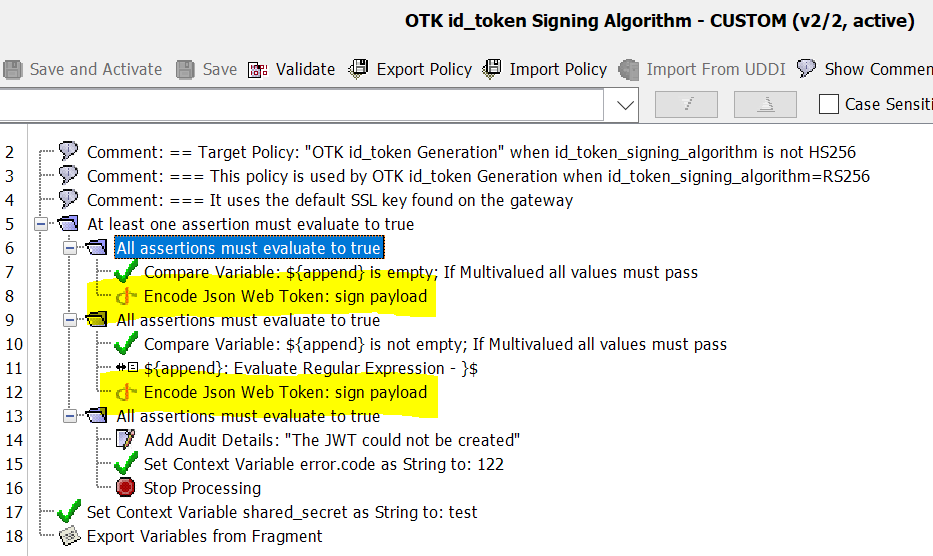

Set both Encode Json Webtoken: Sign Payload assertions with your Private Key. These Assertions are at Lines 8 and 12 in the Policy

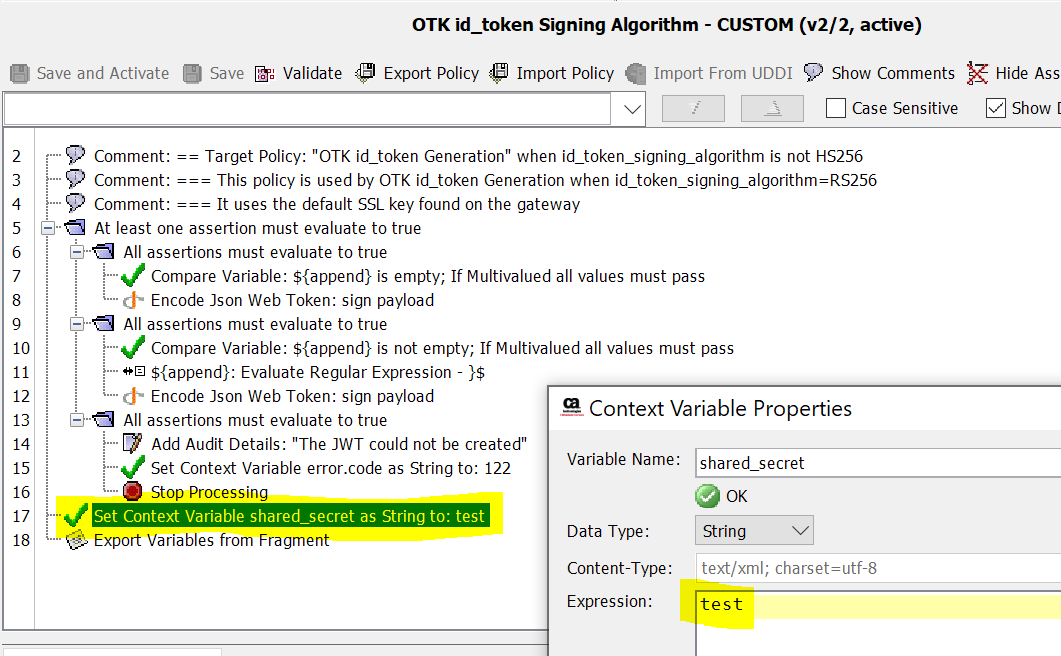

Set the Shared_Secret Context Variable to the name of your Private Key as such:
Copy the following two lines from the Read Only Encapsulated Assertion id_token KID Configuration into the editable #OTK id_token KID Configuration policy

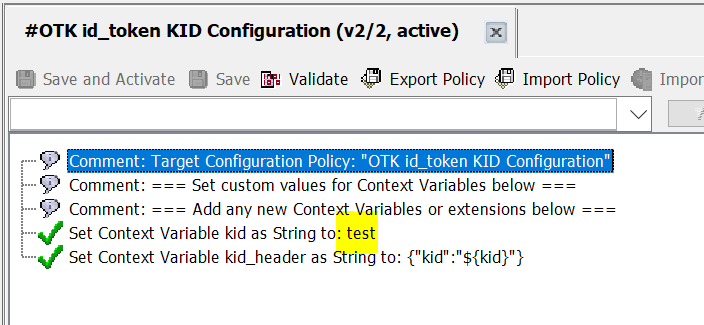

After copying the lines set the Set Context Variable Kid as String to the name of your Private Key (in this case the Private Key is called test)
Policy Name: OpenID Connect Client - BCP [/oauth/v2/client/bcp]

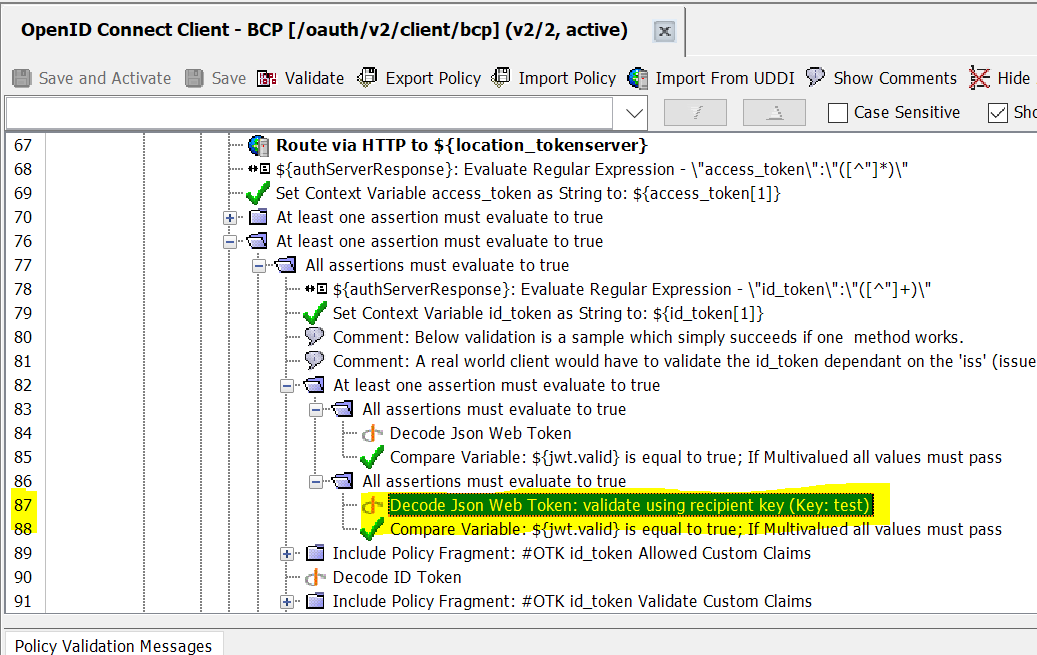

At Line 87 set the following Decode Json web Token to your Private Key:
Policy Name: #OTK id_token KID Configuration
Change the shared_secret Compare Variable and the Decode Json Token assertions to reflect the Private Key you created (in this case it is test)
Now you are ready to call the Basic Client Profile Endpoint:
https://YourGatewayHostname:8443/oauth/v2/client/bcp
Login then hit the Grant button on the next screen and you should get a successful flow with working sample Resources and Claims

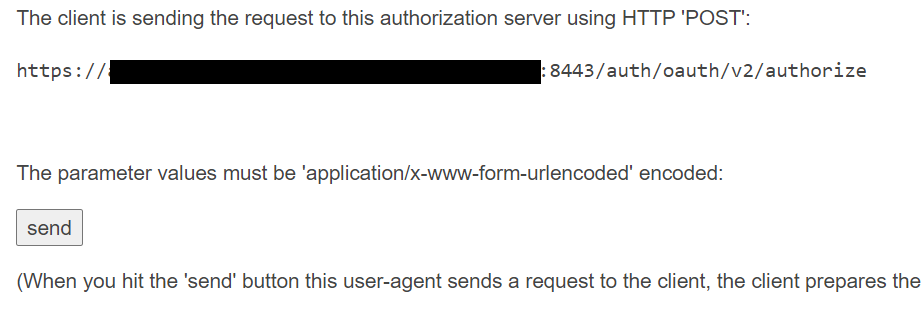

Sample Successful Output
