Heatmap rendering issue in Allocations Timeline - "Is Role" filter set to "All"

Products

• Clarity PPM SaaS
• Clarity PPM On Premise

Issue/Introduction

The heatmap in the bottom section of the “Allocations Timeline” tab in staffing workspace doesn’t render properly if I apply the filter “Is Role = All”.

Please see screenshots below:

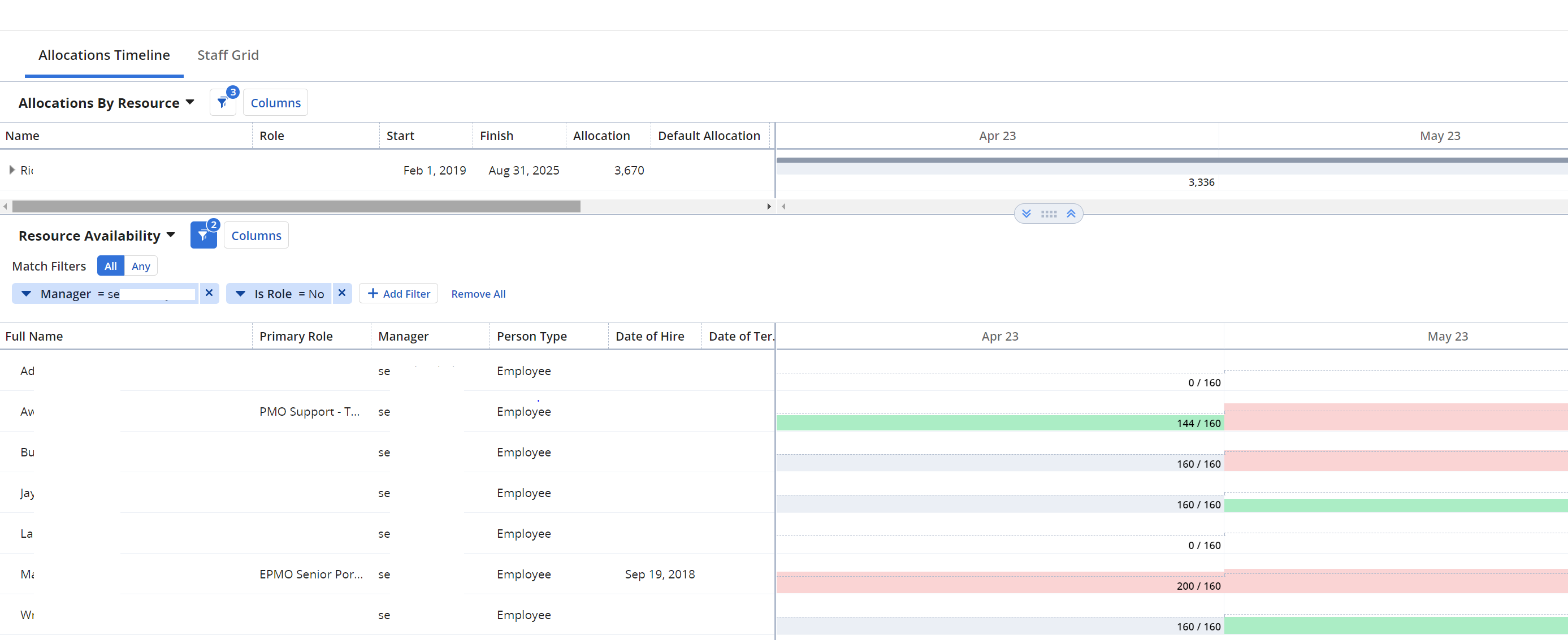

When the Is Role filter is set to “No”

When the “IS Role” filter is set to “All”. Please see the record marked with a rectangle to identify the difference in two screenshots for the same resource.

Environment

Release : 16.1.1

Cause

The availability of a couple of roles were set as 56 hours which is not logical at all and the rendering of the heatmap was impacted.

Resolution

The availability was changed to 8 hours and then the heatmap was rendering correctly.
