No action when pressing Upgrade Agents button

Products

• CA Release Automation - Release Operations Center (Nolio)

Issue/Introduction

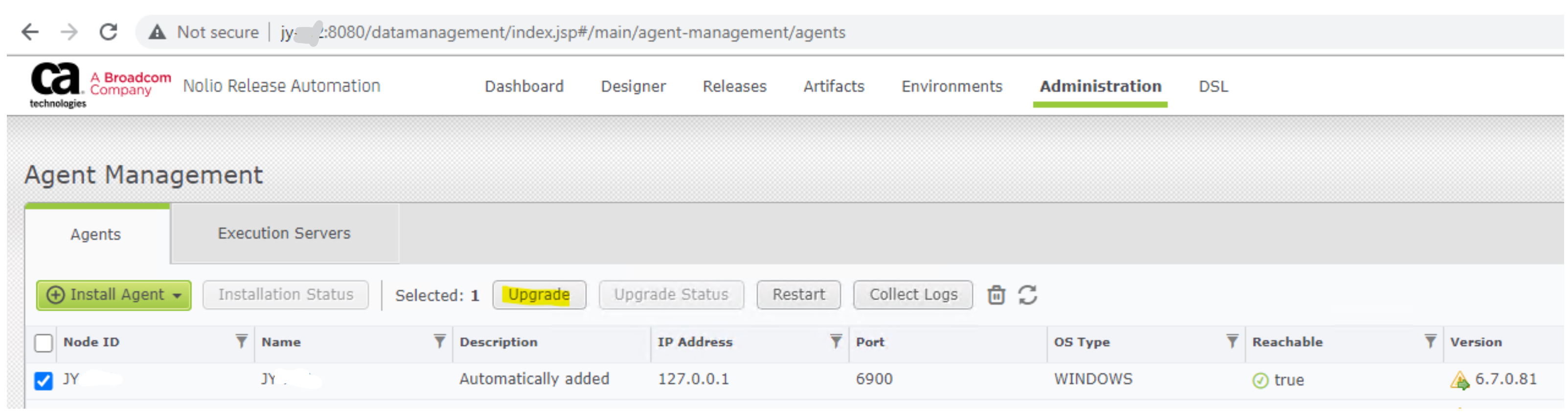

When pressing Upgrade button in Agents, nothing happens.



In nolio_dm_all.log there is following error :

2023-03-17T16:41:52.931Z [http-nio-8080-exec-5] INFO  (com.nolio.platform.server.dataservices.services.execmng.ExecutionServersServiceImpl:514) - Retrieving superNodes list for target server - es_<ESName>
2023-03-17T16:41:52.932Z [http-nio-8080-exec-5] ERROR (com.nolio.releasecenter.controllers.v6.ExecutionServersRestController:125) - Controller method error occurred.
java.lang.IllegalArgumentException: loops not allowed
    at org.jgrapht.graph.AbstractBaseGraph.addEdge(AbstractBaseGraph.java:218)
    at org.jgrapht.Graphs.addEdgeWithVertices(Graphs.java:87)
    at org.jgrapht.graph.builder.AbstractGraphBuilder.addEdge(AbstractGraphBuilder.java:99)
    at com.nolio.platform.server.dataservices.services.execmng.ExecutionServersServiceImpl.getNimiNetworks(ExecutionServersServiceImpl.java:1088)
    at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)

Environment

Release Automation 6.x

Cause

a ES node is linked to itself as supernode.

Following Query shows some rows with same value for server_id and super_node_id

select * from connected_super_nodes

Resolution

1- Update the properties of "Execution Servers" and remove the links to itself.



Example :

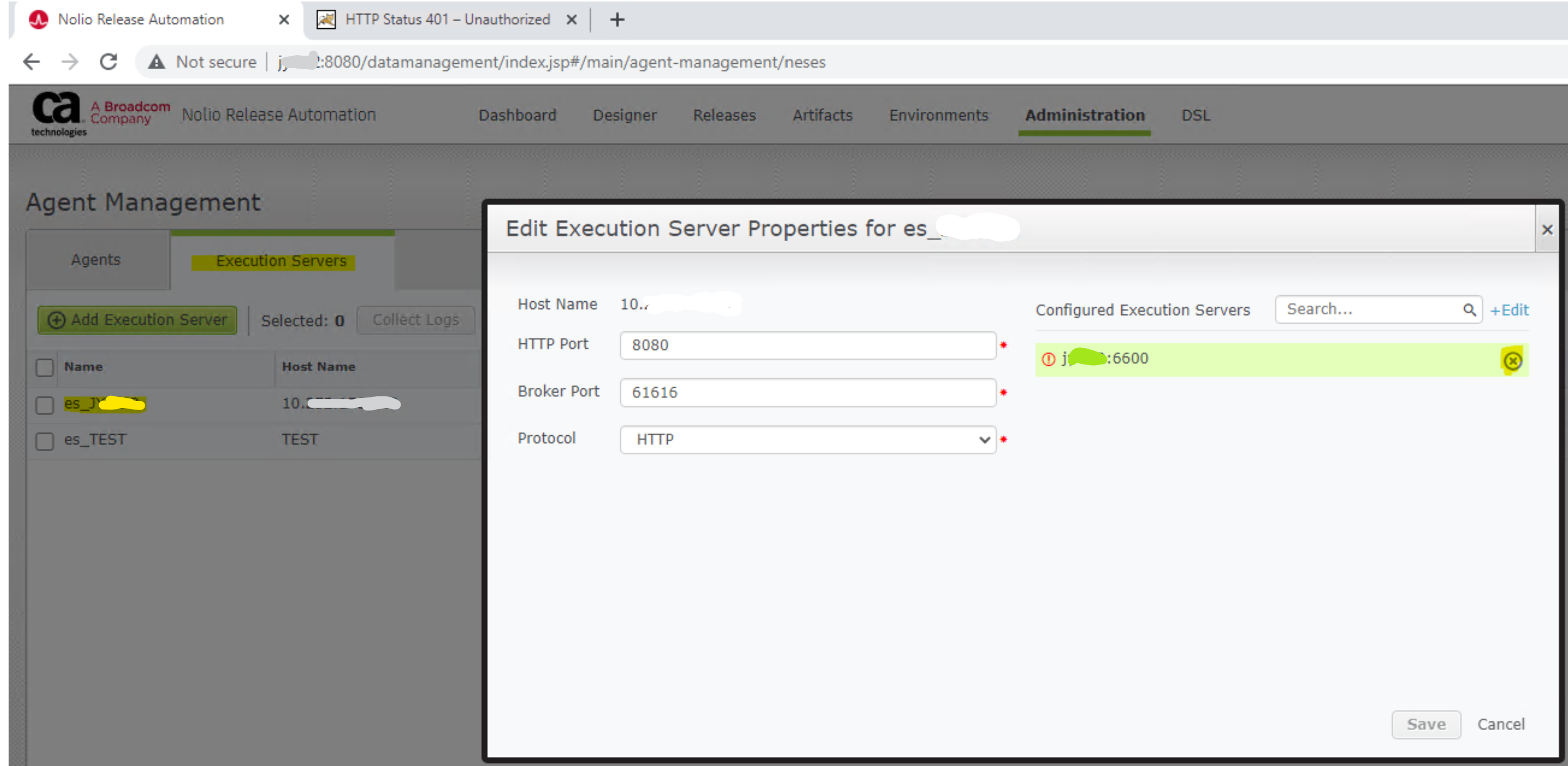

In below screenshot one ES is linked to itself. We should remove the link by clicking on the red cross







2- If some NES is not reachable, it is not possible to remove the link using GUI.



But it could be deleted using a SQL Query



Execute following SQL Query :



DELETE FROM connected_super_nodes WHERE server_id=super_node_id



to remove the links NES to itself



3- Restart Nolio service on NAC
