CDM MCS CPU Individual Usage mistakely enables all targets [qos_target = ~.*]

book

Article ID: 256364

calendar_today

Updated On:

Products

DX Unified Infrastructure Management (Nimsoft / UIM)

Issue/Introduction

In CDM CPU Enhanced Template even though we only enable CPU Individual Usage, also User, System, Wait and Idle Metrics are collected.





***


Steps to Reproduce:

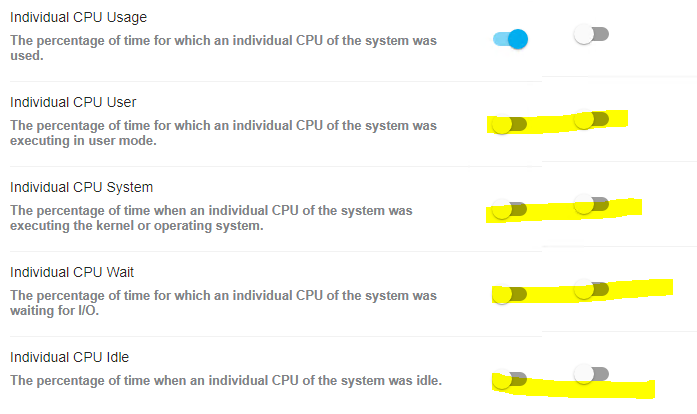

1. Create an CPU Monitor (Enhanced) and only enable 1 QOS: Individual CPU Usage
2. Check plugin metric.cfg:


       <CPU_Multi_Usage>
            subsys =
            qos_source = ~.*
            qos_label = Individual CPU Usage
            alarm = false
            publish_qos = true
            qos_target = ~.*
            qos_name = QOS_CPU_MULTI_USAGE
            publish_baseline = false
         </CPU_Multi_Usage>




3. Check DB. All targets for QOS_CPU_MULTI_USAGE are monitored (wait, idle, system users).


The Expectation would be that only server target is monitored.

Environment

This issue is reproducible in UIM 20.3.3, UIM 20.4CU4/5/6/7/8/9 with MSSQL and MYsql
CDM probe 6.71 / 6.82-MC / 7.11
Template 6.71.1 / 6.84
Template 7.10.1
Windows or Linux

Cause

This is due to the fact that all targets are enabled in the correspondent plugin_metric.cfg section for this metric:

"[qos_target = ~.*]"


       <CPU_Multi_Usage>
            subsys =
            qos_source = ~.*
            qos_label = Individual CPU Usage
            alarm = false
            publish_qos = true
            qos_target = ~.*
            qos_name = QOS_CPU_MULTI_USAGE
            publish_baseline = false
         </CPU_Multi_Usage>

Resolution

This issue is resolved in cdm_mcs_templates 7.20.1

(attached template package: "cdm_mcs_templates-7.20-20231227.zip" - "probe_template_pkg_version 7.20-SNAPSHOT" - published Jan 3 2024)

CPU Individual Usage for specific target only enables the enabled targets now.

Additional Information

Migration to Template 7.20.1 can only be triggered from 7.10.1 or in a "from scratch" scenario.

So if running any previous version template, migrate to 7.10.1 first otherwise the migration might fail.

This template version fix will be included in UIM 20.4 CU10 and UIM 23.4CU1





Attachments

cdm_mcs_templates-7.20-20231227.zip get_app
