How to configure Agent SaaS 22.11 with Wildfly27 domain mode

Products

• CA Application Performance Management (APM / Wily / Introscope)

Issue/Introduction

The below KB explains the steps to take to configure the Agent SaaS 22.11 onward with Wildfly 27 running domain mode.

Environment

- APM SaaS Java Jboss Agent 22.1 and onward versions.

- wildfly-27.0.0.Final.tar.gz

Resolution

Go to the Wildfly Admin console

Click Runtime

Server Groups

Click “View” for main-server-group

Click JVMs > default > Edit

Add the location of the Agent. Jar to the Agent Agent property. ( NOTE: latest Jboss agent has been improved and configuration simplified)

Click “Save”

Restart the JVM



Verification

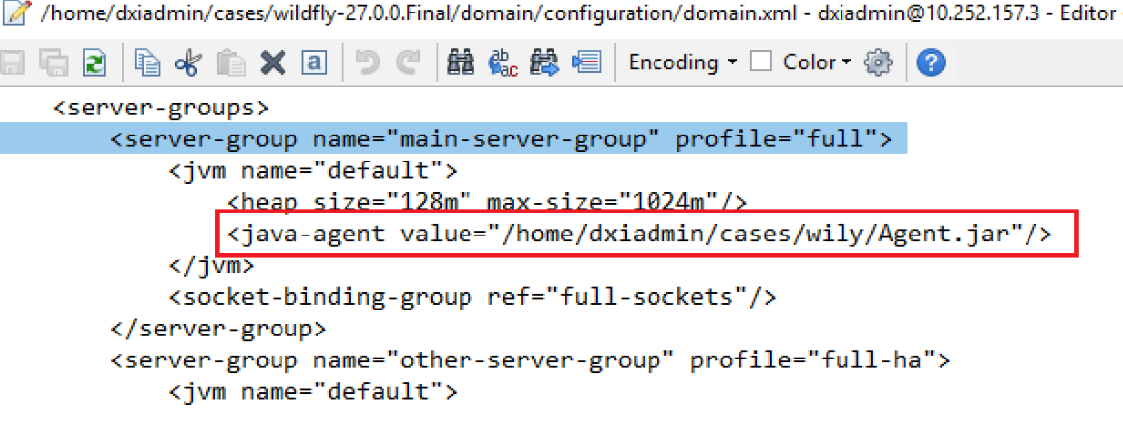

a) Check that <wildfly-27.0.0.Final>/domain/configuration/domains.xml has been update:

b) check agent logs has been created

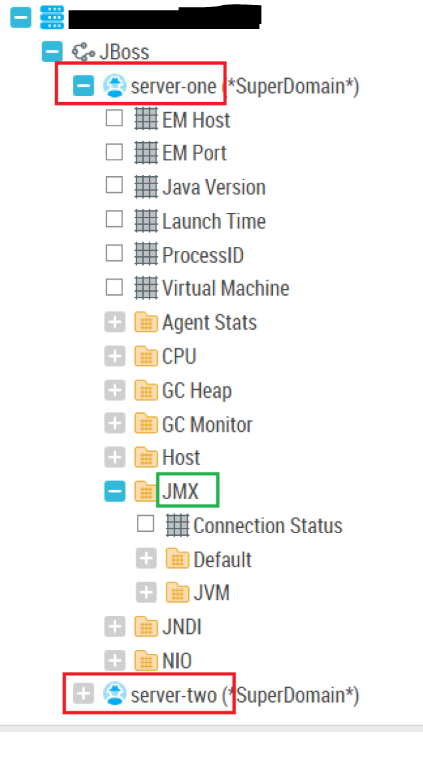

c) check agent is report in Metric View and agent naming is working as expected + JMX reporting

Vs. Wildfly console:
