Error Migrating OTK with GMU

Products

• CA API Gateway

Issue/Introduction

We are trying to migrate our OTK from PRE environment to DEV and we get the below error:

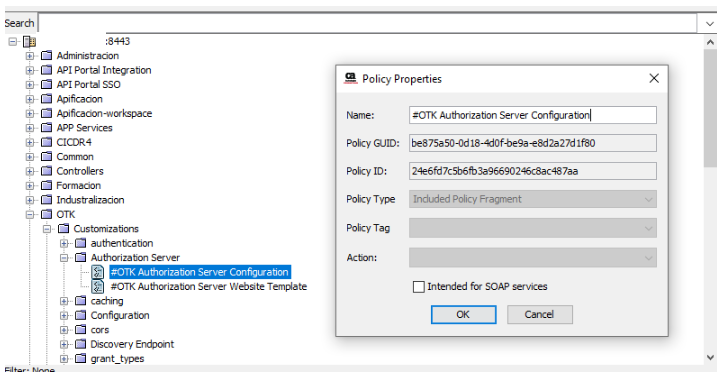

Origin policy:

Destination policy:

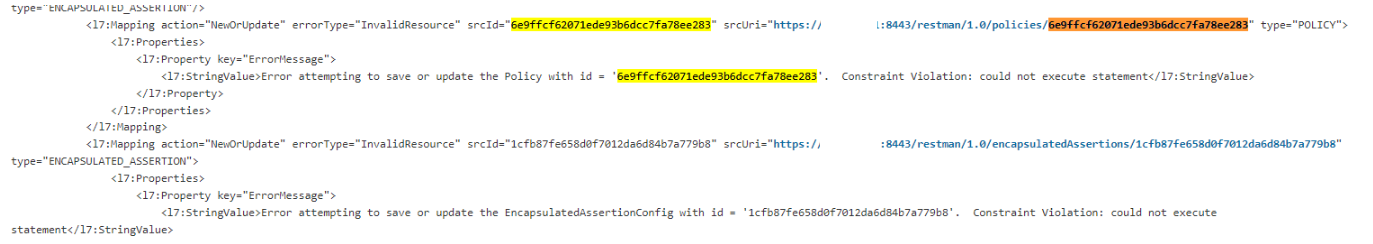

Error GMU:

Error in ssg_0_0.log:

2022-09-08T13:21:21.732+0200 ERROR   455979 org.hibernate.engine.jdbc.spi.SqlExceptionHelper: Cannot add or update a child r
ow: a foreign key constraint fails (`ssg`.`policy`, CONSTRAINT `policy_folder` FOREIGN KEY (`folder_goid`) REFERENCES `folde
r` (`goid`))

2022-09-08T13:30:39.579+0200 ERROR   456013 org.hibernate.engine.jdbc.spi.SqlExceptionHelper: Cannot add or update a child r
ow: a foreign key constraint fails (`ssg`.`policy`, CONSTRAINT `policy_folder` FOREIGN KEY (`folder_goid`) REFERENCES `folde
r` (`goid`))



Environment

Release : 10.1

Component :

Resolution

Folder 39087b4361000e25ecb19183340a9f8e does not exist in the bundle its expected to exist any 1 will do of 3 below

1) Migrate just folder So

a) migrate out folder id 39087b4361000e25ecb19183340a9f8e

b) migrate in folder

2) Create Manually folder and use either

a) MapbyName

b) https://techdocs.broadcom.com/us/en/ca-enterprise-software/layer7-api-management/api-gateway/10-1/gateway-migration/gmu-command-help/managemappings-command.html

Example: Change mappings in the bundle for specific entities

3) Can try different gmu command

includeOnlyDependencies

https://techdocs.broadcom.com/us/en/ca-enterprise-software/layer7-api-management/api-gateway/10-1/gateway-migration/gmu-command-help/migrateout-command.html
