Collect memory dumps in UIM

Products

• DX Unified Infrastructure Management (Nimsoft / UIM)

Issue/Introduction

How to collect memory dumps in UIM?

Environment

Release : 20.4

Component : UIM - DATA_ENGINE

Resolution

1. Open "regedit" on the server in question and navigate to the following registry location:

HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\Windows Error Reporting\LocalDumps:

If the "LocalDumps" folder does not exist in the registry, you should create it.
Now, inside this folder you should create the following registry keys/values:
i.             "DumpFolder" as a REG_EXPAND_SZ to something like C:\Dumps\
ii.            "DumpCount" as a REG_DWORD to 10 // this will limit to a maximum of 10 dump files
iii.           "DumpType" as a REG_DWORD to 2 // this creates a full process dump



Install DebugDiag 2 tool, which helps to identify the memory leaks in windows environment.

https://www.microsoft.com/en-us/download/confirmation.aspx?id=103453

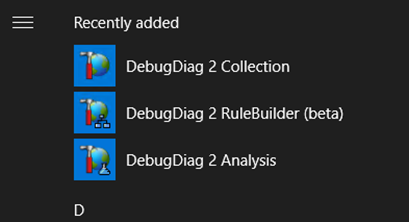

After installing the tool, we can find DebugDiag 2 Collection.

After installing DebugDiag 2

Stop nimsoft service and take the backup of data_engine probe folder. I have attached the data_engine_memory.zip file with the case, unzip and copy all the contents under this to data_engine probe folder, including data_engine.exe.

After copying, from IM GUI, right click on data_engine probe -> validate -> yes.

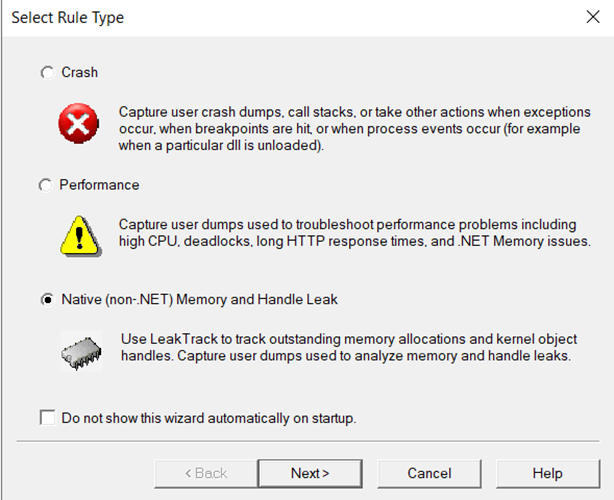

Now Click on DebugDiag 2 Collection and choose below option:

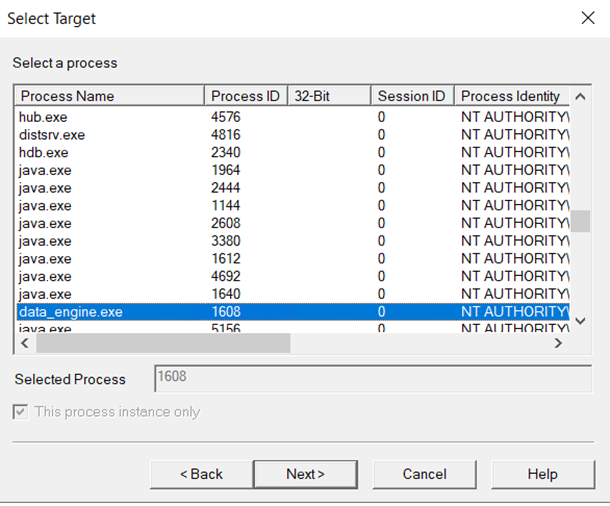

Click on Next and select data_engine in the next screen as below:

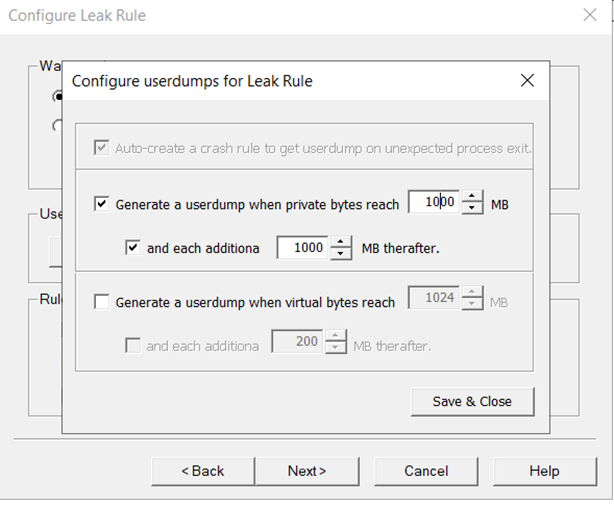

 Select Next and click on configure as below:



Click on Save & Close

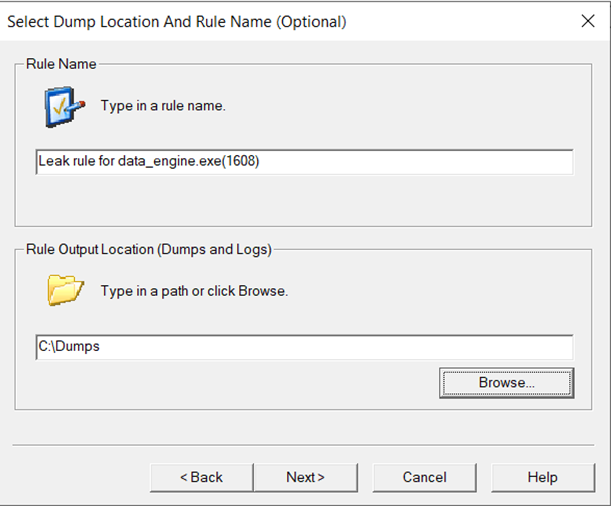

Then click on Next, choose the Dumps path where it can be stored, by default it will be stored in C:\Program Files\DiagDiag\Logs\Leak rule for data_engine.exe, but it can be changed to your own location,

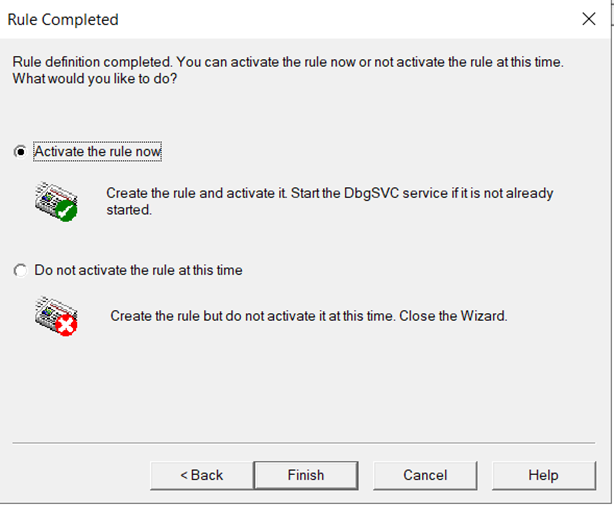

Click on Next -> and activate the rule.

Click on Finish.

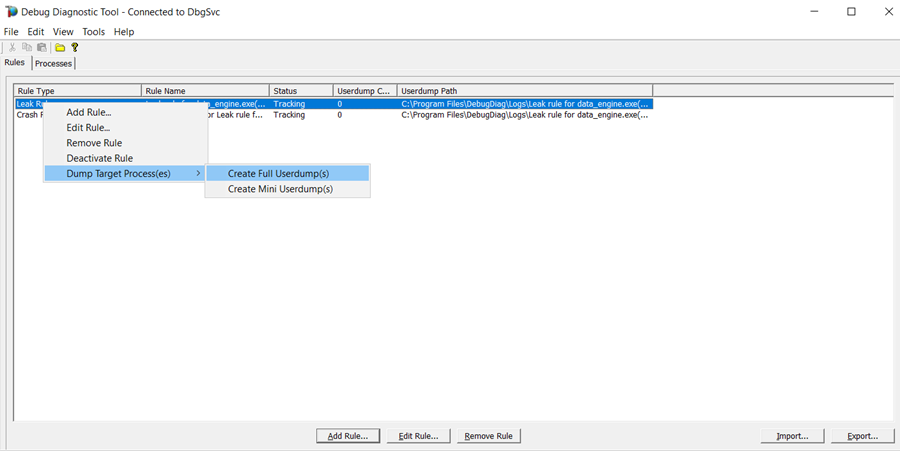

If the dumps are not getting created every day, then we can create dumps every day once as below:
