Customizing 0x6c10000 event code to generate a Conditional alarm severity

Products

Network Observability Spectrum

Issue/Introduction

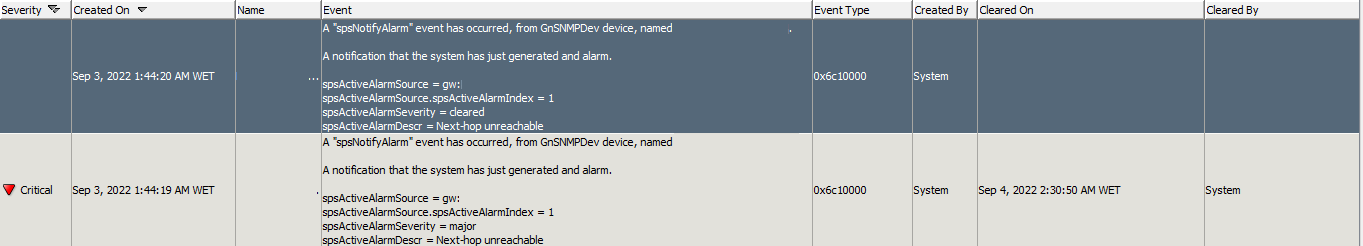

The 0x6c10000 event code was customized to generate an alarm. The alarm was generated and cleared based on the events, but actually, it is still visible in the OneClick Console.

Environment

DX NetOps Spectrum all currently supported releases

Cause

Based on the customization below, there is no event code that would clear the Critical alarm. And the following KB article was applied to clear the alarm:

KB : How to configure Spectrum to automatically clear an alarm after a specified amount of time.

In the $SPECROOT/custom/Events/AlertMap file:

# spsNotifyAlarm                        spsActiveAlarmSource
1.3.6.1.4.1.23867.4.1.6.1    0x06c10000 1.3.6.1.4.1.23867.3.1.1.2.1.1.6(1,2)\
                                        # spsActiveAlarmSeverity
                                        1.3.6.1.4.1.23867.3.1.1.2.1.1.3(3,0)\
                                        # spsActiveAlarmDescr
                                        1.3.6.1.4.1.23867.3.1.1.2.1.1.5(76620,0)

In the $SPECROOT/custom/Events/EventDisp file:

0x10f4b E 50 A 3,0x00010f4b C 0x00010f89
0x6c10000 E 20 A 3,0x6c10000

Resolution

The spsActiveAlarmSeverity could be used to generate a Conditional alarm severity.

In the $SPECROOT/SG-Support/CsEvFormat/EventTables/spsActiveAlarmSeverity_en_US file:

0x00000000 info
0x00000001 warning
0x00000002 minor
0x00000003 major
0x00000004 critical
0x00000005 cleared
0x00000006 acknowledged
0x00000007 unacknowledged
0x00000008 indeterminate

1. Edit the 0x6c10000 event code and change the Severity to Conditional, the Event Variable to 3 and click on Configure button:

2. Click on the "+" button to create an Alarm Severity Mapping:

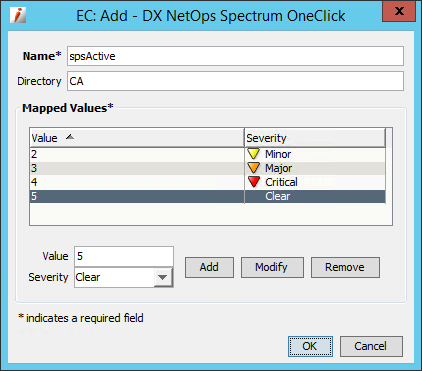

3. And configure as follow:

4. Save the changes:

In the $SPECROOT/custom/Events/EventDisp file:

0x210d53 E 20 A 3,0x210d53
0x6c10000 E 20 A { v 3 CA.spsActive },0x6c10000,1

5. The Alarm Severity Mapping file (spsActive) is under $SPECROOT/custom/Events/CA/ directory:

Additional Information

As per:

TechDocs : DX NetOps Spectrum 24.3 : Working with Events and Alarms

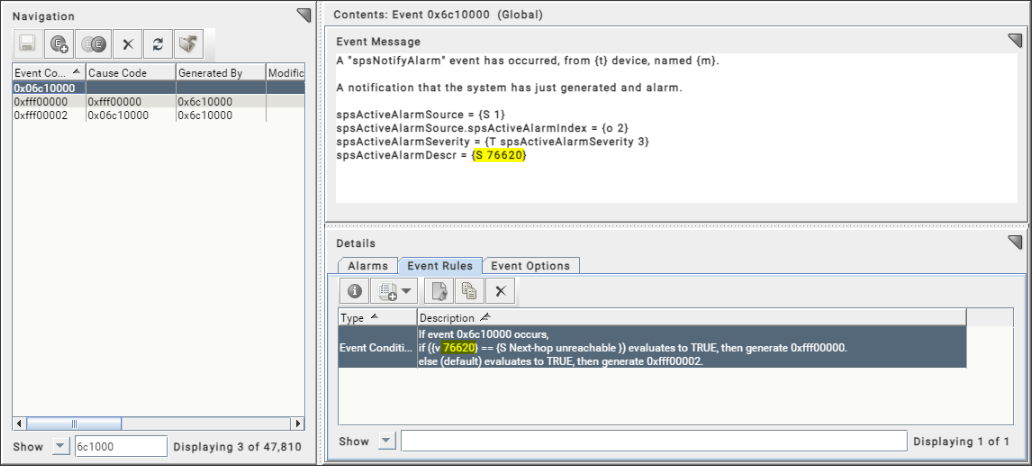

Create an event condition to generate a new event code when Next-hop unreachable occurs:

In the $SPECROOT/custom/Events/EventDisp file:

0x6c10000 E 20 R { 1 } CA.EventCondition, "({v 76620} == {S \"Next-hop unreachable\"})" , "0xfff00000 -:-","(default)" , "0xfff00002 -:-"
0xfff00000 E 20 A { v 3 CA.spsActive },0xfff00000,1
0xfff00002 E 20 A { v 3 CA.spsActive },0x6c10000,1

Command line to generate an alarm:

snmptrap -v1 -c public <SS_IP>:162 1.3.6.1.4.1.23867.4.1 <Device_IP> 6 1 '1631525403' 1.3.6.1.4.1.23867.3.1.1.2.1.1.6 s "device:192.168.0.1" 1.3.6.1.4.1.23867.3.1.1.2.1.1.3 i 3 1.3.6.1.4.1.23867.3.1.1.2.1.1.5 s "Next-hop unreachable"

snmptrap -v1 -c public <SS_IP>:162 1.3.6.1.4.1.23867.4.1 <Device_IP> 6 1 '1631525403' 1.3.6.1.4.1.23867.3.1.1.2.1.1.6 s "device:192.168.0.1" 1.3.6.1.4.1.23867.3.1.1.2.1.1.3 i 3 1.3.6.1.4.1.23867.3.1.1.2.1.1.5 s "An OSPF neighbor session is no longer in Full or Two-Way state"

Command line to clear an alarm:

snmptrap -v1 -c public <SS_IP>:162 1.3.6.1.4.1.23867.4.1 <Device_IP> 6 1 '1631525403' 1.3.6.1.4.1.23867.3.1.1.2.1.1.6 s "device:192.168.0.1" 1.3.6.1.4.1.23867.3.1.1.2.1.1.3 i 5 1.3.6.1.4.1.23867.3.1.1.2.1.1.5 s "Next-hop unreachable"

snmptrap -v1 -c public <SS_IP>:162 1.3.6.1.4.1.23867.4.1 <Device_IP> 6 1 '1631525403' 1.3.6.1.4.1.23867.3.1.1.2.1.1.6 s "device:192.168.0.1" 1.3.6.1.4.1.23867.3.1.1.2.1.1.3 i 5 1.3.6.1.4.1.23867.3.1.1.2.1.1.5 s "An OSPF neighbor session is no longer in Full or Two-Way state"
