Probe deployment and opening probe configure fails for some robots.
search cancel

Probe deployment and opening probe configure fails for some robots.

book

Article ID: 246344

calendar_today

Updated On:

Products

DX Unified Infrastructure Management (Nimsoft / UIM)

Issue/Introduction

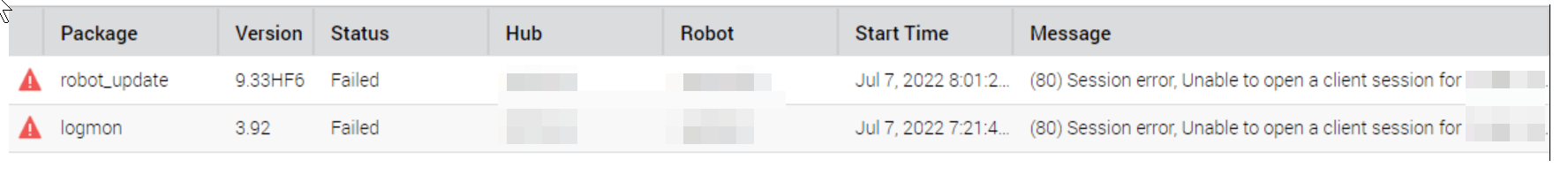

Deploying any probe or package either via IM or AC to some robots fails. Additionally there is a communication error when trying to open any probe configure at one of these robots.

We verified that there is communication between the systems and the ports are open.

Environment

Release : 20.3

Component : UIM - DISTSRV

Cause

Problem 1:
Viewing either the distsrv or hub log shows the IP address for the robot is different than the IP address shown for the robot in the IM console.

Problem 2:
After setting robot_ip = there is still a failure to deploy or configure.
hub log shows some operations work and others fail.
The robot's controller log has:
Jul 19 06:45:41:399 [139863936328320] 0 Controller: Selecting robotip from configuration. config_robotip = ##.##.##.##, cglob robotip = ##.##.##.##, local_ip_validation = 1,

It correctly picks up the first address from the cfg and gets the second from the environment.
Note: these IP addresses are fake.

Resolution

Problem 1:
Remote into the robot, stop nimsoft robot watcher service, add robotip = <correct IP address to use> to robot.cfg, start the service.

Problem 2:
The cglob robotip could be coming from the NIMBUS_LOCAL_IP if variable the exists in the environment or DNS lookup/hosts file.
It might be possible to avoid this by adding this line to the robot.cfg
local_ip_validation=no
