How To Collect FINEST LEVEL EDPA Logs with Symdiag Tool

Products

• Data Loss Prevention Endpoint Prevent

Issue/Introduction



Steps for Collecting  FINEST LEVEL EDPA Logs with Symdiag Tool



Customer end :- Symdiag tool  is needed . Download SymDiag to detect product issues (broadcom.com)

Engineer end:- Symdiag Viewer  tool is needed. Download SymDiag to detect product issues (broadcom.com)











Environment

Data Loss Prevention Endpoint

Cause

For Troubleshooting Purposes

Resolution

Download and Start Symdiag on the DLP agent machine

Step1 :- Click on Collect data to support



Step 2:-  Click on Next



Step 3:- Click on  All data and check  DLP endpoint agent option , Click on the Advanced Button  and you will see additional options and click Next , you can set the time also as to how much time is needed to repro the issue .
Default is 10 minutes .



Step 4 :-  Also enter agent tools  password  and select the type of logging level



Step 5:- Select Additional options if required if you see conflicts for EDPA Agent and click next

Step 6:-  repro the issue  you are facing  FIRST   and then only click Next

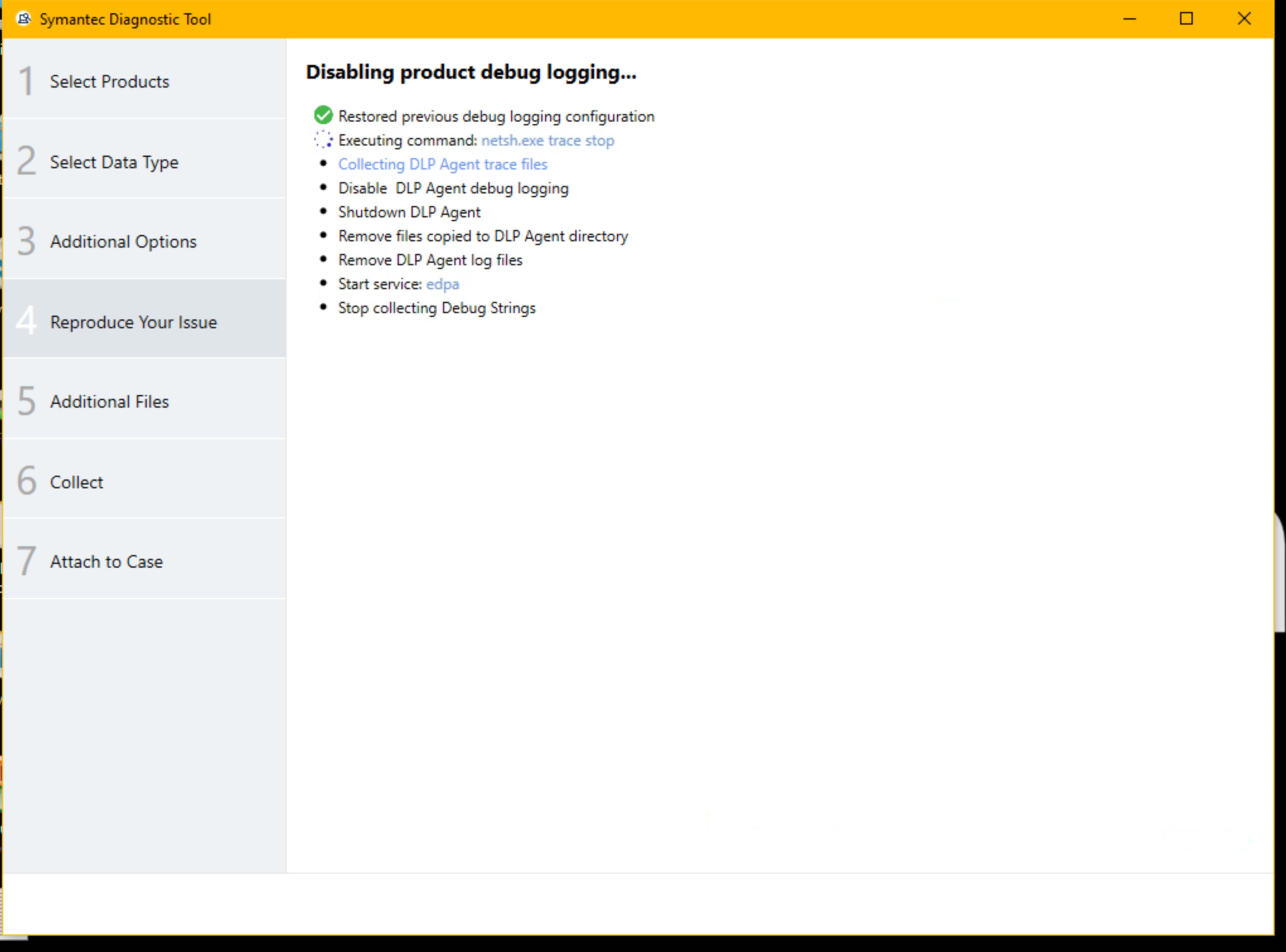

Step 7 :- Once the issue is reproduced it will bring the setting back to INFO level



Step 8:-  Collect the data



Step 9 :- Select Save the File Locally and click Next





Step 10 :- Open the file with Symdiag viewer which you can download from Download SymDiag to detect product issues (broadcom.com)

Navigate to the below location.



Step 11 :- Right click ==> View ==> open in external application like notepad and you see finest level logging enabled
