The hostname of our ARD Hub change along with the IP. We now get an error Invalid parameter: redirect_uri

Products

• CA Agile Requirements Designer

Issue/Introduction

We had to move our ARD Hub installation to a new machine.
We pointed the Keycloak and ARD installation to the previous database installations.

Everything comes up without an error and we can log into the keycloak admin interface.

However, when we try to login to the ARD HUB UI we get the following error:
Invalid parameter: redirect_uri

Environment

ARD 3.2.X

Agile Requirements designer

Cause

The previous server name and or IP address were stored in the keyCloack database and it needs to be updated.



Resolution

Login to the new instance keycloak interface with the admin user.
http://<KeyLoackServer>:8080/ard/api/iam/auth
Go to:

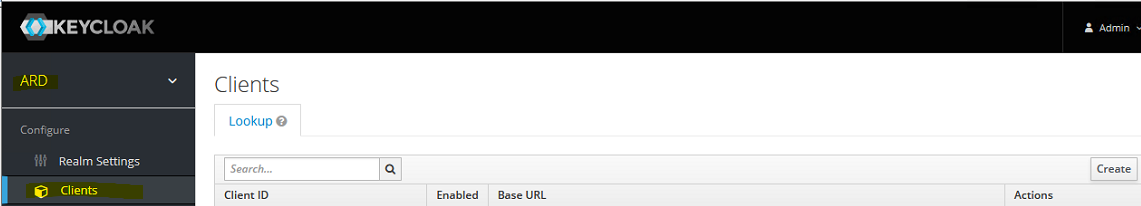

admin console -> Realm_Name -> Cients ->

Click on the link for insights:



change the Valid Redirect URI to the new hostname or IP address.



Follow the same process for the IMS entries and flow-storage



Restart the Wildfly and Tomcat services
