Probes not starting after disabling TLS 1.0 on Primary Hub

book

Article ID: 238382

calendar_today

Updated On:

Products

DX Unified Infrastructure Management (Nimsoft / UIM) DX Unified Infrastructure Management (Nimsoft / UIM)

Issue/Introduction

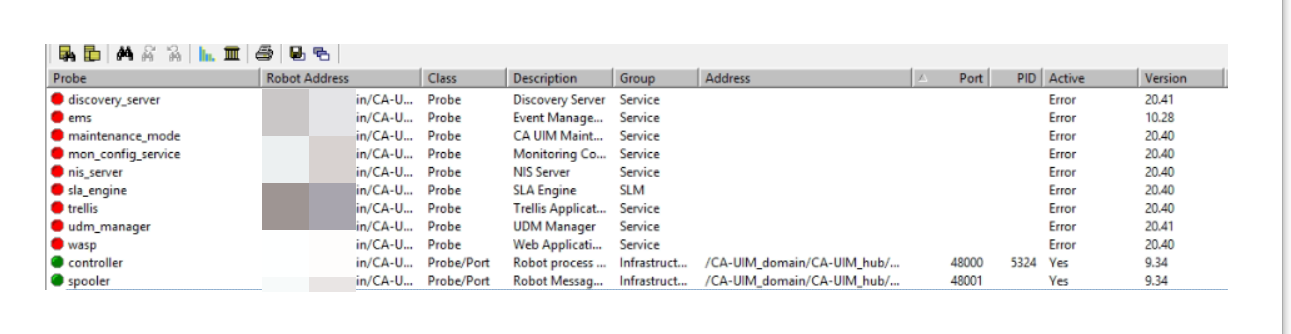

Probes not starting after disable the TLS 1.0 on Primary Hub

TLS 1.2 was then configured using

Support for TLS v1.2 (Microsoft SQL Server)

https://techdocs.broadcom.com/us/en/ca-enterprise-software/it-operations-management/unified-infrastructure-management/20-1/installing/pre-installation-planning/install-and-configure-your-database-software/microsoft-sql-server/support-for-tls-v1-2-microsoft-sql-server.html

Environment

Release : 20.3.x or later

Database :MSSQL 2014

Resolution

Make  the following changes to the data_engine configuration -
Change the Source in the data_engine config to the Fully Qualified Domain Name of the database xxxxxx,1433
(This should match the name in the SSL certificate)

Uncheck (disable) Always Trust Server Certificate in data_engine.cfg or IM GUI
TrustServerCertificate = false

so that it would use the configured jks store

After setting this restart the data_engine and check if connecting and processing.
Restart the Primary  robot and check if the probes connecting  to database
