OAuth specific Implementation

Products

• CA API Gateway

Issue/Introduction

My question was related to sending scope along with client credentials.

Does CA API have the capability to issue different access_token upon receiving scope along with clientID & Client secret

Environment

Release : 10.1

Component : API GATEWAY

Resolution

Yes

The docs show how to register a client from the registration you can add the scope, after this you can add more keys

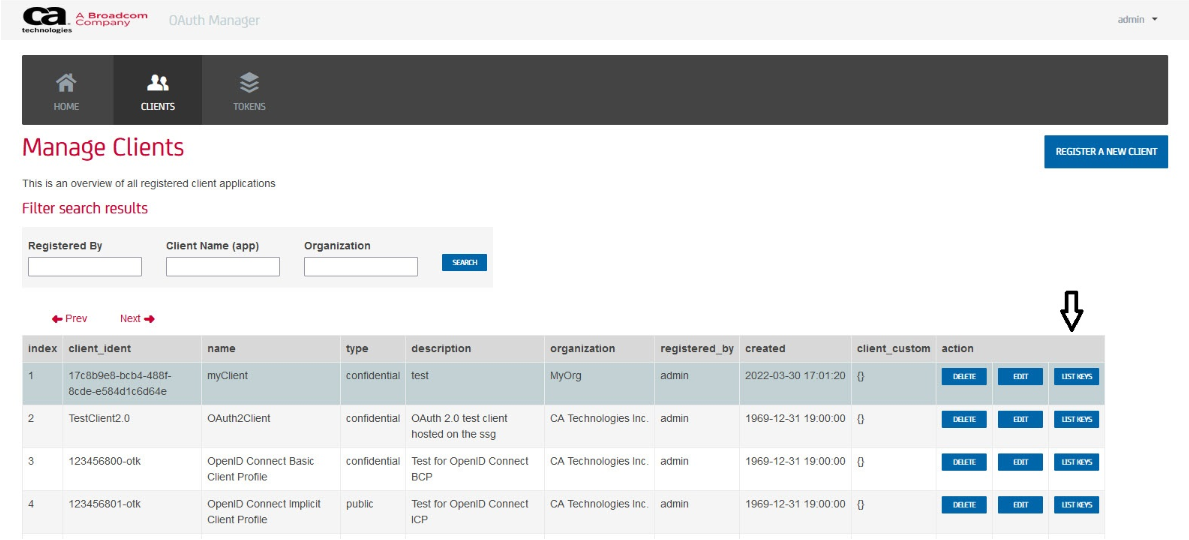

After creating the new client click List keys

To added additional keys click add keys

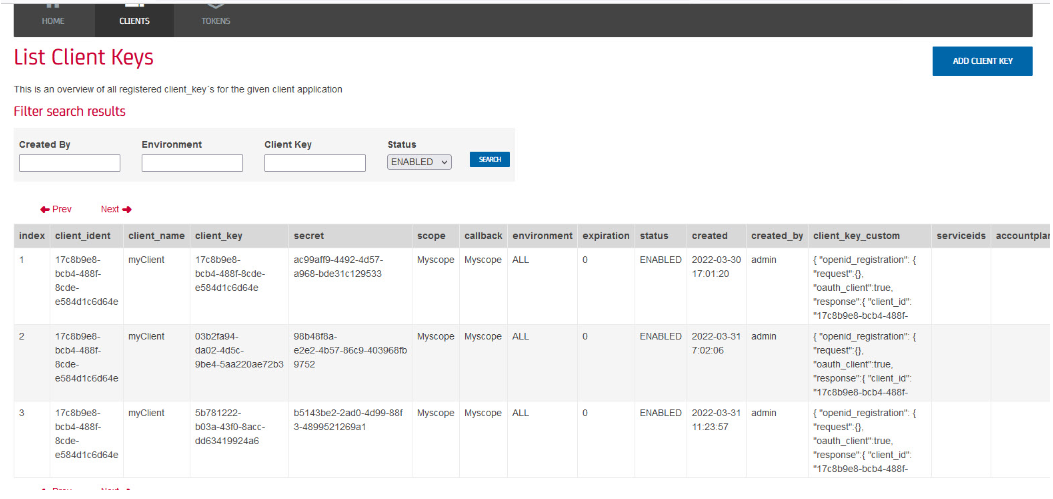

Click List Keys,  in this example create 2 keys for the same client and scope



To retrieve a token POST to the endpoint include the scope:

https://<gateway>:8443/auth/oauth/v2/token?client_id=<client_ID_Value>&client_secret=<Client_secret_Value>&grant_type=client_credentials&scope=Myscope

Example output

{

"access_token": "40323365-f29e-4ea6-92bf-15fb85e8a6ae",

"token_type": "Bearer",

"expires_in": 3600,

"scope": "Myscope"

}
