Issue/Introduction

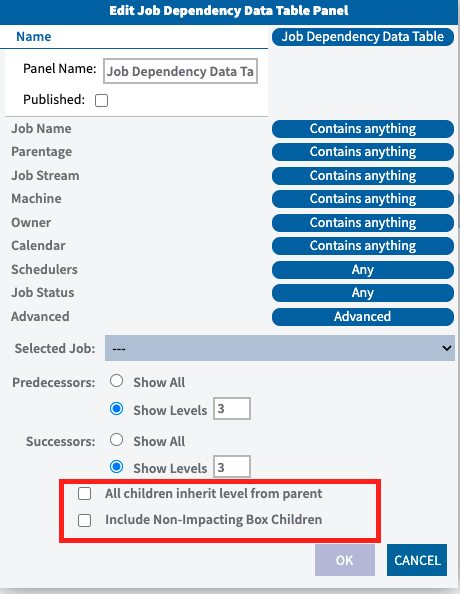

What do the two check boxes in the Insight Job Dependency Data Table do?

Environment

Release : 6.4.2

Component : AUTOMIC AUTOMATION INTELLIGENCE INSIGHT

Resolution

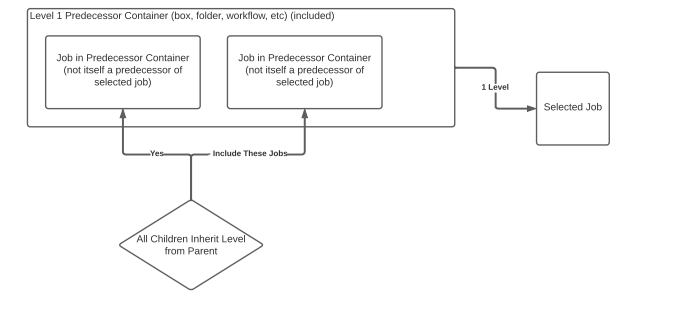

• “All children inherit level from parent”

Whether to return all jobs in the same box as same level or not.

When it’s set to true, all children inside a container job will have the same level as the container itself and be included in the results.

This means all children within a box/group will be included even if there is no direct impact on target job, and they will have the same level as the parent.

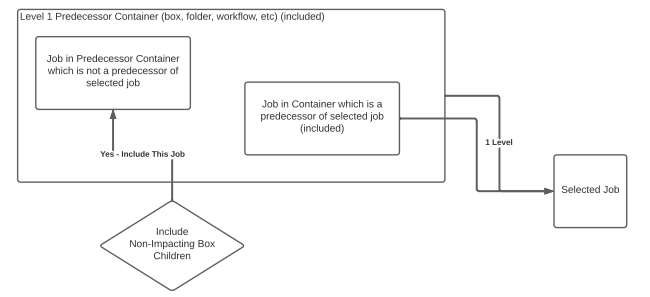

• Include Non-Impacting Box Children

Whether to return the dependencies for the boxed children or not that do not directly impact the target job.

This is going to pull in dependencies for Box's children that may not impact the target job.
