Service Desk SSO over tomcat is not working and gives error HTTP Status 404 - NotFound

Products

• CA Service Management - Service Desk Manager

Issue/Introduction

After enabling SSO for Tomcat getting error HTTP Status 404 - NotFound

Steps:

1. Following the steps as per the below KB to enable SSO for Tomcat:
https://knowledge.broadcom.com/external/article/72484/how-to-enable-ntlm-authentication-for-ca.html

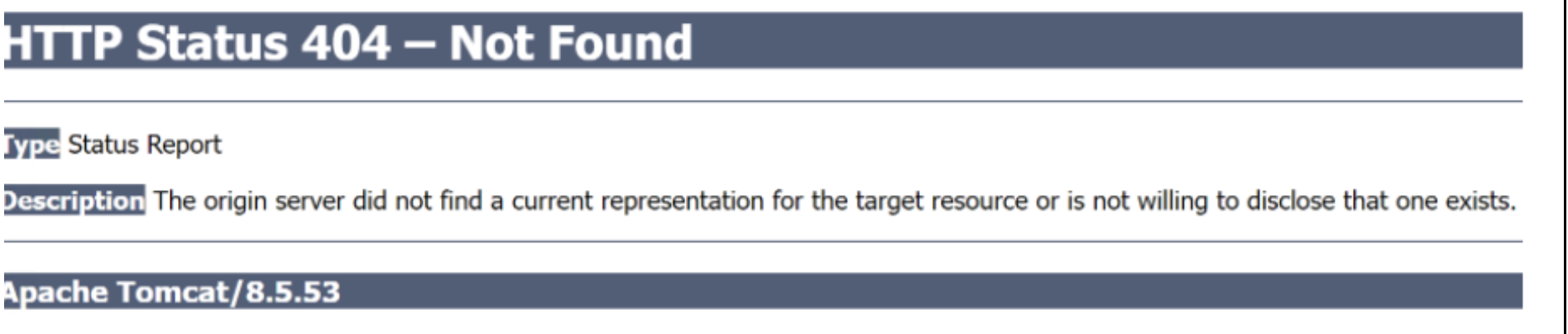

2. Post that on accessing SDM URL via tomcat port getting the below error:

Environment

Release: 17.3

Component: Service Desk

Cause

Appears to be due to the Waffle version.

Resolution

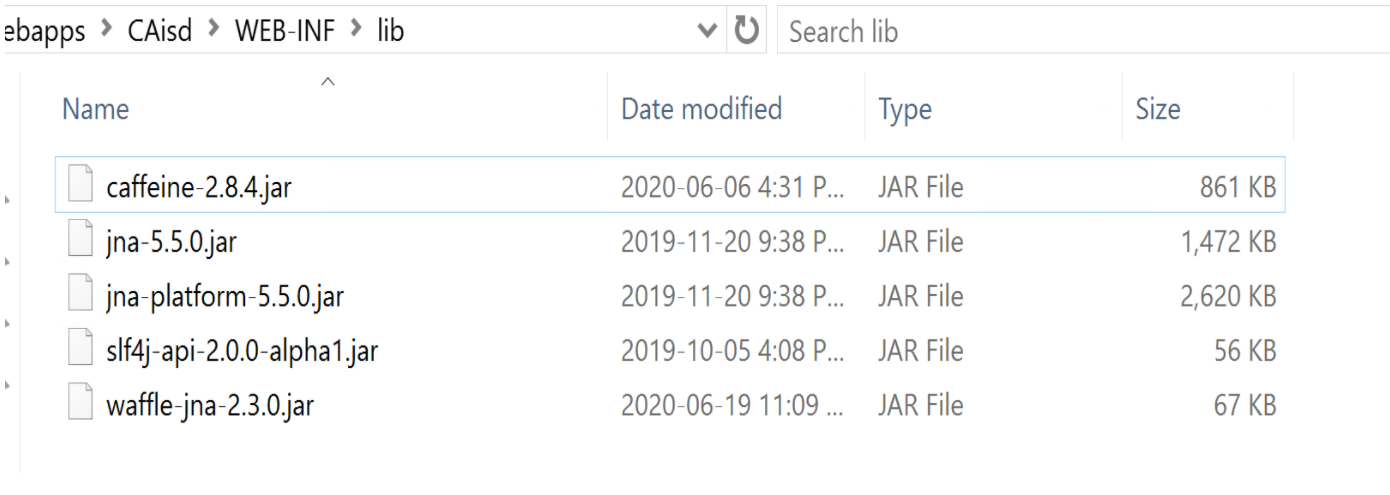

Instead of the mentioned waffle version in KB i.e 1.8.3, download and configure Waffle2.3.0 as below:

Additional Information

WAFFLE Repository - https://github.com/dblock/waffle
