How to remove/disable DiskMissing alerts in CDM

Products

• DX Unified Infrastructure Management (Nimsoft / UIM)

Issue/Introduction

How to remove DiskMissing alarms from CDM probe for any OS? Rather than using Nas Auto Operator profile and suppress need to disable completely.

Environment

Release : 20.3

Component : CDM

Resolution

Option 1:

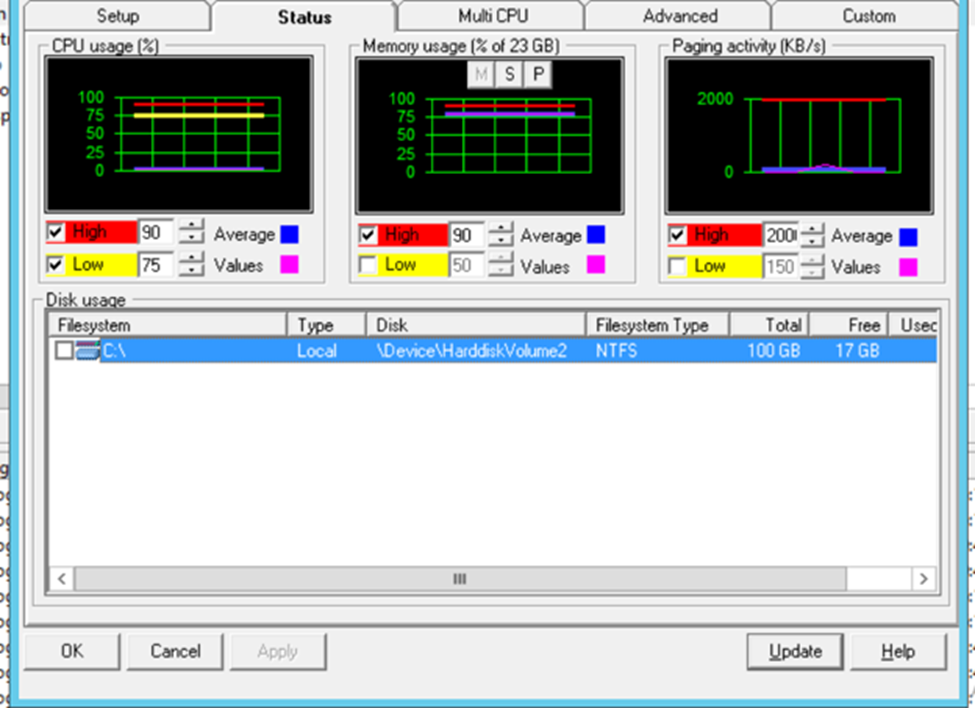

Can uncheck the un used filesystems in CDM GUI from IM.



Option 2:

Either through CDM Raw configure or CDM cfg file

go to disk>>alarm>>fixed>>missing>>c:/

- Change the value for key 'active' from yes to no.

<missing>

               active = yes

               message = DiskMissing

            </missing>



go to disk>>fixed_default>>Missing

- Change the value for key 'active' from yes to no



- Apply , Ok

For Future purpose only:

In future to avoid this manual work can change the setting in archive itself.

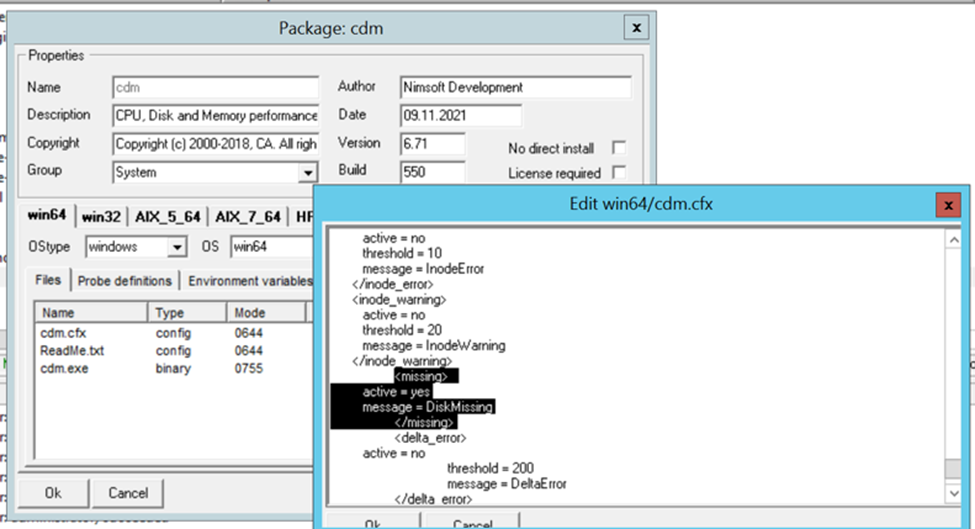

- go to CDM in Archive on IM and double click

- under files, can see CDM.CFX

- Right click and edit the file

-  go to fixed_default and change below value from yes to no

<missing> overwrite

         active = no

         message = DiskMissing

                </missing>

<missing>

         active = yes

         message = DiskMissing

                </missing>

note: please choose the OS as per your environment. and make sure to make changes before upgrade/deploy the probe.



And this has to be done before you upgrade/deploy the probe.
