Where do you configure ecometer in 20.4

Products

• DX Unified Infrastructure Management (Nimsoft / UIM)

Issue/Introduction

Where do you configure ecometer in 20.4 (with example device)

Environment

Release : 20.4
Component : UIM - ECOMETER_ADMIN

Resolution

- Deactivate wasp probe on Operator Console machine

- Deploy to your Operator Console machine

ecometer_admin (5.11)
ecometer_efficiencyreport (5.01)
webservices_rest (20.40)

- Activate wasp probe on Operator Console machine

- Deploy to your robot that will contain the ecometer probe

ecometer_monitor (5.02)
ecometer_3rdpartylibs (5.02)

- Deactive/Activate the ecometer_monitor probe (to have the 3rd party libraries applied)

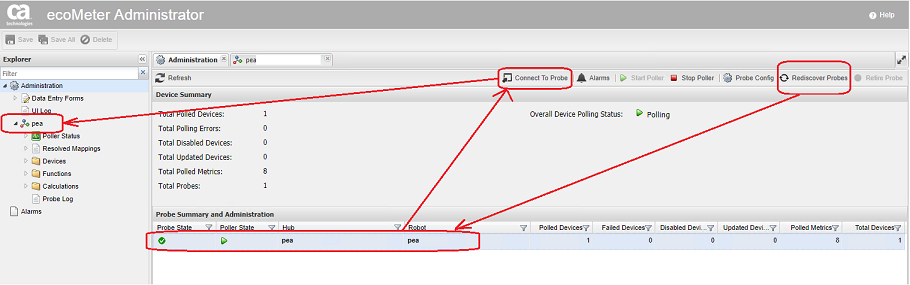

- Once wasp has restarted on the Operator Console machine open the ecometer_admin via Settings > Ecometer Admin

- Grab the attached resources file which can be imported into the poller

- click on Administrator and select to import the file

- select APC_UPS and import (as an example)

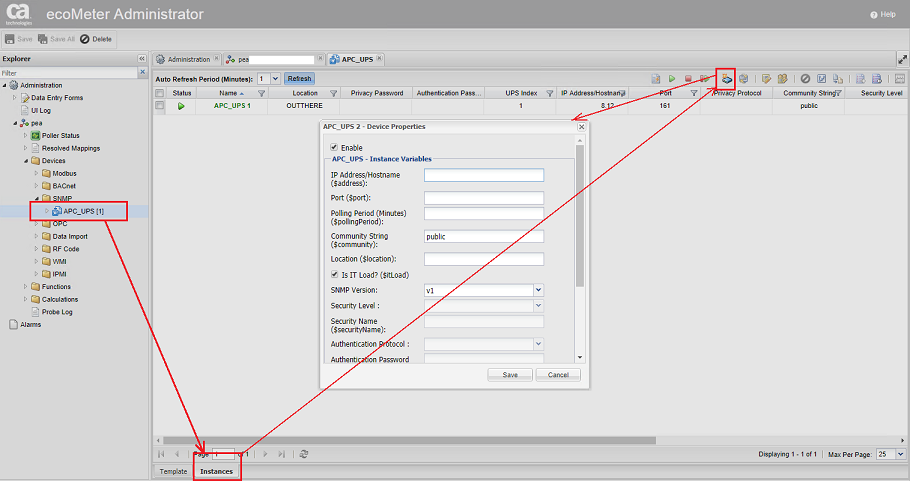

- next you will want to add a device

- find a device in that has sysobjectid that starts with 1.3.6.1.4.1.318, and start it up under public

- once the device is added select the device and then click the Restart polling button |>

- once the status goes green > you can then open up the ecometer_monitor probe in AC. You should now see your device listed where you can turn on data and alarms:

Additional Information

https://techdocs.broadcom.com/us/en/ca-enterprise-software/it-operations-management/ecometer-for-uim/OC/knowledgeshare/installation-and-deployment-best-practices.html
