Enabling Endevor Quickedit Extensions

book

Article ID: 229064

calendar_today

Updated On:

Products

Endevor Software Change Manager (SCM)

Issue/Introduction

How can the Quickedit Extensions that are delivered with Endevor 18.1 be enabled?

Environment

Release : 18.1

Component : Endevor Software Change Manager

Resolution

To enable the Quick Edit Extensions that are delivered with Endevor 18.1 -

Uncomment the option: CD18102_QE_USER_ROUTINES=ON in the ENCOPTBL (Endevor Options table), then reassemble and relink the table.

Then go into Endevor Quick Edit, select option D Dialog Defaults. Then set Hide User Routine Prompt Text. N

This will show the sample commands when in an Element selection list.  The element selection list will now look like this:

After the above is completed, the extension points are enabled and will be used the defaults that delivered.  The user routine commands that will be available are:

                             User Routines: AL D DN DO DP DU SU T UD UX

The command UD will be the one that updates the User Data. Here is an example of how it would work:

Type UD next to the element you want to add User data:

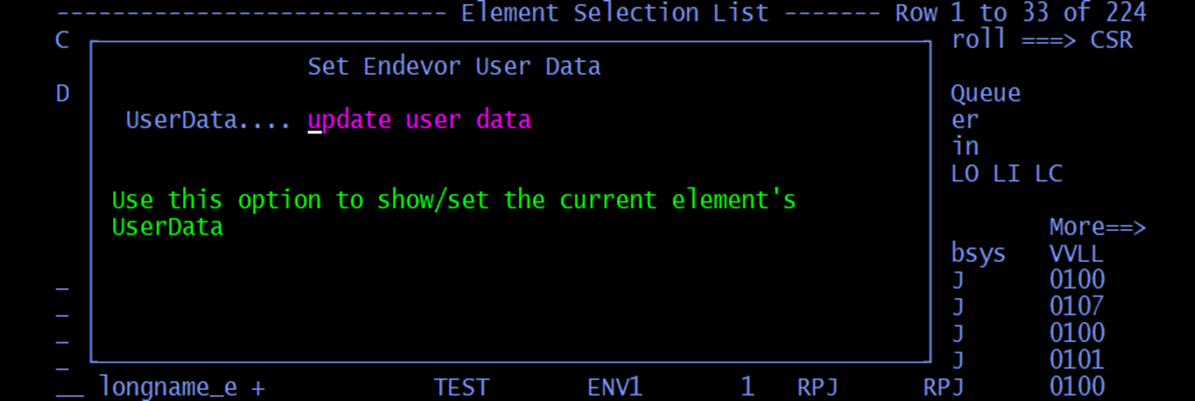

Then hit enter and see the pop-up:

Real easy - the other command that can be used is AL for alter. This is the initial AL (ALTER) Pop-up:

Below is a list of extensions supplied with Endevor 18.1, the command and short explanation -

NDUSRXAL - AL - Display/Update Element Meta-data (CCID, Description, etc.)

NDUSRXD* - D   - DiffTool - Compare any two elements

NDUSRXD - D  - On its own, selects an element or version to compare. When two elements have been selected, compare is invoked.

NDUSRXDN - DN - Use DN to select the "NEW" version to compare.

NDUSRXDO - DO - Use DO to select the "OLD" version.

NDUSRXDU - DU - Compare this element with the next version of the element Up the map.

NDUSRXDP - DP - Compare this element with the Production (top of the map) version.

NDUSRSU - SU - Submit - Submit this element for batch processing

NDUSRXT - T - Transfer - Build Batch Transfer SCL for Element

NDUSRXUD - UD - Display/update the Element UserData

NDUSRXUX - UX - Dump Quick Edit Row Variables

The above can be found in the iprfx.iqual.CSIQCLS0 that is delivered with 18.1.

More information on the Quick Edit User Extensions can be found here:

https://techdocs.broadcom.com/us/en/ca-mainframe-software/devops/ca-endevor-software-change-manager/18-1/using/quick-edit-option/quick-edit-user-extension-points.html
