PAM client is not getting launched using explicit proxy settings with exceptions

Products

• CA Privileged Access Manager (PAM)

Issue/Introduction

In a system where the Symantec PAM Client is configured to use the system proxy settings

Note: The value is blank and the exceptions is blank.

and the system proxy is configured to contain a list of exceptions

The CA PAM Client will fail to launch. Clicking on the CA PAM Client will result in a process being launched (which can be verified by accessing the Task Manager and looking for the CA PAM Client process), but no GUI will show up

Environment

CA Privileged Access, all versions

Cause

When the system is configured to use a proxy, the checkbox "Use the same proxy server for all protocols" is checked by default

However, using a proxy for sockets is not supported in PAM. If this option is checked, the system will try to use it and this may result in the behavior observed

Resolution

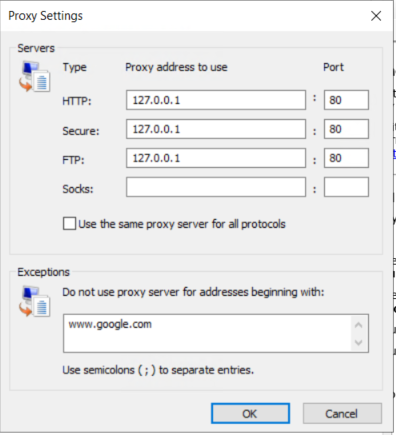

If using the system proxy with exceptions is needed, please make sure that the Use the same proxy server for all protocols checkbox is unchecked in the Advanced settings window of the Internet Options for your system
