SPC-OCC-10269: The web server is not available when trying to Launch Event Configuration Editor

Products

• CA Spectrum

Issue/Introduction

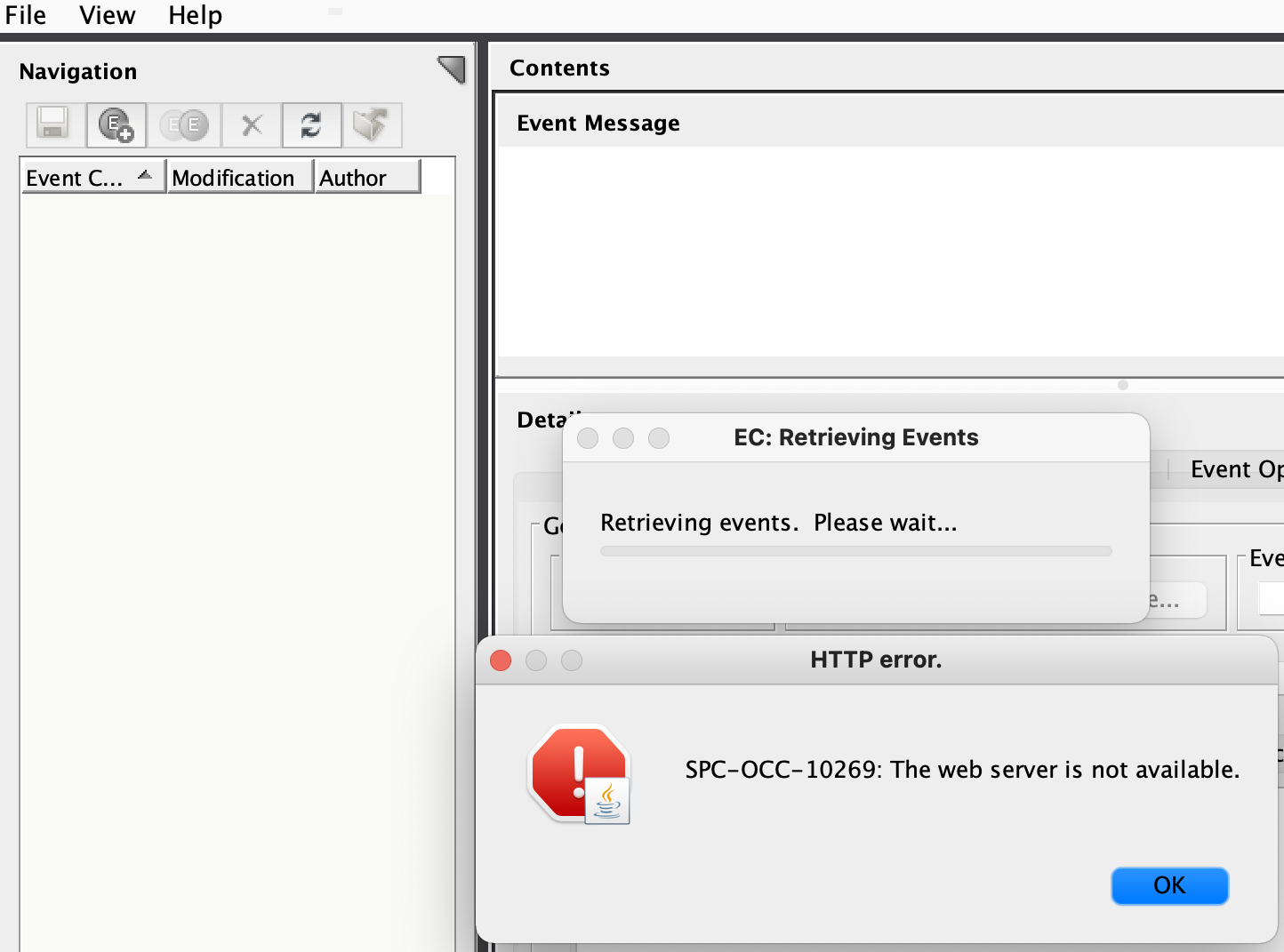

When I attempt to launch ECEditor I receive the following error:

When I checked the catalina.out I see the following error:

        ECServlet.doGet: servletPath = /ec/getEventList query string = nulljava.io.UTFDataFormatException
        at java.io.ObjectOutputStream$BlockDataOutputStream.writeUTF(ObjectOutputStream.java:2164)
        at java.io.ObjectOutputStream$BlockDataOutputStream.writeUTF(ObjectOutputStream.java:2007)
        at java.io.ObjectOutputStream.writeUTF(ObjectOutputStream.java:869)
        at com.aprisma.spectrum.app.ec.common.ECEventMapping.writeObject(ECEventMapping.java:191)
        at sun.reflect.GeneratedMethodAccessor115.invoke(Unknown Source)
        at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)


Environment

Release: All



Cause

• A corrupt or improperly formatted Event configuration file will prevent ECE from loading.

Resolution

• Check the custom/Events/CsEvFormat and SG-Support/CsEvFormat folders on the One Click Server for anything out of the ordinary and move the problematic file(s) out of the folder.
• Close OneClick and restart Tomcat on the OneClick Server.
• Relaunch OneClick and see if you can launch the ECE.
