OneClick WebAPP Will Not Start - SPC-OCC-10251: Could not connect to Web server at xxxxxxxxxxxxxxxx:xxxx

book

Article ID: 224916

calendar_today

Updated On:

Products

CA Spectrum DX NetOps

Issue/Introduction

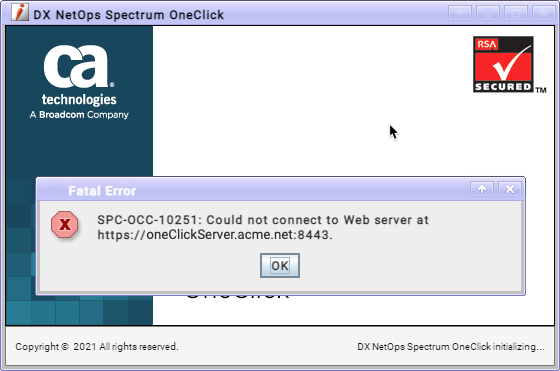

When trying to launch the WebApp from the OneClick web page, the Webapp fails to launch with the following error


SPEC-OCC-10251: Could not connect to Web server at https://xxxxxxxxxx.xxxx.xx:xxxx.

Cause





$SPECROOT/webtomcat/bin/logs/webswing.log
---------------------------------------------------------------------------------
2021-09-28 14:12:31,923 ERROR [Webswing Process Handler] (SwingProcessImpl.java:322) [oneclickwebapp_anonym_43085bbbe4c3_1632838348247]
javax.net.ssl.SSLException: readHandshakeRecord
 at sun.security.ssl.SSLSocketImpl.readHandshakeRecord(SSLSocketImpl.java:1063)
 at sun.security.ssl.SSLSocketImpl.startHandshake(SSLSocketImpl.java:394)
 at sun.security.ssl.SSLSocketImpl.ensureNegotiated(SSLSocketImpl.java:708)
 at sun.security.ssl.SSLSocketImpl.access$100(SSLSocketImpl.java:72)
 at sun.security.ssl.SSLSocketImpl$AppOutputStream.write(SSLSocketImpl.java:961)
 at java.io.OutputStream.write(OutputStream.java:75)
 at com.aprisma.util.net.http.HttpConnection.write(HttpConnection.java:784)
 at com.aprisma.util.net.http.HttpConnection.write(HttpConnection.java:867)
 at com.aprisma.util.net.http.HttpMethod.writeRequestLine(HttpMethod.java:1159)
 at com.aprisma.util.net.http.HttpMethod.writeRequest(HttpMethod.java:1137)
 at com.aprisma.util.net.http.HttpMethod.processRequest(HttpMethod.java:551)
 at com.aprisma.util.net.http.HttpMethod.execute(HttpMethod.java:905)
 at com.aprisma.util.net.http.HttpMethod.execute(HttpMethod.java:818)
 at com.aprisma.spectrum.app.client.jnlp.ClientAppBase.authenticateUser(ClientAppBase.java:1612)
 at com.aprisma.spectrum.app.client.jnlp.ClientAppBase.initialize(ClientAppBase.java:814)
 at com.aprisma.spectrum.app.client.jnlp.ClientAppBase.<init>(ClientAppBase.java:500)
 at com.aprisma.spectrum.app.client.jnlp.ClientAppBase.<init>(ClientAppBase.java:477)
 at com.aprisma.spectrum.app.console.client.ConsoleApp.<init>(ConsoleApp.java:242)
 at com.aprisma.spectrum.app.console.client.ConsoleApp.mainImpl(ConsoleApp.java:559)
 at com.aprisma.spectrum.app.console.client.ConsoleApp$3.run(ConsoleApp.java:503)
 at java.awt.event.InvocationEvent.dispatch(InvocationEvent.java:311)
 at java.awt.EventQueue.dispatchEventImpl(EventQueue.java:758)
 at java.awt.EventQueue.access$500(EventQueue.java:97)
 at java.awt.EventQueue$3.run(EventQueue.java:709)
 at java.awt.EventQueue$3.run(EventQueue.java:703)
 at java.security.AccessController.doPrivileged(Native Method)
 at java.security.ProtectionDomain$JavaSecurityAccessImpl.doIntersectionPrivilege(ProtectionDomain.java:74)
 at java.awt.EventQueue.dispatchEvent(EventQueue.java:728)
 at java.awt.EventDispatchThread.pumpOneEventForFilters(EventDispatchThread.java:205)
 at java.awt.EventDispatchThread.pumpEventsForFilter(EventDispatchThread.java:116)
 at java.awt.EventDispatchThread.pumpEventsForHierarchy(EventDispatchThread.java:105)
 at java.awt.EventDispatchThread.pumpEvents(EventDispatchThread.java:101)
 at java.awt.EventDispatchThread.pumpEvents(EventDispatchThread.java:93)
 at java.awt.EventDispatchThread.run(EventDispatchThread.java:82)
 Suppressed: java.net.SocketException: Broken pipe (Write failed)
  at java.net.SocketOutputStream.socketWrite0(Native Method)
  at java.net.SocketOutputStream.socketWrite(SocketOutputStream.java:111)
  at java.net.SocketOutputStream.write(SocketOutputStream.java:155)
  at sun.security.ssl.SSLSocketOutputRecord.encodeAlert(SSLSocketOutputRecord.java:81)
  at sun.security.ssl.TransportContext.fatal(TransportContext.java:355)
  at sun.security.ssl.TransportContext.fatal(TransportContext.java:267)
  at sun.security.ssl.SSLSocketImpl.startHandshake(SSLSocketImpl.java:397)
  ... 32 more
Caused by: java.net.SocketException: Broken pipe (Write failed)

Environment

Release : 20.2.x / 21.2.x

Component : Spectrum OneClick

- HTTPS enabled
- Common Access Card Integration enabled

Resolution


The webswing.config file vmArgs did not have the keyStore parameters defined (There is a trustStore entry and a separate keyStore).


Modified the webswing.config file adding the keyStore and keyStorePassword entries, restarted webtomcat


$SPECROOT/webtomcat/webswing/webswing.config

    "vmArgs" : "-Xmx1024m -Djavaws.cfg.jauthenticator=true -DbrowserIp=${clientIp} -Dsun.awt.noerasebackground=true -Duser.timezone=${clientTimeZone} -Djavax.net.ssl.trustStore=${SPECROOT}/custom/keystore/cacerts -Djavax.net.ssl.trustStorePassword=changeit -Djavax.net.ssl.keyStore=${SPECROOT}/custom/keystore/cacerts -Djavax.net.ssl.keyStorePassword=changeit",




Note: If modifying the entry, make sure that the entry ends with the closing double quote followed by a comma ",
