Scheduled workflow not listed in DUX

book

Article ID: 221940

calendar_today

Updated On:

Products

CA Automic Dollar Universe

Issue/Introduction

Can you explain why the DUX doesn't list down the tasks?

The below steps are carried out to setup the Job Run

  • A node named DUADMIN02

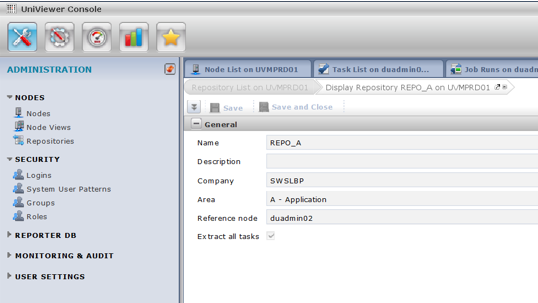

  • Create a repository REPO_A

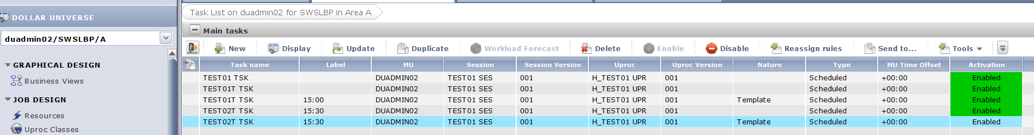

  • Create a template task in A, named "TEST02T TSK" and validate by executing a Job run.

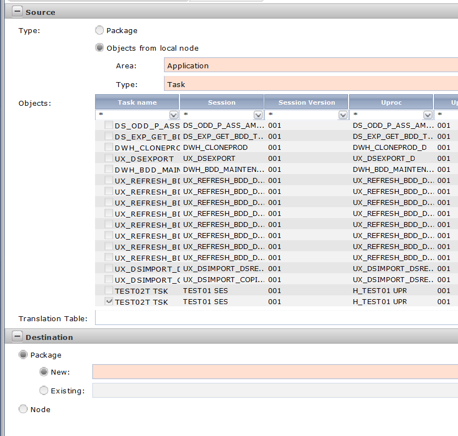

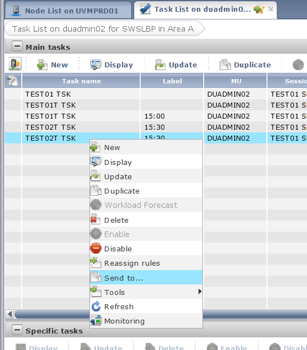

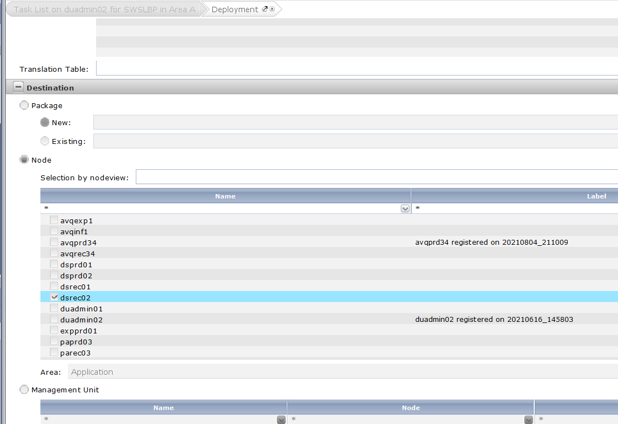

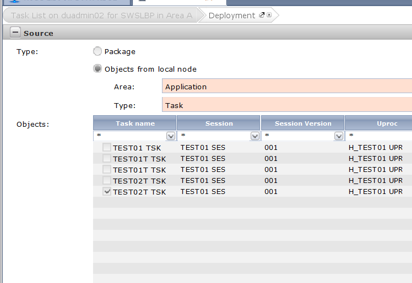

  • Deploy the template to Node DSREC02.



  • Deploy the task on DSREC02 as normal task

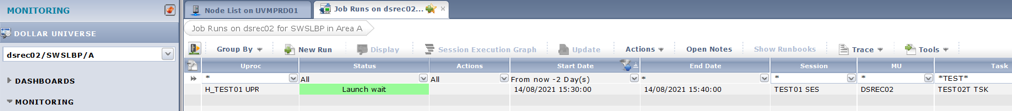

  • Validate the task deployed by executing a Job run on DSREC02

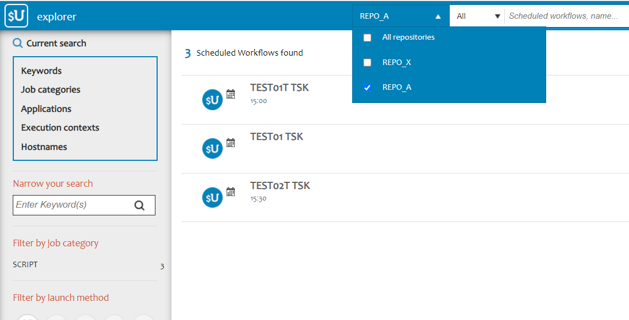

On reviewing the available workflow in DUX the template from DSREC02 doesn't show.



Cause

The behavior is an expected behavior of product. The reason DUX not list down the Task as it was not deployed to respective Management Unit (MU)

Environment

Release : 6.10

Component : CA Automic Dollar Universe(AUTOMIC DOLLAR UNIVERSE)

Sub-Component: DOLLAR UNIVERSE EXPLORER (DUX)

Resolution

Deploy the Task to MU on DSREC02 and it will be listed by DUX under scheduled workflows.
