Unable to see reports in CABI

Products

• CA Spectrum
• DX NetOps

Issue/Introduction

Unable to see the reports on cabi

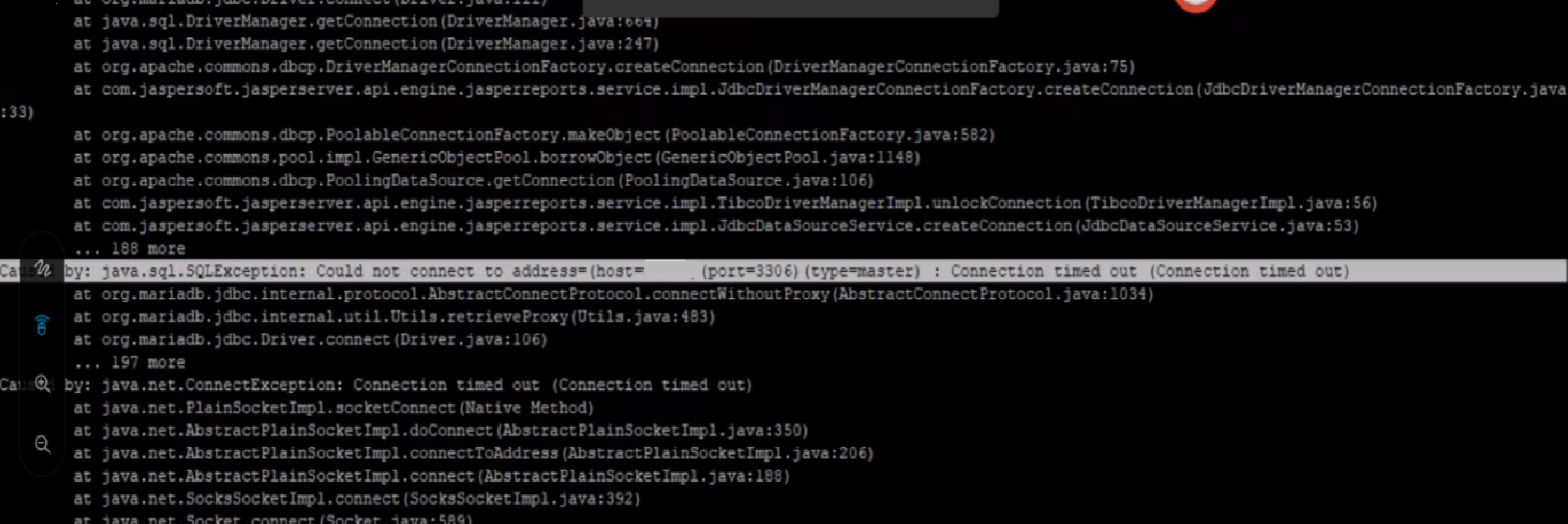

Jasperserver.log shows below error

java.sql.SQLException: Could not connect to address=(host=OneClickSrvr)(port3306)(type=master) : Connection timed out (Connection timed out)



Environment

Release : All Supported Versions

Component : Jaspersoft for CA Spectrum

Cause

Unable to communicate with mysql on port 3306 because of firewall blocking the port

Resolution

As per the jasperserver.log 3306 has a connection timed out error
java.sql.SQLException: Could not connect to address=(host=OneClickSrvr)(port3306)(type=master) : Connection timed out (Connection timed out)

Ensure that you enabled below ports bi directional between oneclick server and cabi server

14001-14006 (Corba)

8080 (OC Tomcat Port)

8443 (OC Tomcat SSL port)

3306 (mysql)
3307 (mysql on Linux)

5432 (Jasper Postgres)

8082 (Jasper Tomcat)



Recycle Oneclick Tomcat and mysql services

Stopped below services
Spectrum Tomcat
Spectrum Process Daemon
(check if mysql also stopped or not, with process daemon stop mysql service should be stopped)

Started below services
Spectrum Process Daemon (Ensure spectrum mysql service also started)
Spectrum Tomcat



Recycle services on CABI Server

cd ${CABI-HOME}
./stopServers.sh
./startServers.sh
