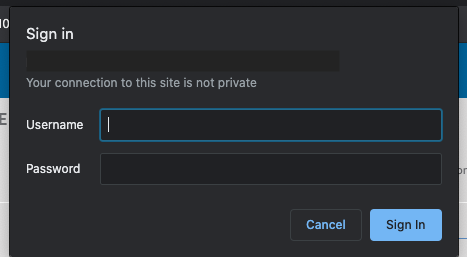

When attempting to access Insight in AAI I keep getting prompted for username and password in a pop up box.

book

Article ID: 220580

calendar_today

Updated On:

Products

Automic Automation Intelligence

Issue/Introduction

When attempting to access Insight in AAI I keep getting prompted for username and password in a pop up box.



Environment

Release : 6.x



Resolution

If Insight and AAI are different servers, which is recommended, you must access AAI with the Fully Qualified Domain Name(FQDN) of the AAI server.

Also both servers need to have the same domain name suffix in the FQDN.

The Insight installation script should have also use the FQDN of the AAI server during installation(if not you can update the file below), and the Reporting Configuration in the AAI website must specify the FQDN of the Insight server.

Below are the places you need to set the respective FQDN's of the two servers and ensure the domain names are the same.


1. Report Configuration tab - Reporting Server must be updated with a FQDN that has the same domain as the AAI server.




2. Check the applicationContext-externalAuth-preAuth-mt.xml in the <Install Dir>\apache-tomcat\webapps\jasperserver-pro\WEB-INF on the insight server and look for the jawsBaseUrl which should be set to the FQDN of the AAI server like below.


<property name="jawsBaseUrl">
                    <value>http://<FQDN of AAI Server>:8080/aai/api/</value>



3. When accessing Insight reports, you must also use the FQDN in the browser.


If the FQDN's domain names match up in all places and the FQDN's resolve in DNS  you should see the full list of reports when clicking on the Insight tab like below.


Additional Information

See also https://knowledge.broadcom.com/external/article?articleId=205564 as this can also cause you not to see your Insight Reports or see no data returned when running an Insight report.
