How to configure a monthly report for all devices in UIM CABI
Article ID: 220232
Updated On:
Products
Issue/Introduction
The monthly report would show all devices cpu, memory, disk:
|
Server CPU Utilization |
CPU utilization reports with historical trending |
Monthly |
|
Server Memory Utilization |
Memory and swap utilization reports with historical trending |
Monthly |
|
Server Disk Utilization |
Disk utilization report for all storage allocated to a server with historical trending |
Monthly and Quarterly Summary |
Environment
Release : 20.3.3
Component : UIM - CABI
Cause
- Reporting requirements
Resolution

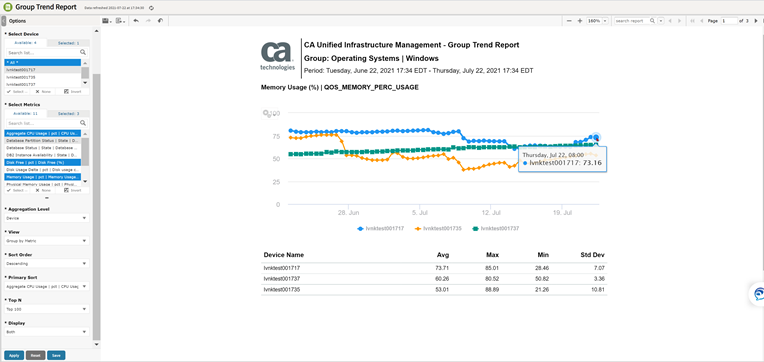

Health Reports->Group Trend/TopN Reports
Note that Group Trend Reports list the devices with an average, min, max and standard deviation metric values.
With TopN reports the setting is currently limited but can be modified to a larger value for TopN, e.g., can be changed from 100 to 500, or 1000, etc. by logging into the CABI server directly (/cabijs link). For instructions on how to change this setting, please refer to:
Extend top N number in cabi reports that are limited to 25
https://knowledge.broadcom.com/external/article/212326
Note that if you increase the TopN, it can take anywhere from 10-15-20 minutes or even 1-2 hours for the final report to render depending on how many metrics/how much data is being calculated/fetched for the report.
A completed report once rendered may span several pages if more than one metric is reported on, e.g., CPU, Memory, Disk etc.
Additional Information
UIM 20.3 - Quick Start Guide for Creating a simple Ad Hoc report on a single metric for a group of devices to be able to set aggregation
https://knowledge.broadcom.com/external/article?articleId=206349
Extend the number of Top N sources beyond 100 in the Top N Report
https://knowledge.broadcom.com/external/article?articleId=210562
