Problem for defining SSL Context for Kafka Assets

Products

• Service Virtualization

Issue/Introduction

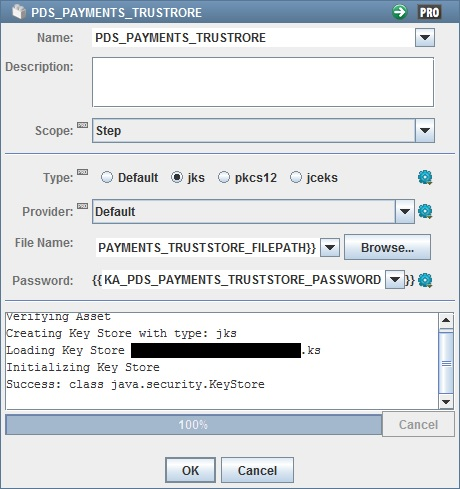

When defining the SSL Context for Kafka Assets defined the Trust Store and Key Store which passwords defined as DevTest Property Reference style like below:

However, the verification for SSL Context level got the error messages like below:

Verifying Asset
Autopopulated Trust Store with PDS_PAYMENTS_TRUSTSTORE (Trust Manager)
Autopopulated Key Store with [email protected]_PAYMENTS_KEYSTORE (Key Manager)
Creating SSL Context with protocol: TLSv1.2
Creating Key Store with type: jks
Loading Key Store <cert file name>
Initializing Key Store
Error: Error accessing key null + in keystore: Password must not be null

If the password definitions in Trust and Key store are defined with "Normal editor", then this problem does not happen.

Environment

Release : 10.6

Component : CA Service Virtualization

Cause

This is a known problem in DevTest 10.6.

Resolution

There are workarounds of this problem.

1. Use "Normal editor" for defining the password field

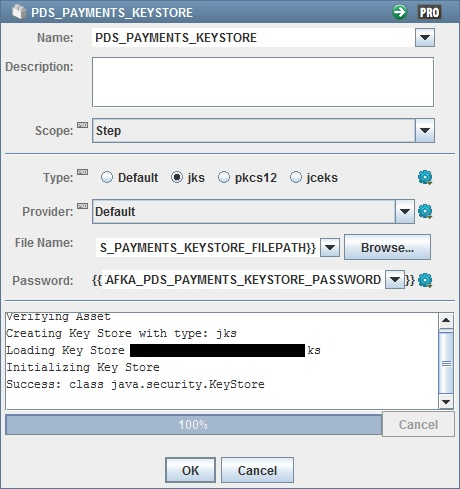

2. Add Key Manager definition from SSL Context like below:

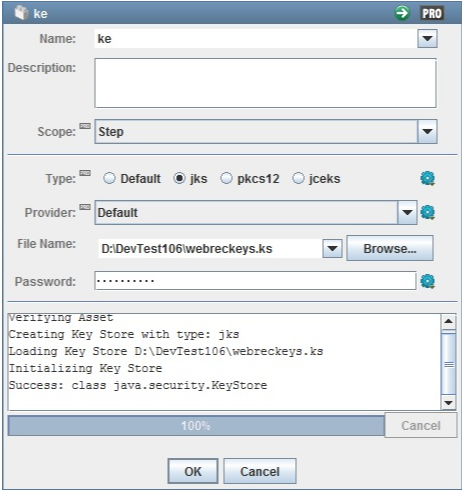

   and define the Key Manager like below:

   Then the error message was disappeared.
