How to know which servers are monitored and generating QOS metrics and which are not in UIM?

Products

• DX Unified Infrastructure Management (Nimsoft / UIM)
• CA Unified Infrastructure Management On-Premise (Nimsoft / UIM)
• CA Unified Infrastructure Management SaaS (Nimsoft / UIM)

Issue/Introduction

How to know which servers are monitored and providing metrics and which are not?

Environment

• Release: 20.4, 23.4
• Component: UIM OPERATOR CONSOLE - INVENTORY

Resolution

UIM 23.4 CU3 and above
Monitoring Governance provides comprehensive and transparent information about individual devices or groups.
In the OC->Inventory, then select a device or group-> then select Monitoring Governance

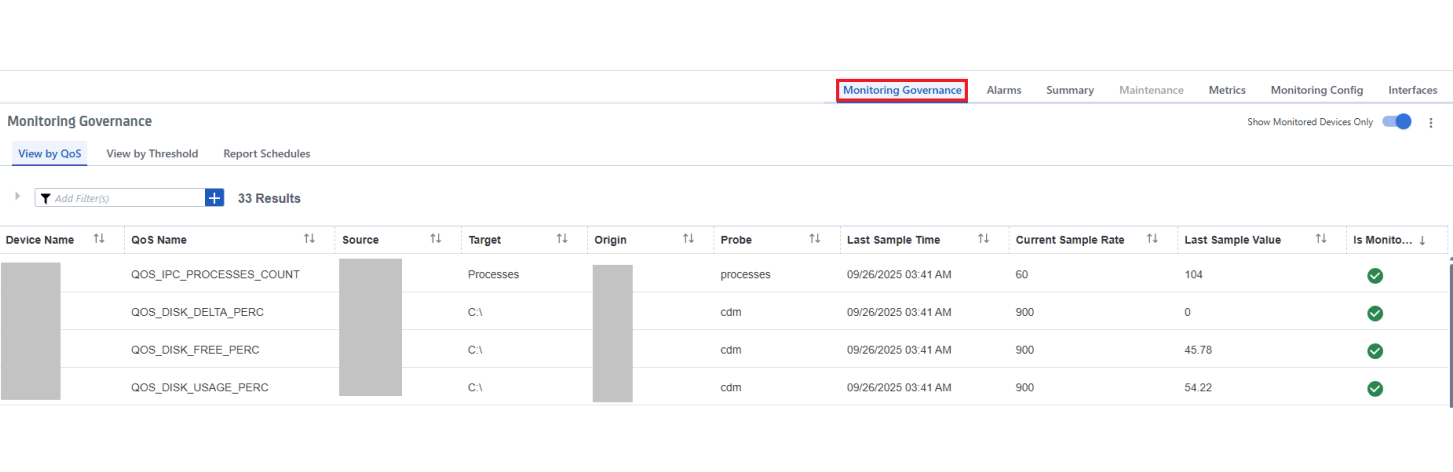

Screenshot example below:

- For detailed information about the robots with monitoring probes run the below queries on the database:

--This returns the listing of all devices that are reporting metric data:

select
cs.name
, ci.ci_name
,sd.robot
,cs.create_time
,cs.change_time
,cs.alive_time
, cb.met_description
, ci.ci_id, ci.dev_id
, cd.probe_name
,sd.probe
,sd.qos
, cm.ci_metric_id
, sd.table_id
, sd.r_table
, sd.h_table
, sd.v_table
from cm_configuration_item ci
join cm_device cd on cd.dev_id=ci.dev_id
join cm_computer_system cs on cs.cs_id=cd.cs_id
join cm_configuration_item_metric cm on cm.ci_id=ci.ci_id
join cm_configuration_item_metric_definition cb on cm.ci_metric_type=cb.met_type
join s_qos_data sd on sd.ci_metric_id=cm.ci_metric_id
order by alive_time desc

--This gets the listing of all those devices that are NOT reporting current metric data:

select
cs.name
, ci.ci_name
,sd.robot
,cs.create_time
,cs.change_time
,cs.alive_time
, cb.met_description
, ci.ci_id, ci.dev_id
, cd.probe_name
,sd.probe
,sd.qos
, cm.ci_metric_id
, sd.table_id
, sd.r_table
, sd.h_table
, sd.v_table

from cm_configuration_item ci
join cm_device cd on cd.dev_id=ci.dev_id
join cm_computer_system cs on cs.cs_id=cd.cs_id
join cm_configuration_item_metric cm on cm.ci_id=ci.ci_id
join cm_configuration_item_metric_definition cb on cm.ci_metric_type=cb.met_type
join s_qos_data sd on sd.ci_metric_id=cm.ci_metric_id

where
alive_time < dateadd(day, -1, getdate())
--and sd.probe ='cdm'
--and sd.source like 'machinename%'
--and cs.alive_time < '2025-06-01'
--where cs.name = 'machinename' order by table_id
order by alive_time desc

Additional Information

Another possible reason why the 'Monitored by' column for a given device doesn't show the hub, robot, or monitoring probe is that it is blacklisted in cm_blacklist_computer_system table.

Search for it in the table using-> select * from cm_blacklist_computer_system
