Client Automation - How to configure a proxy web in CIC with mode Online Export ?

book

Article ID: 213250

calendar_today

Updated On:

Products

CA Client Automation - IT Client Manager CA Client Automation

Issue/Introduction

In CIC in mode Online Export, it is possible to configure a HTTP proxy for CIC (download of list patches and software signatures).





But how configure the Proxy Web for the download of PM Patches ?

Cause

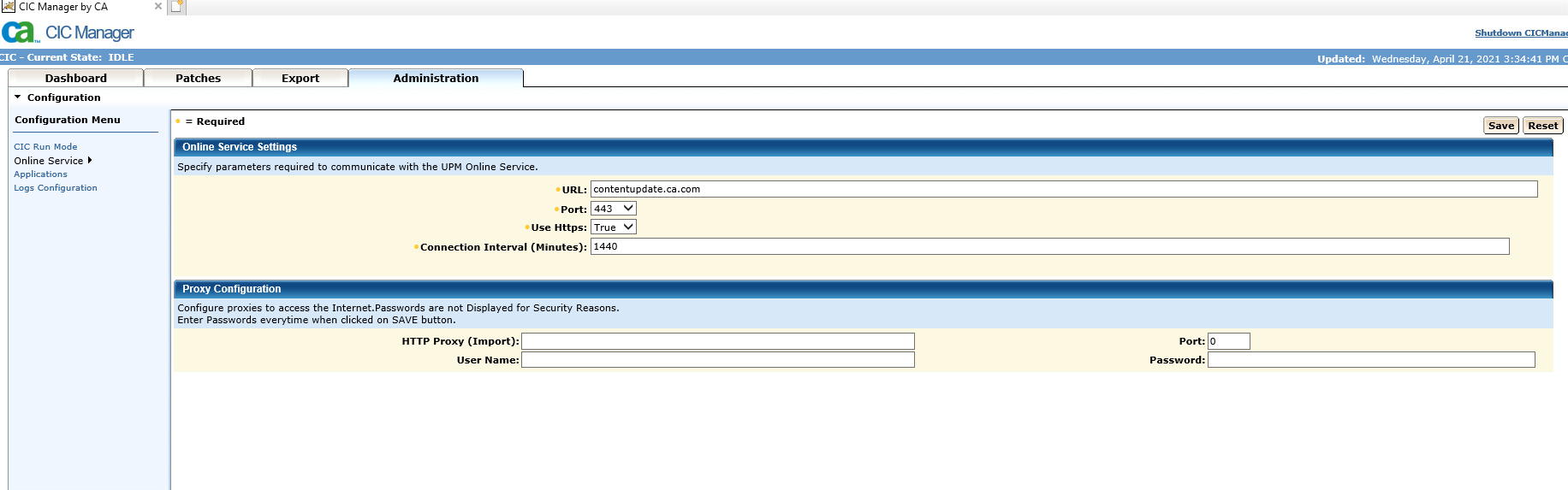

CIC Manager Web interface does not provide the possibility to fill the Web proxy name and port used the download of patches.

Environment

Client Automation 14.0 SP2

Resolution

1- Open a case at CA Broadcom Technical Support and ask for the fix T55V217.

2- Install the fix T55V217 on CIC (Online Export).

3- Stop CIC Manager and make sure that service "CA Content Import Client Service" is not running

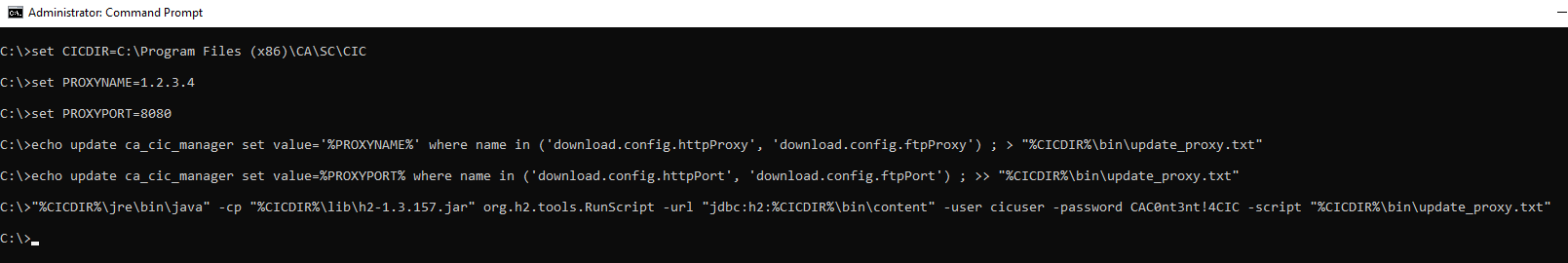

4- Open a cmd with Administrative privileges and execute these 6 lines.
Put the correct values in the 3 first lines.

set CICDIR=C:\Program Files (x86)\CA\SC\CIC
set PROXYNAME=1.2.3.4
set PROXYPORT=8080
echo update ca_cic_manager set value='%PROXYNAME%' where name in ('download.config.httpProxy', 'download.config.ftpProxy') ; > "%CICDIR%\bin\update_proxy.txt"
echo update ca_cic_manager set value=%PROXYPORT% where name in ('download.config.httpPort', 'download.config.ftpPort') ; >> "%CICDIR%\bin\update_proxy.txt"
"%CICDIR%\jre\bin\java" -cp "%CICDIR%\lib\h2-1.3.157.jar" org.h2.tools.RunScript -url "jdbc:h2:%CICDIR%\bin\content" -user cicuser -password CAC0nt3nt!4CIC -script "%CICDIR%\bin\update_proxy.txt"
