Cabi report scheduler cannot send the email for UIM reports due to authentication errors

Products

• DX Unified Infrastructure Management (Nimsoft / UIM)

Issue/Introduction

CABI report scheduler not sending reports

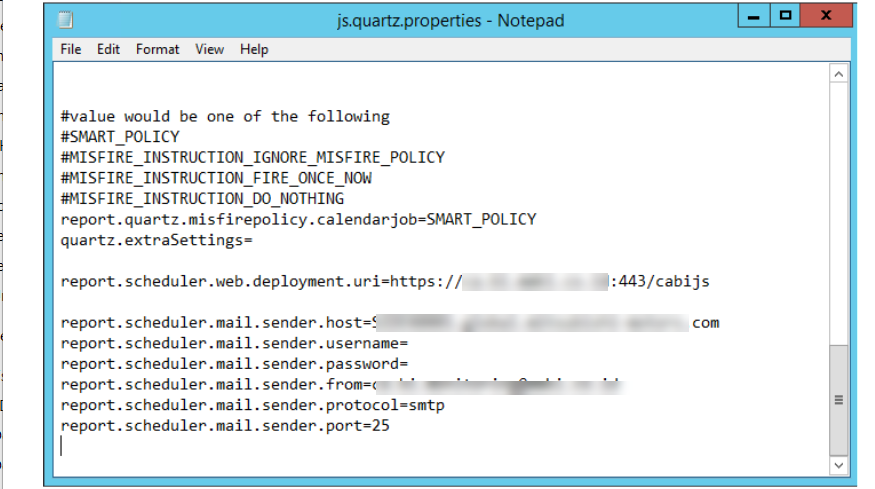

Configured  js.quartz.properties as below

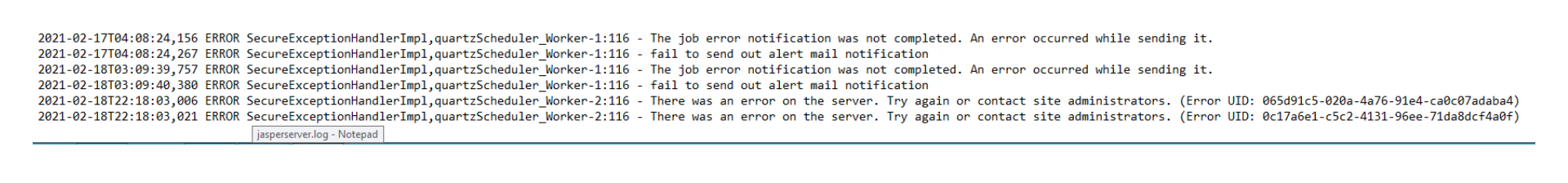

Can see below errors in jasperserver logs

Can telnet to the smtp server using FQDN and IP with required port from cabi server

Still not receiving an email from report scheduler.



Environment

Release : 20.3

Component : UIM - CABI

Bundled cabi

Resolution

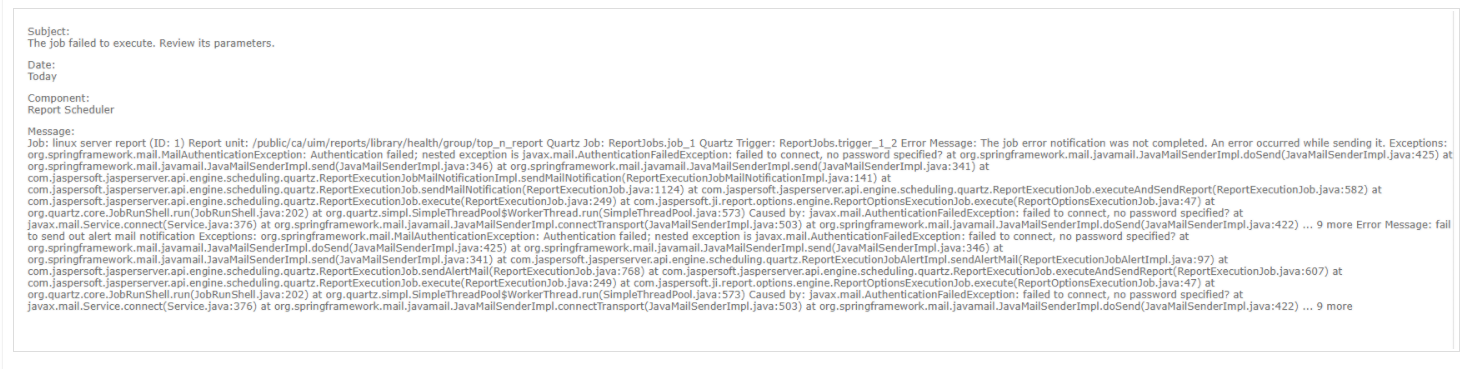

Observed authentication error messages in messages window in CABI for scheduled reports failing to execute

This smtp server does not need any authentication

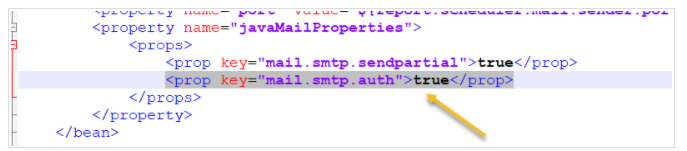

Authentication was enabled in  "applicationContext-report-scheduling.xml"

Take backup of this file in some other folder

Change

\Nimsoft\probes\service\wasp\webapps\cabijs\WEB-INF\ applicationContext-report-scheduling.xml



     Change from “true “to “false” for the below key

               <prop key="mail.smtp.auth">false</prop>

Restart the cabi robot and check again once wasp and cabi probes are active

Note:In use case authentication is required for CABI server and username /password is specified in js.quartz.properties need to use the keyword true for key "mail.smtp.auth"
