UIM 20.3 - Populate CABI Reports in Operator Console - Quick Guide

Products

• DX Unified Infrastructure Management (Nimsoft / UIM)

Issue/Introduction

I have created a series of ad hoc reports and would like to be able to get to them from within Operator Console directly.

Environment

Release: 20.3
Component: Operator Console

Resolution

-login to cabi with superuser and superuser password
-select View > Repository

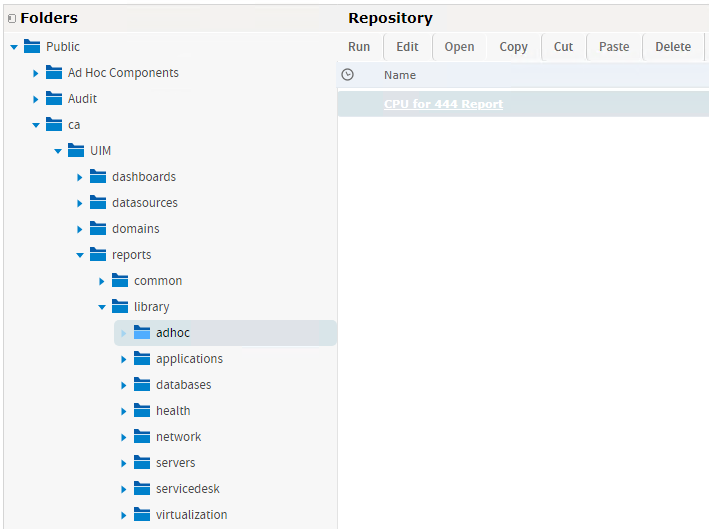

-traverse the Repository until you get to the following path

-as an example, create a new directory under library called adhoc
-next find you adhoc view that you created earlier, and open it
-next select to save and create report, this will ask for the save to location > provide the adhoc directory created
-select to save
-restart the wasp probe on the Operator Console machine

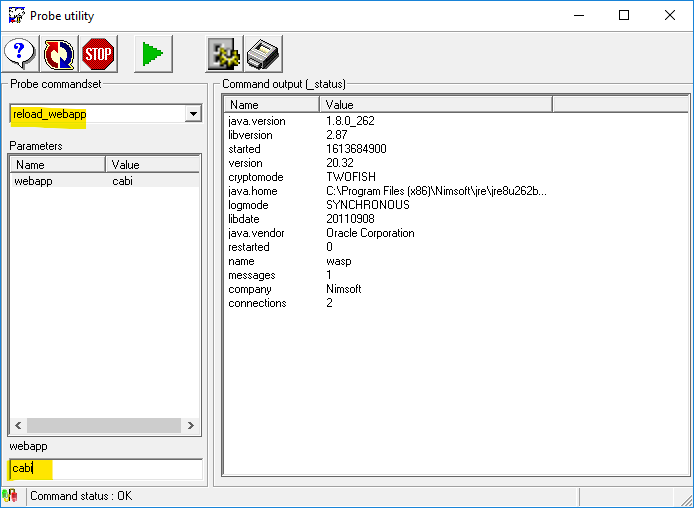

A quicker alternative to restarting the wasp probe on the Operator Console machine is to run the probe callback to restart the cabi webapp on the Operator Console machine.

C:\Program Files (x86)\Nimsoft\bin\pu -u administrator -p <password> /<machine>_domain/<machine>_hub/<robot>/wasp reload_webapp cabi

or

You should now see your report show under a new section in the reports section of Operator Console.

Additional Information

https://techdocs.broadcom.com/us/en/ca-enterprise-software/it-operations-management/unified-infrastructure-management/20-3/configuring-and-viewing-monitoring-data/view-your-reports.html#concept.dita_f870f22f9a8a2c624946438da02b50aaffa15a80_AvailableReports

https://techdocs.broadcom.com/us/en/ca-enterprise-software/it-operations-management/unified-infrastructure-management/20-3/administering/working-with-admin-console/use-the-probe-utility.html
