Spectrum - what is the attribute id for "Alarm Modified Time" field

book

Article ID: 208171

calendar_today

Updated On:

Products

CA Spectrum

Issue/Introduction

What is the attribute id for the "Alarm Modified Time" field in an alarm



Cause

To pass attributes to alarm notifier scripts, the customer requires to know the attribute id for the "Alarm Modified Time" field in any alarm.

Environment

Release : 20.2

Component : Spectrum Alarm & Event Management

Resolution

The product documentation include some of the more common global alarm attributes

However "Alarm Modified Time" is not included in that list. An option to get the attribute is to review the Alarm Table. For this:

1. Browse to OneClick web page
2. Select Administration tab -> Debugging

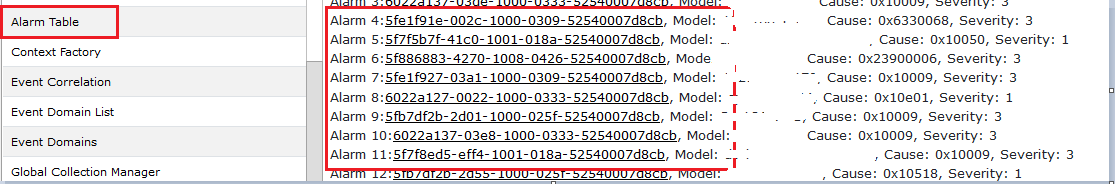

3. Select "Alarm Table" and click an alarm from the list. Better if you select the one with a value for the attribute you are looking for

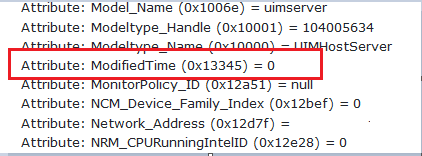

4. In this case, for Alarm Modified Time, the attribute is 0x13345

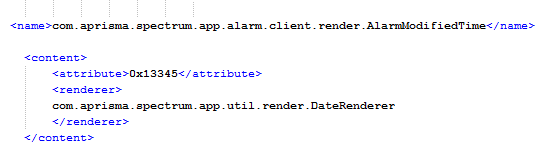

Another option is to review the files under

$SPECROOT/tomcat/webapps/spectrum/WEB-INF/alarm/config

For instance, for this specific attribute, the column-alarmmodificationtime-config.xml file will contain the information

Additional Information

https://techdocs.broadcom.com/us/en/ca-enterprise-software/it-operations-management/spectrum/10-4-3/managing-client-applications/alarmnotifier/customizing-alarmnotifier/passing-ca-spectrum-attributes-to-scripts.html
