Identity Manager RACFv2 fields mapping for NETVIEW


Article ID: 207942


Updated On:


CA Identity Manager


This document links between Identity Manager / Provisioning server and RACF endpoint's NETVIEW attributes


Identity Manager 14.x


According to IBM own documentation, these are the RACF NETVIEW fields:

  • Command or command list to be processed at logon (IC)
  • MCS extended console name (CONSNAME)
  • Type of security check (CTL)
  • Whether unsolicited messages are received (MSGRECVR)
  • Scope classes (OPCLASS)
  • NetView programs in another NetView domain for which operator has authority (DOMAINS)
  • Whether administrator authority is present for the NetView Graphic Monitor Facility (NGMFADMN)
  • NetView Graphic Monitor Facility view span options (NGMFVSPN)

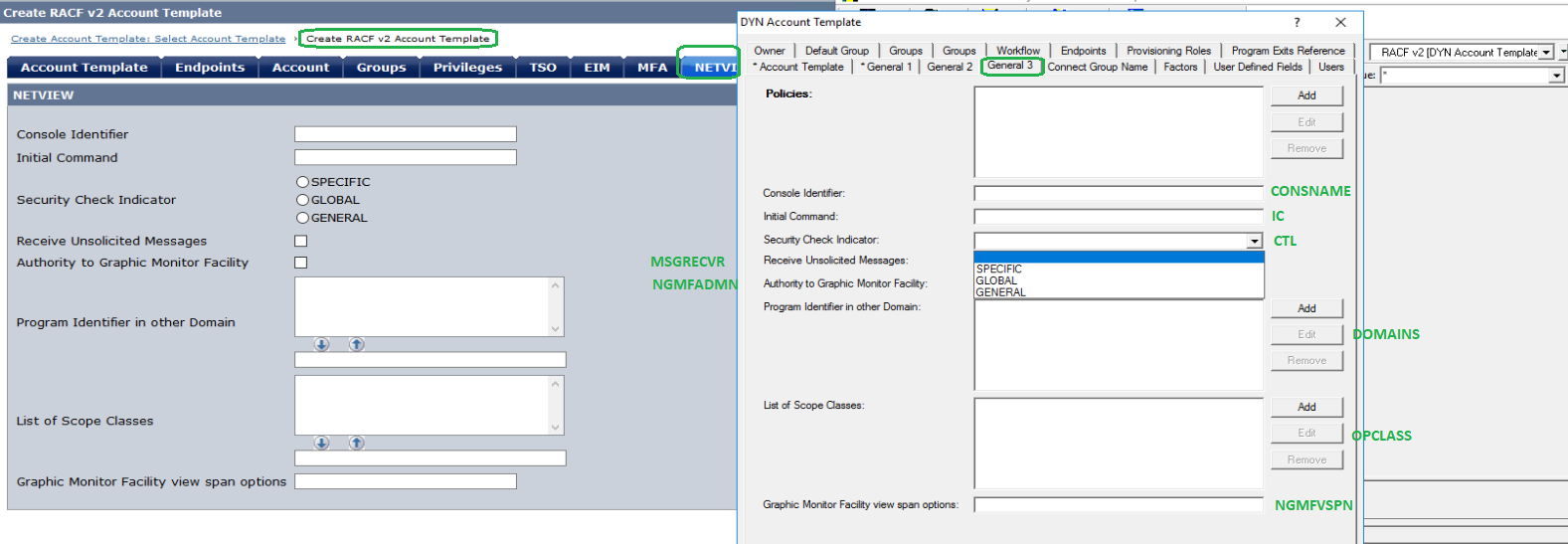

We can therefore correlate the following fields

Additional Information
