RESTful Call For Alarms By Model Handle Returns No Results

Products

• CA Spectrum
• DX NetOps

Issue/Introduction

When trying to use the api to get alarms by mh, the result has 0 alarms.

This worked in 10.2



EndPoint: http://OneClickServer:port/spectrum/restful/alarms
Method: POST

Body: GetAlarmsByModelHandles.xml

<rs:alarm-request throttlesize="10"
xmlns:rs="http://www.ca.com/spectrum/restful/schema/request"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://www.ca.com/spectrum/restful/schema/request ../../../xsd/Request.xsd ">

<!--
This xml can be posted to the Alarms URL to obtain all alarms
on the specified models
-->

<!-- Attributes of Interest -->
<rs:requested-attribute id="0x11f53" />
<rs:requested-attribute id="0x10000" />
<rs:requested-attribute id="0x11f56" />
<rs:requested-attribute id="0x12b4c" />
<rs:requested-attribute id="0x11f4d" />

<!-- Models of Interest -->
<rs:target-models>
<rs:model mh="0x100144d"/>
</rs:target-models>

</rs:alarm-request>





Result: No Alarms Returned

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<alarm-response-list xmlns="http://www.ca.com/spectrum/restful/schema/response" total-alarms="0" throttle="0" error="EndOfResults">
<alarm-responses/>
</alarm-response-list>


Even Though Alarms are present on the Device

Environment

Release : 10.4.2+

Component : SPCAPP - Spectrum Applications

Cause

Starting in Spectrum 10.4.2 when requesting alarms filtered by model_handle it is now required to
  have the model_handle 0x129fa as one of the requested attributes for performance reasons.

Resolution

Include the model_handle attribute in the requested attributes section

<rs:alarm-request throttlesize="10"
xmlns:rs="http://www.ca.com/spectrum/restful/schema/request"

xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://www.ca.com/spectrum/restful/schema/request ../../../xsd/Request.xsd ">

<rs:requested-attribute id="0x10000"/> <!--Model Type Name-->
<rs:requested-attribute id="0x10001"/> <!--Model Type of Alarmed Model-->
<rs:requested-attribute id="0x11f50"/> <!--Cause Code-->
<rs:requested-attribute id="0x12b4c"/> <!--Alarm Title-->
<rs:requested-attribute id="0x11f56"/> <!-- Alarm Severity-->
<rs:requested-attribute id="0x1006e"/> <!--Model Name-->
<rs:requested-attribute id="0x11ee8"/> <!--Model Class-->
<rs:requested-attribute id="0x11f57"/> <!--Assignment-->
<rs:requested-attribute id="0x1296e"/> <!--Originating Event-->
<rs:requested-attribute id="0x129fa" /><!-- Model Handle -->

<!-- Models of Interest -->
<rs:target-models>
<rs:model mh="0x100144d"/>
</rs:target-models>

</rs:alarm-request>

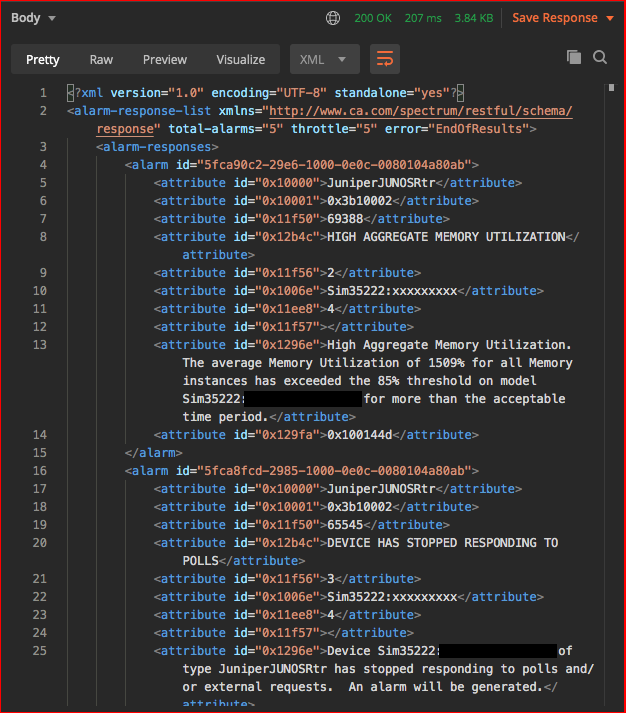

Example



Additional Information



The 10.4.2 documentation does contain a Note to include this

https://techdocs.broadcom.com/us/en/ca-enterprise-software/it-operations-management/spectrum/10-4-2/programming/web-services-api-reference/how-to-use-the-ca-spectrum-web-services-api/restful-resources-nouns/using-alarm-resources.html

The $SPECROOT/RestfulExamples/xml/Alarms/GetAlarmsByModelHandles.xml  file will be updated to include the model handle in a future release.
