UIM 9.x until 20.1 - How to use SLM to view QOS data from the DB and execute queries

Products

• DX Unified Infrastructure Management (Nimsoft / UIM)

Issue/Introduction

How to use SLM to view QOS Data into the DB and Execute queries

Environment

UIM 9.x until 20.1 version

Resolution

First create a SLM page in the UMP

Type SLM as a page name

After select the SLM page it will load in a blank screen

Now insert the SLM portlet to the page

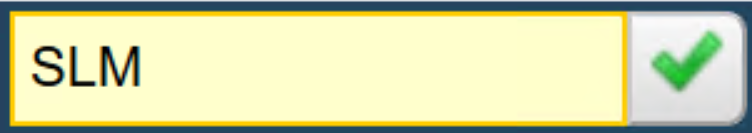

Search for SLM

Go to the last option named: Quality of Service

Hit the black button to open the options and select "order by probe"



Select the desired probe, click on the black button in the right and select "refresh"

Go forward refreshing based on your need

Finally it will show you the option to "view data" to see the QOS info from the DB

You can select the "Table View" tab to check for more details

You can see the table properties name:

Finally you have another option to execute queries into the DB.

Need to go -> Tools -> SQL QUERY
