UIM How can we find configuration details from the Oracle probe

Products

• DX Unified Infrastructure Management (Nimsoft / UIM)

Issue/Introduction

Our customer would like to find out configuration details from the Oracle probe like Profile Name, etc. Is there a way to get this information like in a report?

Environment

Release : Any release of Oracle probe (as of writing this Article, the oracle probe release is 5.45)

Component : UIM - ORACLE

Resolution

You could use the Raw Configure utility to extract the information.


1) Login as adminstrator in adminconsoleapp from browser using the url:

http(s)://<the IP Address of your Primary Hub Server>:<port number>/adminconsoleapp/

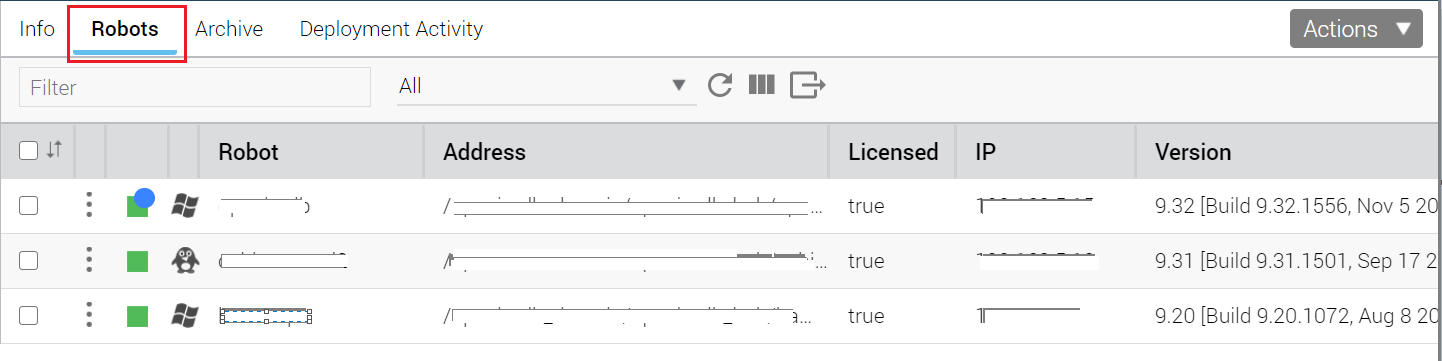

2) Click on Robots then select the appropriate robot (by clicking on the robot name) where oracle probe is deployed:


3) Go to the robot where oracle probe is deployed, click the three inline buttons:


4. Click on "View Probe Utility in New Window":

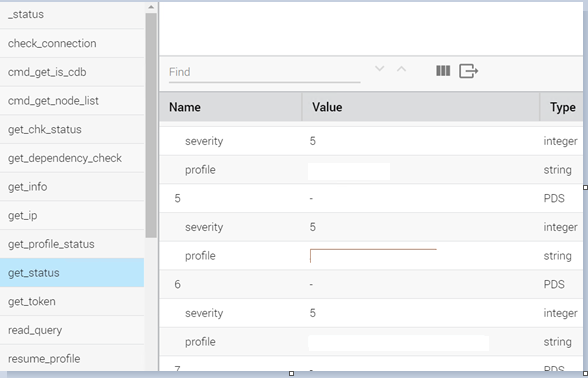

5. Click on "get_status" then click on the green triangle:


6. You would see the profile details:


7. Similarly, you could view different information selecting the different "get_" option:



You could then extract the information required manually from the above outputs and provide them to the client.
