How to display the current CA File Master CAWAOPTS settings
Article ID: 201335
Updated On:
Products
Issue/Introduction
How can I display the current CA File Master Plus CAWAOPTS options?
Resolution
The current CA File Master Plus CAWAOPTS options can be displayed by using a CA File Master Custom Record Layout (CRL) and the data structure defined in a COBOL copybook.
The following can be used on your own risk.
The structure may change by an APAR, PTF or a new release/version of CA File Master.
The real, current structure can be seen when assembling the CAWAOPTS macro.
This is a COBOL copybook example which was tested with release 12.0 in October 2020:
...
*** CAWAOPTC - OPTION RECORD - COBOL DEFINITION
***
*** NOTE: PLEASE KEEP IN SYNC WITH THE DSECT GENERATED BY
*** 'CAWAOPT' MACRO EXECUTION WITHIN 'CAWAOPTS' ASM MODULE
***
01 OPT-INSTALL-EXEC-OPTIONS.
05 OPT-HEADER.
10 OPTS-HEADER-LENGTH PIC 9(8) COMP.
10 OPTS-MOD-LEVEL PIC X(13).
10 OPTS-RELEASE-NUMBER PIC X(10).
10 OPTS-ASSEMBLY-DATE PIC X(15).
10 OPTS-PRODUCT-NAME PIC X(24).
10 OPTS-COPYRIGHT-NOTICE PIC X(50).
10 FILLER01 PIC X(12).
10 OPTS-ASSEMBER-VERSION PIC X(27).
10 OPTS-LENGTH-OF-PARAMETERS PIC 9(8) COMP.
05 OPT-RC-LAYOUT PIC 9(09) COMP.
05 OPT-RC-COMPARE PIC 9(09) COMP.
05 OPT-SYNCLIM PIC 9(09) COMP.
05 OPT-COMPDIFF PIC 9(09) COMP.
05 OPT-CODE-PAGE PIC X(08).
05 OPT-PRINT-LINES-PER-PAGE PIC 9(09) COMP.
05 OPT-CLOSE-INPUT-IND PIC X(01).
05 OPT-CLOSE-OUTPUT-IND PIC X(01).
05 OPT-DDNAME-INFILE PIC X(08).
05 OPT-DDNAME-OLDFILE PIC X(08).
05 OPT-DDNAME-NEWFILE PIC X(08).
05 OPT-RC-TRUNC PIC 9(09) COMP.
05 OPT-RC-NO-RECS-SELECTED PIC 9(09) COMP.
05 OPT-RC-EMPTY PIC 9(09) COMP.
05 OPT-RDW-POS-1-IND PIC X(01).
05 OPT-DDNAME-LOADLIB PIC X(08).
05 FILLER01 PIC X(52).
05 OPT-ONL-CONFIRM-DSN-DEL-IND PIC X(01).
05 OPT-ONL-CONFIRM-MEM-DEL-IND PIC X(01).
05 OPT-ONL-FM-JUMP-W-EQ-IND PIC X(01).
05 OPT-ONL-CONFIRM-PRINT-PARMS PIC X(01).
05 OPT-DEFAULT-SYSOUT-CLASS PIC X(01).
05 OPT-DEFAULT-SYSOUT-COPIES PIC X(03).
05 OPT-SEL-CRITERIA-PARM-DSN PIC X(44).
05 OPT-REFORMAT-PARM-DSN PIC X(44).
05 OPT-DSNLIST-PARM-DSN PIC X(44).
05 OPT-LAYOUT-DSN PIC X(44).
05 OPT-DASD-UNIT PIC X(08).
05 OPT-STORAGE-CLASS PIC X(08).
05 OPT-MAX-CYL PIC S9(09) COMP.
05 OPT-ONL-CLOG-SPACE-PRI PIC S9(09) COMP.
05 OPT-ONL-CLOG-SPACE-SEC PIC S9(09) COMP.
05 OPT-ONL-CLOG-FORCE-IND PIC X(01).
05 OPT-ONL-CLOG-DSN PIC X(44).
05 OPT-IO-EXIT PIC X(01).
05 OPT-DSN-ALAY PIC X(01).
05 FILLER03 PIC X(05).
...
This is the CRL example:
...
*** CA File Master Plus 12.0.0 Custom Record Layout
"CA File Master Plus Options"
* 12.0
IF=()
LAYOUTFILE=your.layout.dsn(CAWAOPTC)
LAYOUTREC=OPT-INSTALL-EXEC-OPTIONS
LAYOUTOFF=496
SKIPFLD=FILLER01
SKIPFLD=FILLER02
SKIPFLD=FILLER03
DEFAULT
...
Change the layout DSN and the member name - which contains the COBOL copybook.
The layout offset can be different. It could be 480 or something else. Usually it starts after IEWP:
...
************
IEWP...ºMOD=
************
...
How to browse the CAWAOPTS module:
-------------------- CA File Master Plus -- Browse Dataset -------------------
COMMAND ===>
Specify Dataset to Browse:
Dataset name ===> 'your.FMMVS12.CDBILOAD'
Member name ===> CAWAOPTS
Volume ===> If dataset not cataloged
Record Layout for Formatted Displays:
Layout dataset ===> 'your.layout.dsn'
Layout member ===> CAWAOPTL
Selection Criteria below or Sel. Criteria Member ===> Scan gens ===> N
===>
===>
===>
Display mode ===> S ( C Character S Single-rec Format M Multi-rec Format )
Browse mode ===> B ( V View B Browse )
...

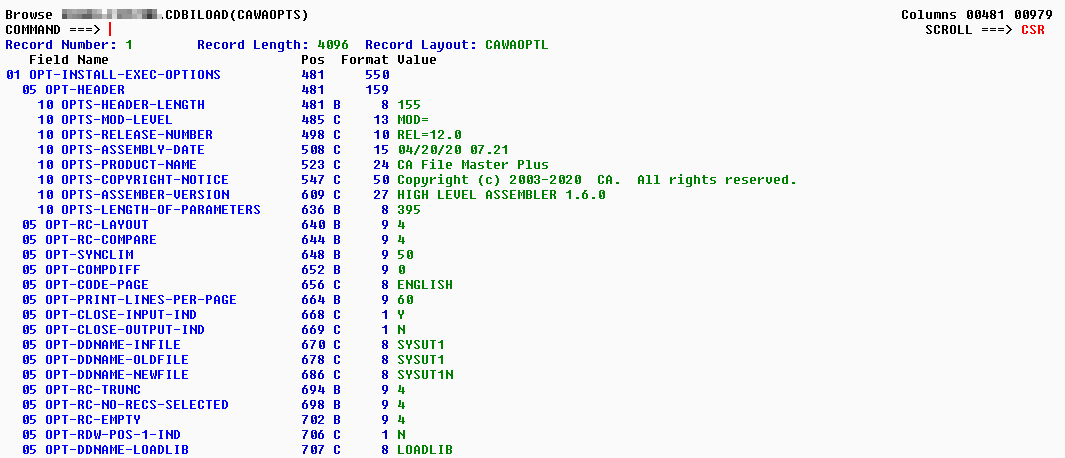

Result (an extract):
...
