Issue/Introduction

BSI provides the capability to define alert devices. Basically, an alert device is a program that gets called by the alert engine and passes various arguments. SOI provides a command line utility for sending information through the universal connector via web service calls. Among others you can create CIs and Send Events/Alarms. Fundamentally this integration is accomplished defining the SOI command line utility in BSI as an Alert Device. Specifically, a wrapper script is defined as the alert device which will parse the BSI alert fields and call the SOI command line utility correctly.

This is a brief high-level description of how you can integrate BSI and SOI in order to get the services from SOI into BSI through the 'SSA Settings' page in BSI.

Environment

CA Business Service Insight (BS) 8.3.5

CA Service Operations Insight (SOI) 4.2 and 4.3

Resolution

Integration Steps

• Setup SOI on the BSI APP Server
  • Copy over and run the InstallSAM installer and install the universal connector client

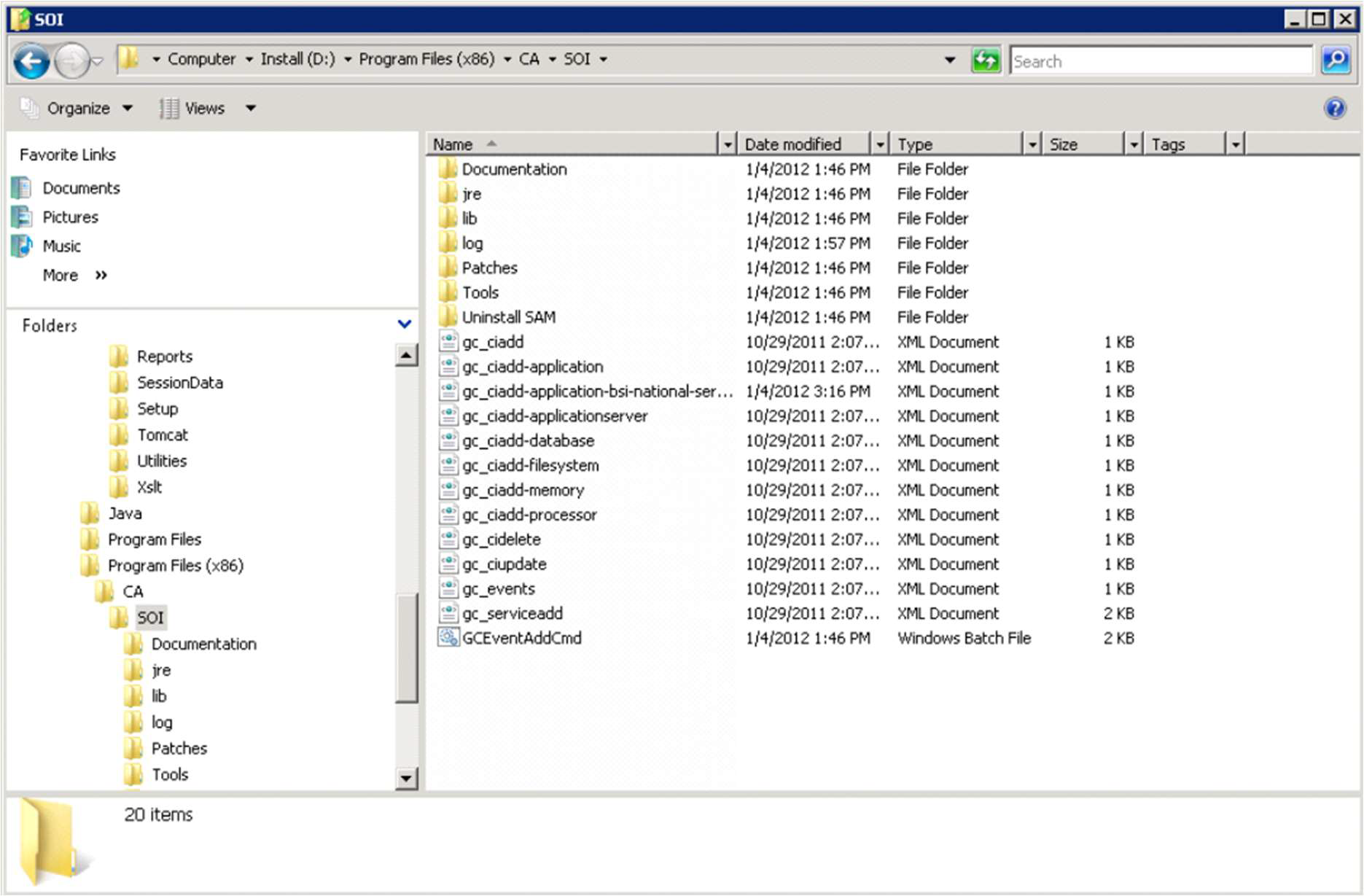

Universal Connector Client Directory Structure

• Create CI and run through Universal Connector
  •  Make XML file with CI Information

<Events>
     <Event>
          <property tag="eventType" value="AddCIEvent" />
          <property tag="instanceID" value="SA_Application:National Help Desks" />
          <property tag="className" value="Application" />
          <property tag="deviceID" value="Device" />
          <property tag="situationMessage" value="Adding a new CI" />
         <property tag="Vendor" value="CA_BSI" />
         <property tag="ProductName" value="CA_BSI" />
     </Event>
</Events>

• Execute command line

GCEventAddCmd -h####.####.####.####:7090 –fgc_ciadd-application-bsi-national-servicedesks.xml

where ####.####.####.#### is the IP address of the SOI host

Refer to Universal Connector Command Line Interface for further details about the SOI Command Line Interface

• Finalize setup in SOI
  • Create the service and application hierarchy
• Test Point: Verify command line interface execution

Sample Command

"D:\Program Files (x86)\CA\"SOI\GCEventAddCmd.bat -h####.####.####.####:7090 -a20121514412382
-i"SA_Application:Help Desk" -cApplication -dCA_BSI -s2 -tQuality -m"SLA Target
Violation Contract [Company A] Metric [Percentage of priority 2 resolutions that occurred
between 61-120 minutes] Target [0] ServiceLevel [7.7]"

where ####.####.####.#### is the IP address of the SOI host

• Create wrapper script for BSI to call

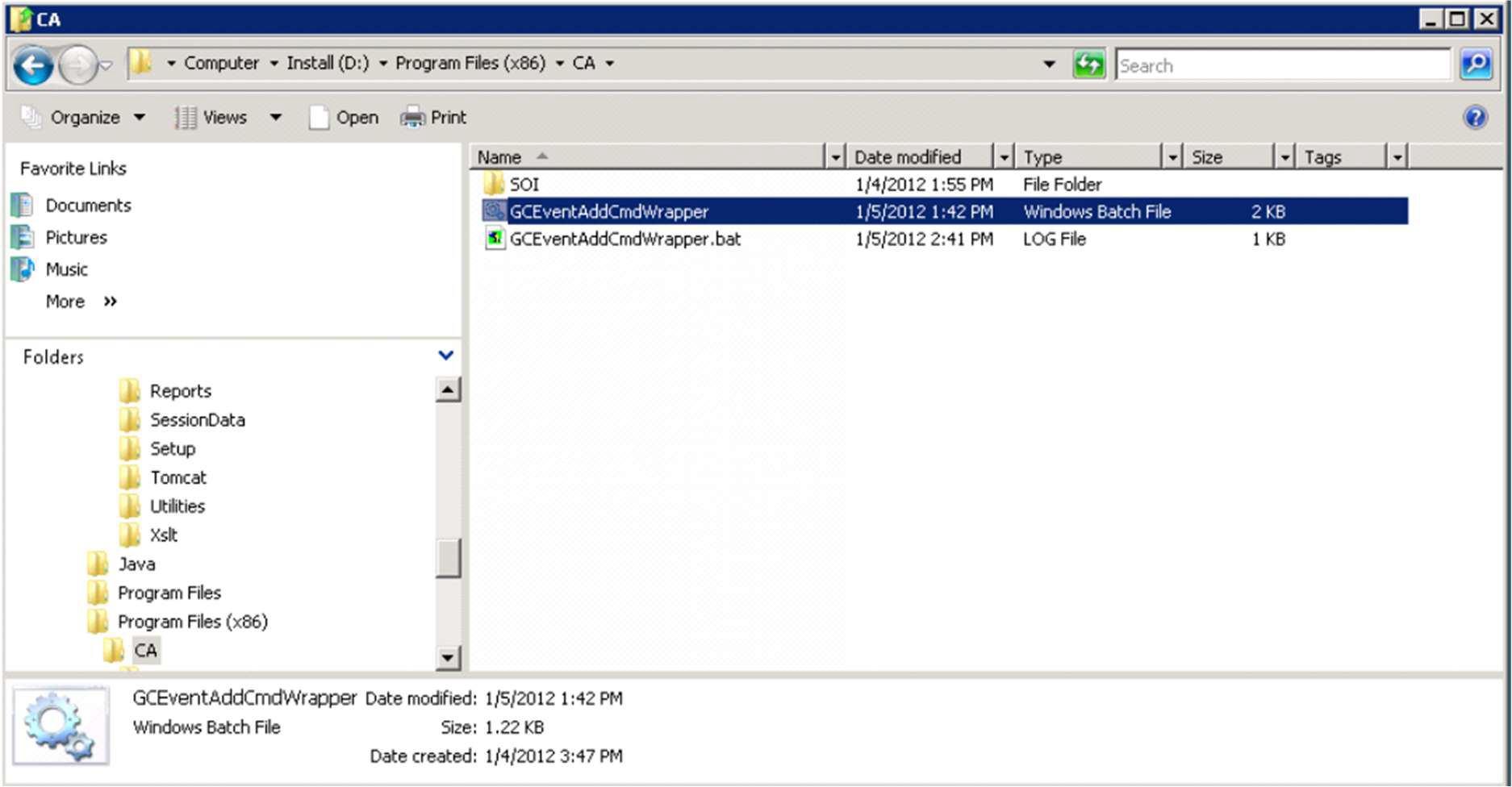

Wrapper script file location

• The wrapper script parses the command line alert values, sent by BSI with an alarm, and builds the command string to execute.

Example Wrapper Batch File

@echo off
setlocal
set COMMAND=SOI\GCEventAddCmd.bat
set CA_HOME="D:\Program Files (x86)\CA\"
set SOI_HOST=<IP Address of SOI host>
set SOI_PORT=7090
set DEVICE=CA_BSI
set DEFAULT_APP=SA_Application
set CLASS_NAME=Application
set TYPE=Quality
rem the following procedure is used to get a timestamp in the form of YYYYMMDDHHMMSSCC
which will be used for both
rem logging and as the *unique alert id.
for /f "skip=1 tokens=2-4 delims=(-)" %%a in ('"echo.|date"') do (
for /f "tokens=1-3 delims=/.- " %%A in ("%date:* =%") do (
set %%a=%%A&set %%b=%%B&set %%c=%%C))
set /a "yy=10000%yy% %%10000,mm=100%mm% %% 100,dd=100%dd% %%
100"
for /f "tokens=1-4 delims=:. " %%A in ("%time: =0%") do @set
UNIQUE=%yy%%mm%%dd%%%A%%B%%C%%D
rem parse the arguments passed to this script to determine the correct CI for SOI
for /f "tokens=1,2 delims=:" %%a in ("%~1") do set service=%%a&set message=%%b
echo %UNIQUE% %CA_HOME%%COMMAND% -h%SOI_HOST%:%SOI_PORT% -a%UNIQUE% -
i"%DEFAULT_APP%:%service%" -c%CLASS_NAME% -d%DEVICE% -s%3 -t%TYPE% -m"%~2
%message%" >> %0.log
%CA_HOME%%COMMAND% -h%SOI_HOST%:%SOI_PORT% -a%UNIQUE% -
i"%DEFAULT_APP%:%service%" -c%CLASS_NAME% -d%DEVICE% -s%3 -t%TYPE% -m"%~2
%message%"
echo Return code: %ERRORLEVEL%

• Create Alert device in BSI which executes the wrapper script and passes values

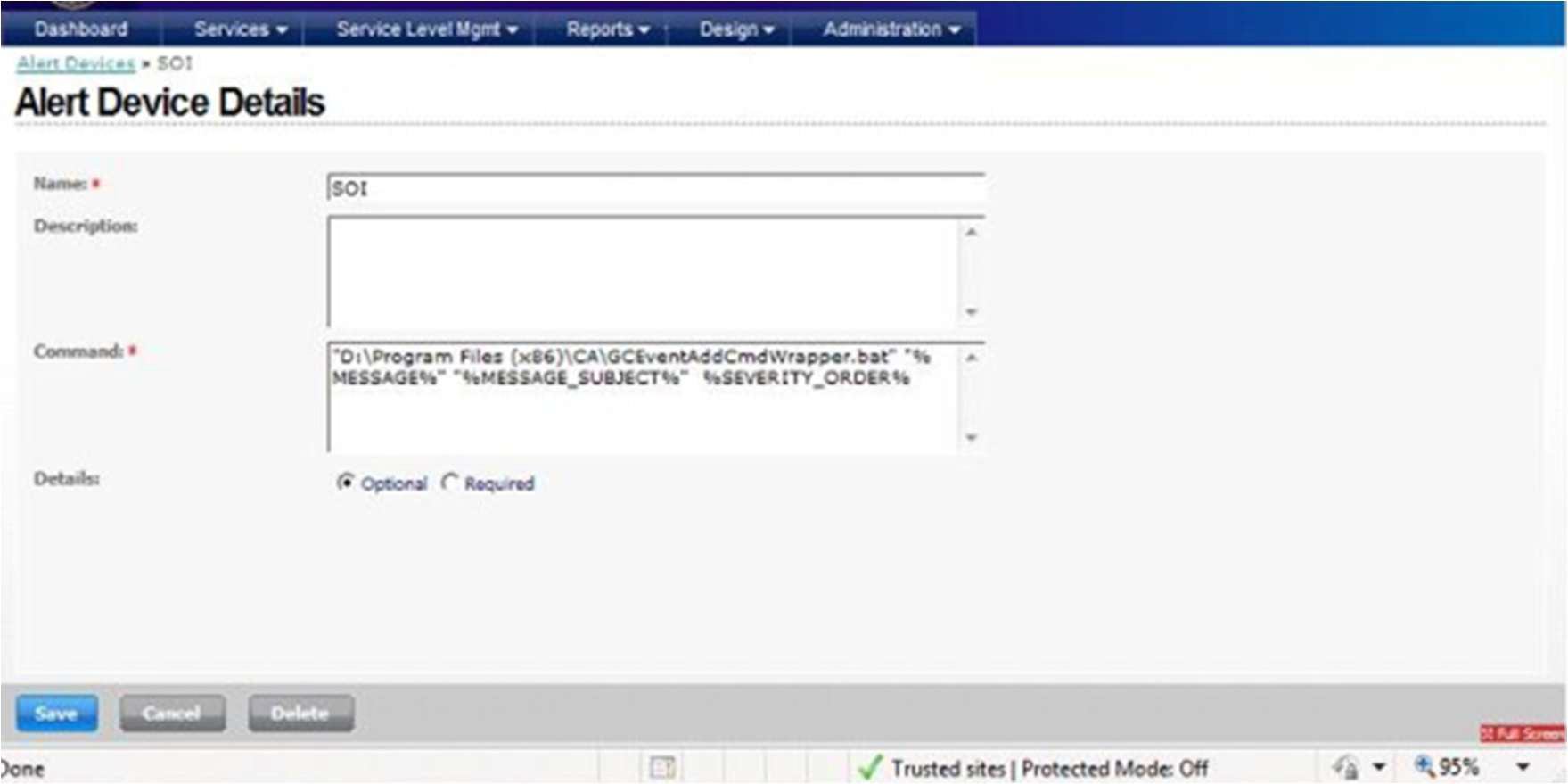

Example BSI Alert Device

• Create Alert recipient that uses the new alert device

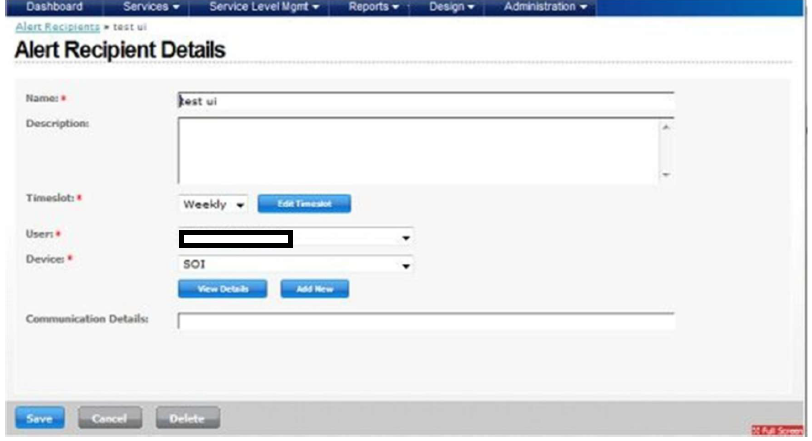

Example BSI Alert Recipient

• Create Alert profile that with correct Message Body value
  • Must start with “#Service:” so wrapper script will function properly. The service needs to be sent to the SOI universal connector client as a specific argument.

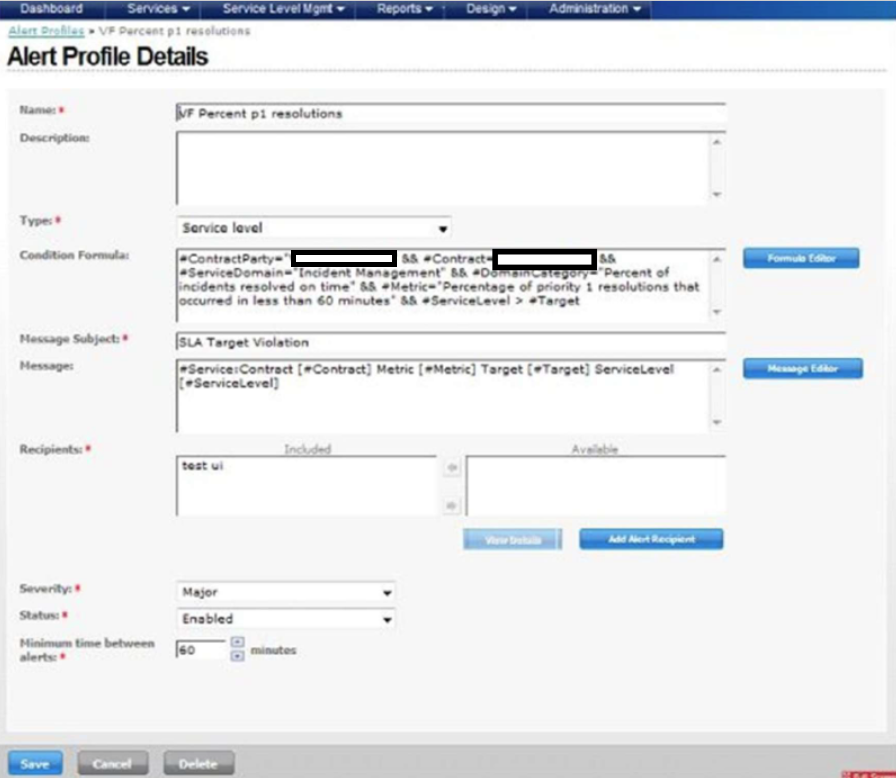

Example BSI Alert Profile

• Test Point: Generate an alarm that meets the defined condition to verify execution.
  • A simple way to test partial functionality is to setup a Login Failure alert profile. You will need to make sure the Message contains a Service: for proper wrapper script function.

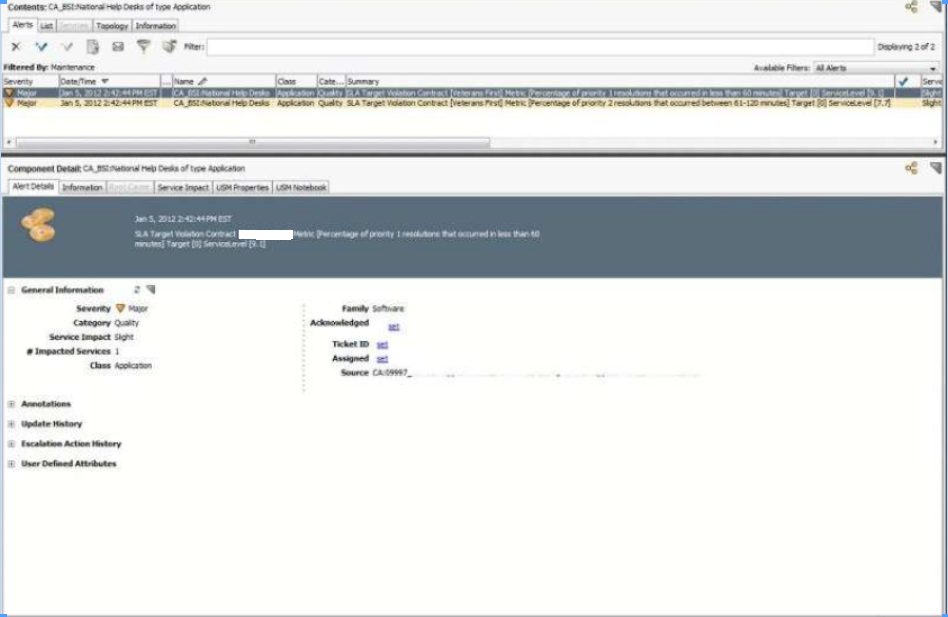

• Successful display of alarm to SOI

If there are any questions or issues, please contact Broadcom Support for further assistance.
