UIM - Unable to see settings icon under inventory for Discovery

book

Article ID: 197490

calendar_today

Updated On:

Products

NIMSOFT PROBES DX Infrastructure Management

Issue/Introduction

Have given below ACL permission:
- discovery
- discovery management
- discovery pie

Somehow the setting icon still invisible for operator role. What other ACL that we need to give to operator role?



Environment

Release : 9.2.0

Component : UIM - DISCOVERY_SERVER

Resolution

1. On the primary hub, check the file \\Nimsoft\probes\service\distsrv\base_acls.cfg and make sure it has the ACL related to Discovery Management.

 If the are not there, you can manually add them by copy pasting the below.

<Discovery Management>
      name = Discovery Management
      desc = Set computer system properties
      access = admin
      type = SDP
 </Discovery Management>


2. In Infrastructure Manager, navigate the distsrv probe on the primary hub.


3. With the distsrv probe selected, press "Ctrl-P" the probe Utility (pu) should appear.

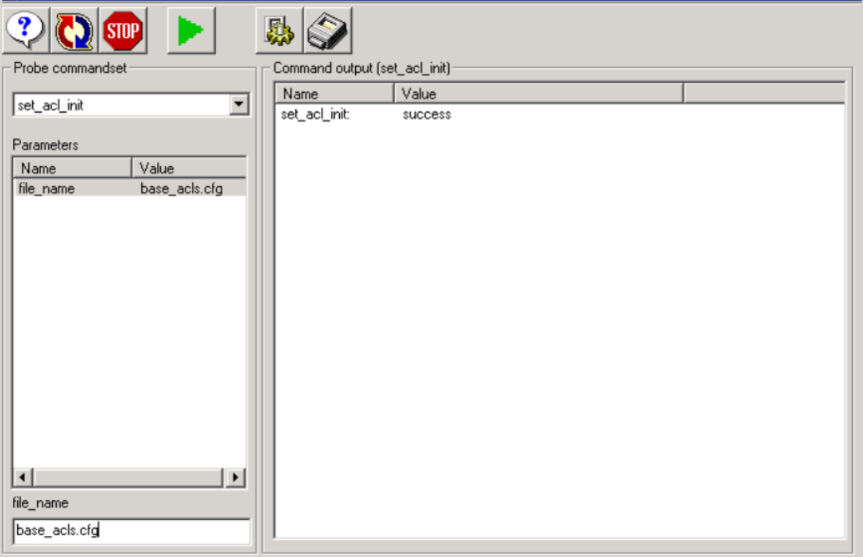

4. In the probe commandset, select callback set_acl_init with the parameter value "base_acls.cfg". The callback updates the security.cfg with the ACLs, it will not delete any ACLs, nor change any ACLs.

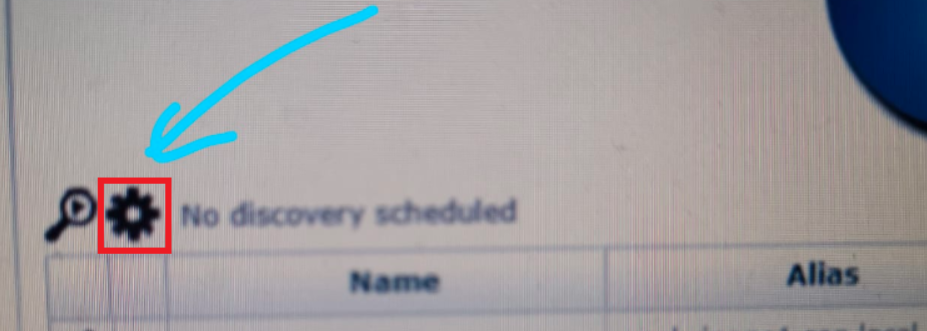

3)Log out and log back in with user with operator ACL in UMP and check the settings icon should be present


Additional Information


ACL Permissions List

https://techdocs.broadcom.com/content/broadcom/techdocs/us/en/ca-enterprise-software/it-operations-management/unified-infrastructure-management/9-0-2/administering/acl-permissions-list.html

Discovery wizard missing for all or some users.

https://ca-broadcom.wolkenservicedesk.com/external/article?articleId=6926
