Missing backend endpoint in the generic backend object in map view screen

book

Article ID: 197240

calendar_today

Updated On: 10-13-2023

Products

CA Application Performance Management Agent (APM / Wily / Introscope) CA Application Performance Management (APM / Wily / Introscope) INTROSCOPE DX Application Performance Management

Issue/Introduction

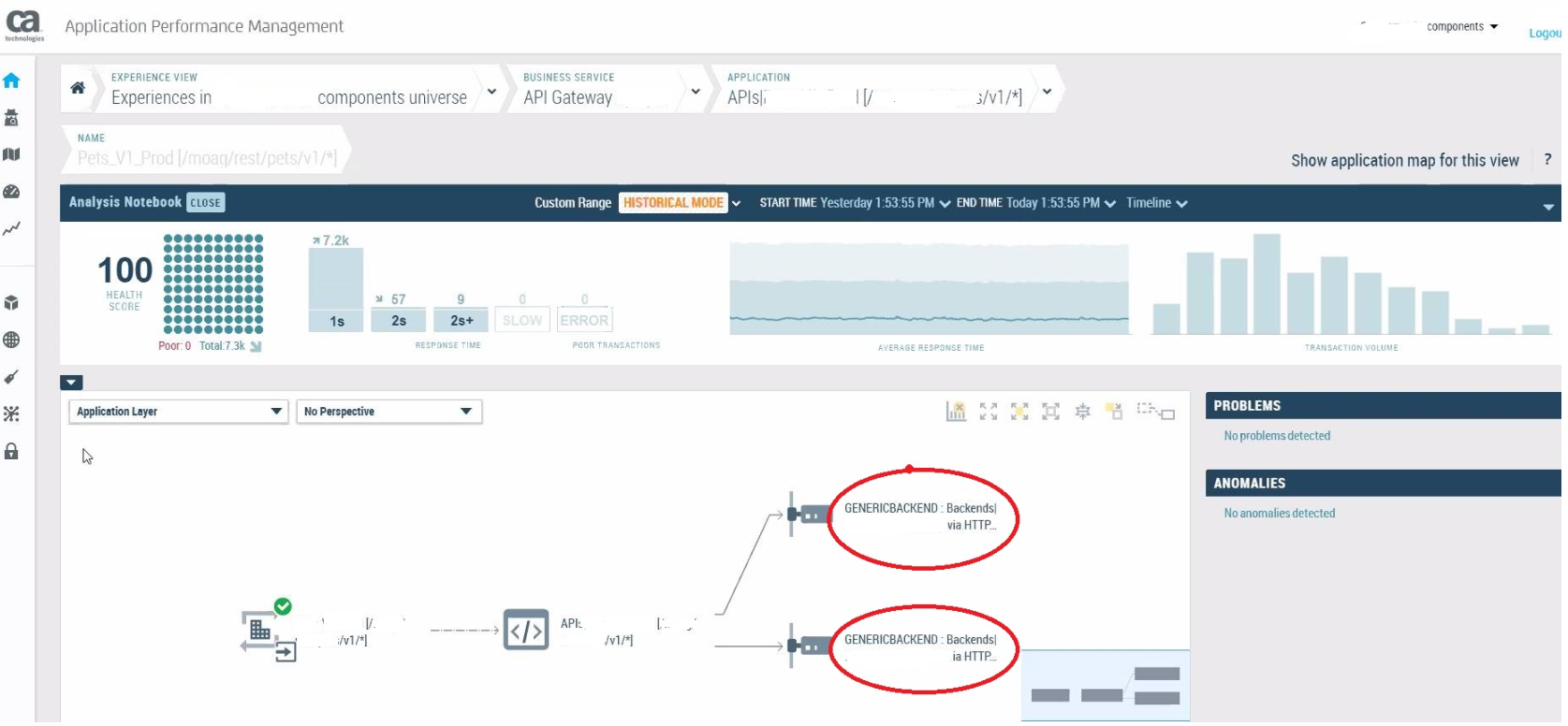

We have installed the api gateway epagent (precision api monitoring) and it is integrated with the APM server. We have noticed one issue that in the APM MAP view when investigating APIs, we cannot see the actual backend service endpoint url configured in the https routing assertion in the gateway policy. However, we manage to see the backend url for a previous https routing assertion which first retrieves a token from a token URL from the backend.

Environment

Release : 10.7.0

Component : APM Agents

Cause

This is issue due to configurations/settings on api gateway side. CA api gateway plugin for EPAgent is not forwarding information to EPAgent, thus we see this issue in APM MAP.

Resolution

Implemented the following workaround within api gateway by using 1 var assignment instead of few.

If you need further help, please contact CA api gateway support team.
